5. If you want to reinstall the rear panel, execute the steps in reverse.
Remoce Power Module
The following process is describes the removal and replacement of power module.
Precondition
• To prevent static damage to the components while working on the instrument, wear properly grounded anti-static
wristbands and foot bands, and use anti-static pads in a tested anti-static environment.
• Take down the rear panel.
• Remove the rear module.
Steps

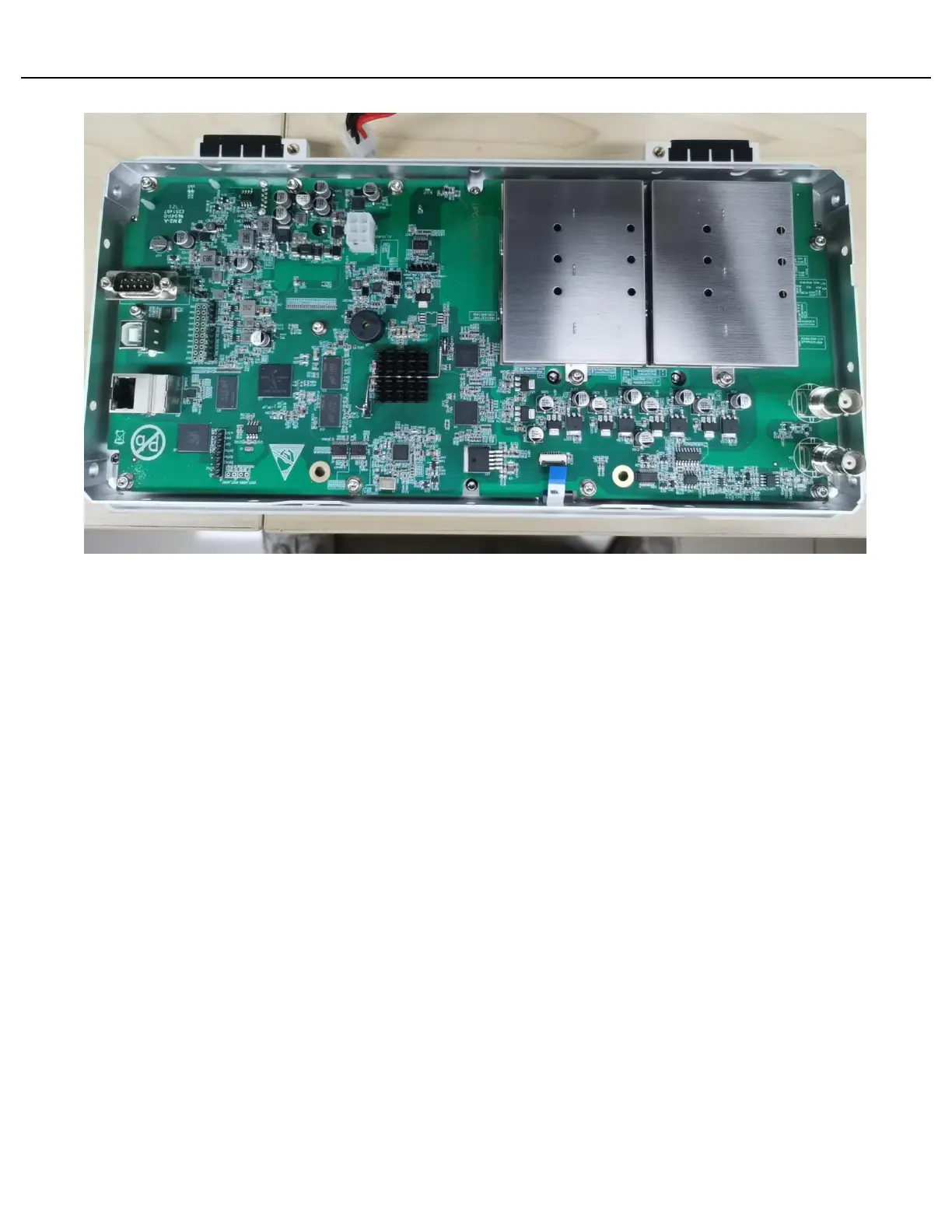

1. Use T10 quincunx screwdriver to move four screws from the rear panel and take down the power cover.
To Next Page
