Service Manual UPO1000X Series
Instruments.uni-trend.com

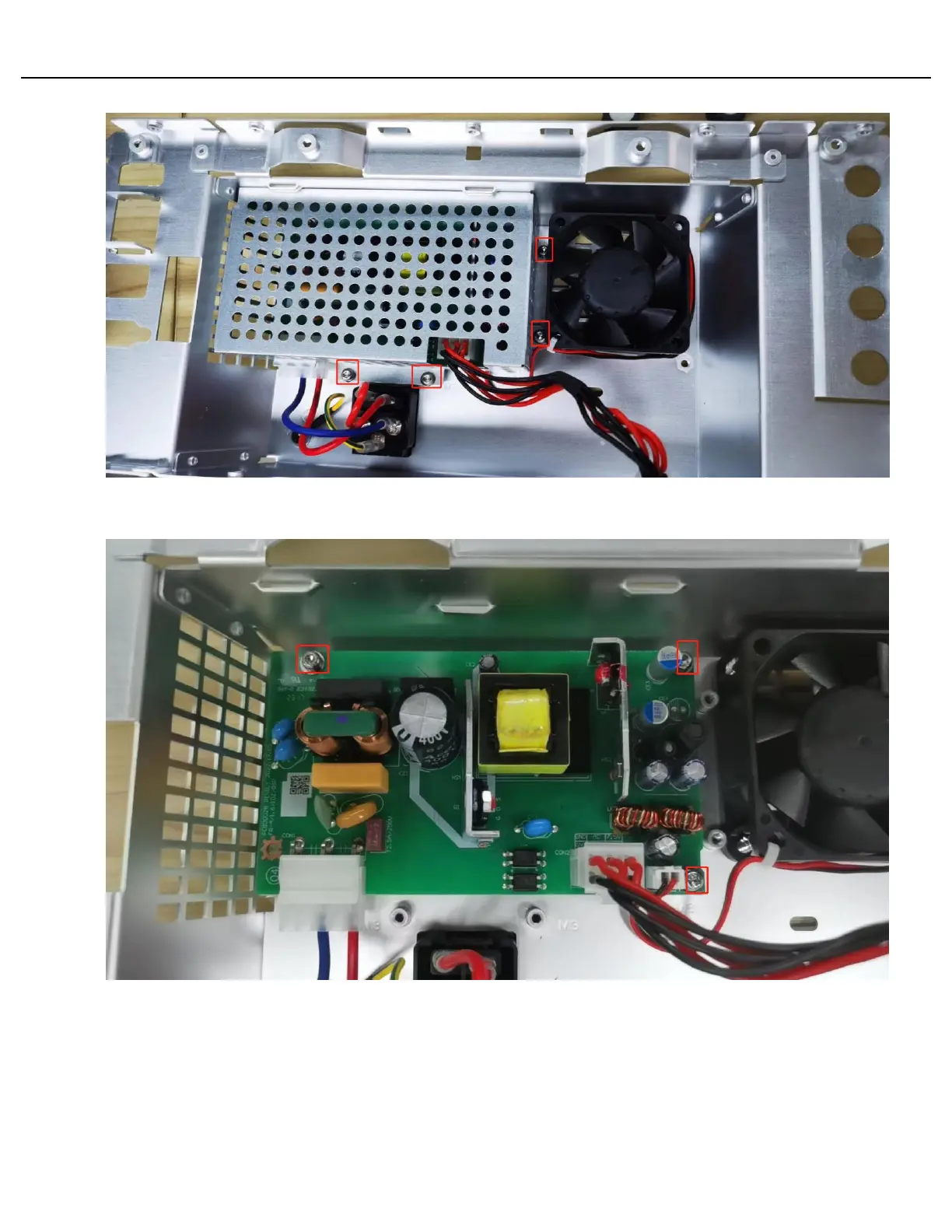

2. Plug out the power cable and fan’s power cable, use T10 quincunx screwdriver to move three screws on power
module and take down the power module.
3. If you want to reinstall the rear panel, execute the steps in reverse.
Remove Fan
The following process is describes the removal and replacement of power module.
Precondition
