• To prevent static damage to the components while working on the instrument, wear properly grounded anti-static
wristbands and foot bands, and use anti-static pads in a tested anti-static environment.
• Take down the rear panel.
• Remove the rear module.
• Remove the power cover.
Steps

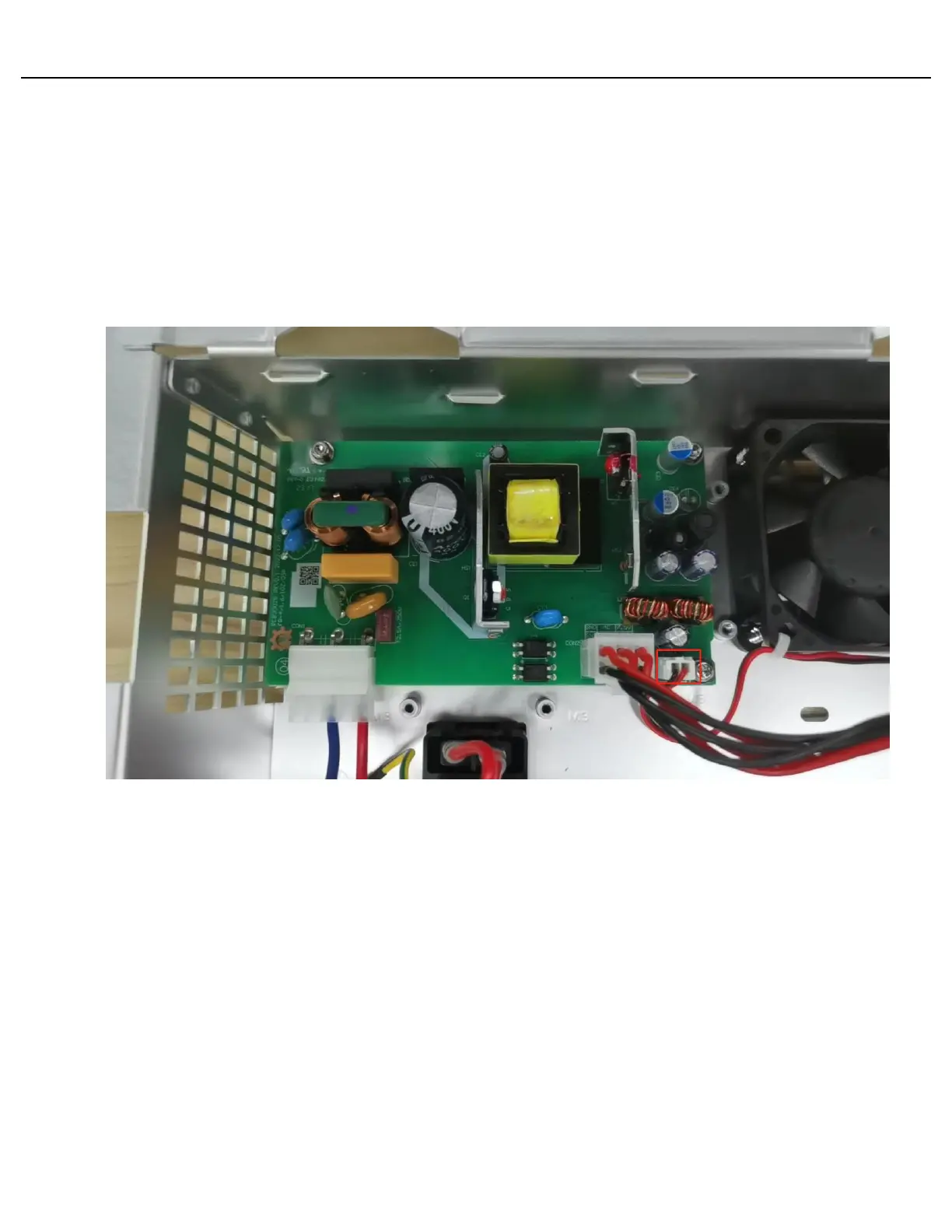

1. Disconnect the fan’s cable from power supply.
2. Use T15 quincunx screwdriver to move four screws on four sides and take down the fan.
