Service Manual UPO1000X Series
Instruments.uni-trend.com
21
/
31

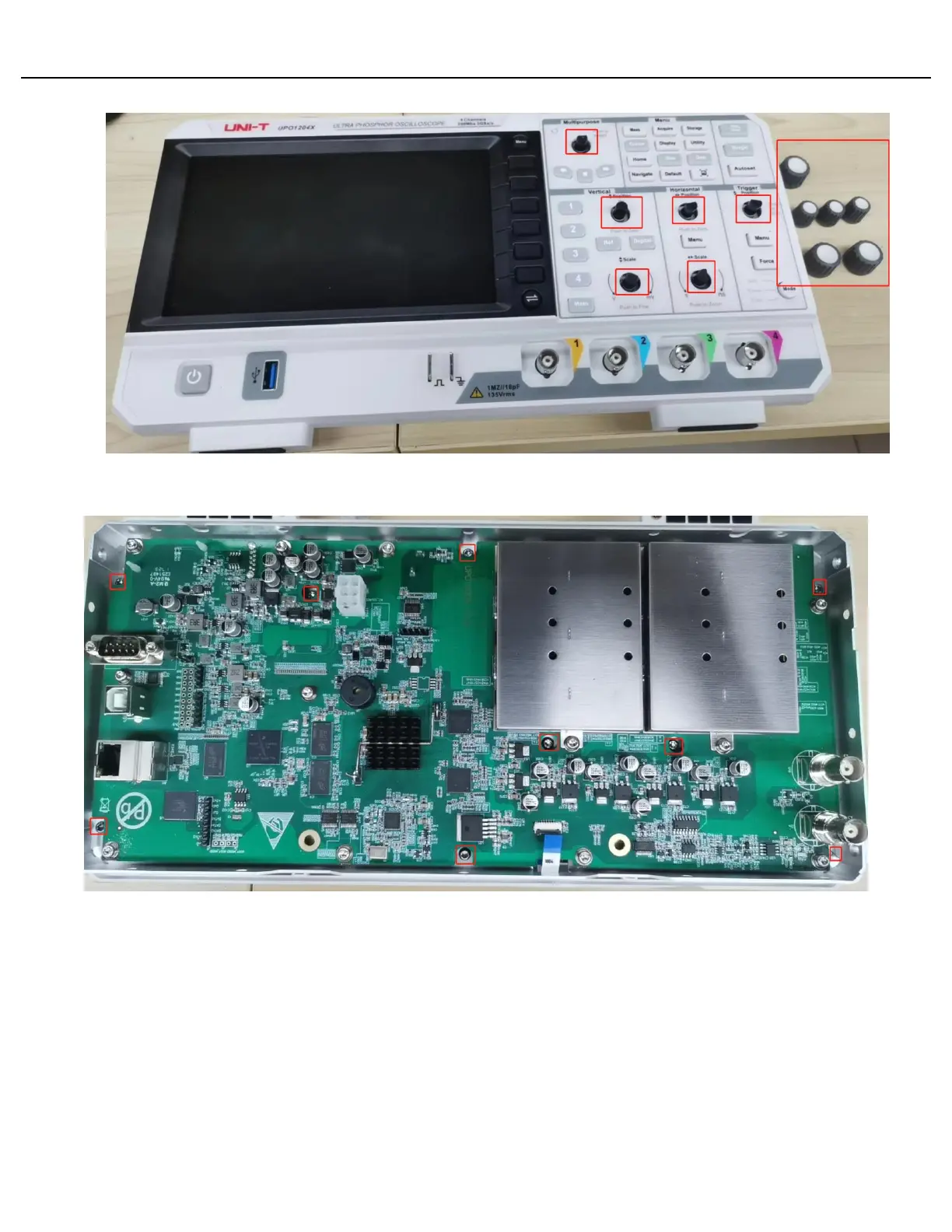

2. Use T10 quincunx screwdriver to move nine screws and take down the front cover.
3. If you want to reinstall the rear panel, execute the steps in reverse.
Remove Screen
The following process is describes the removal and replacement of screen.
Precondition
• To prevent static damage to the components while working on the instrument, wear properly grounded anti-static
wristbands and foot bands, and use anti-static pads in a tested anti-static environment.
• Take down the front panel.
Steps
