G.Make Measurements(9)
7. Transistor hFE Measurement (see figure 8)
1) Check that the transistor is
PNP or NPN type.
2) Connect the transistor to be
measured to the corresponding
jacks.
3) LCD display hFE reference value.
4) Measuring condition:Ibo 10µA,
Vce 3V

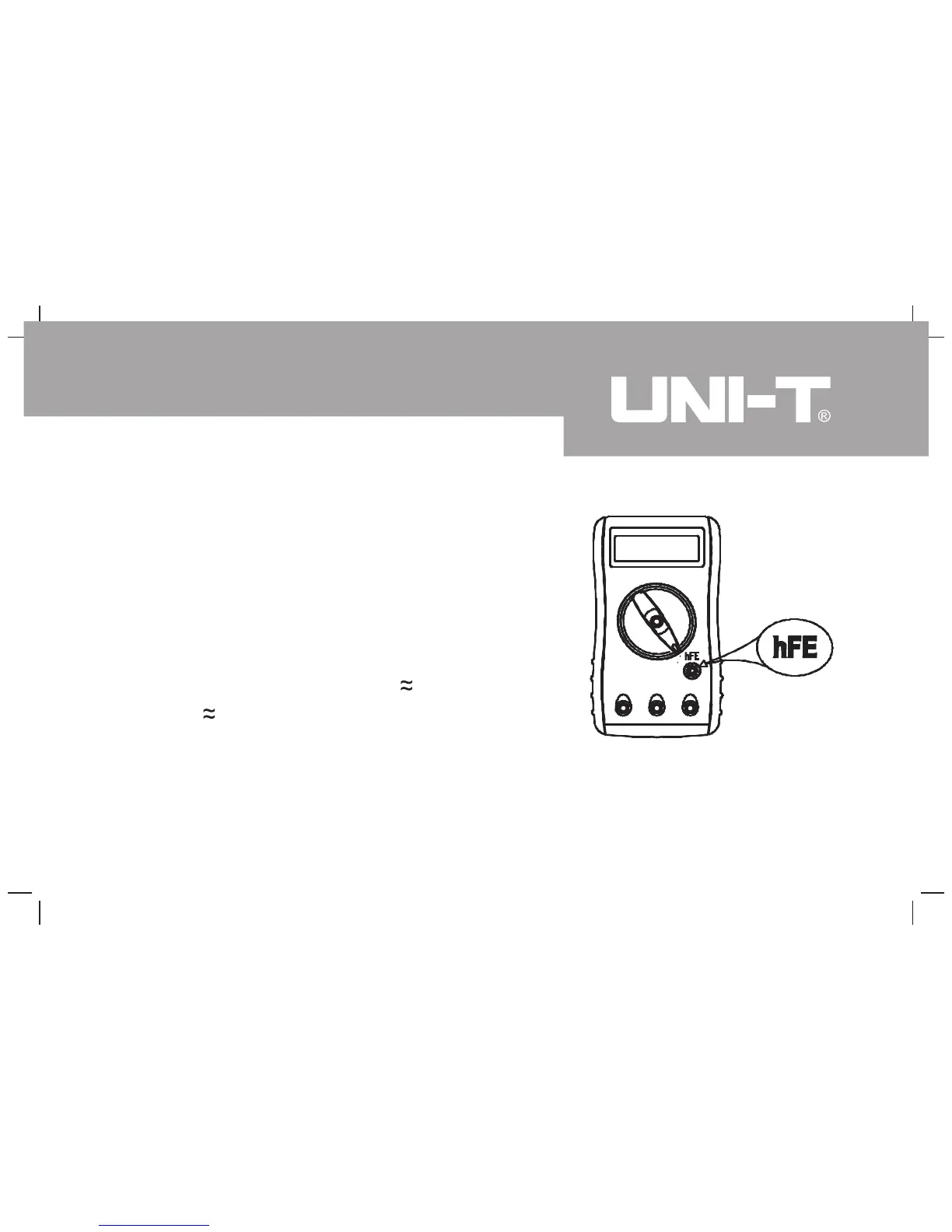

(figure 8)
25
Model UT30B/C/D/F: OPERATING MANUAL
