UNI-T UT50B User Manual

2. Insert the red test lead into the µAmA (The Model
UT50B/UT50C) or 20A terminal and the black test
lead into the COM terminal.
3. Set the rotary switch to an appropriate measurement
position in A range.
4. Break the current path to be tested. Connect the red
test lead to the more positive side of the break and
the black test lead to the more negative side of the
break.
5. Turn on power to the circuit. The measured value
shows on the display.
Measurement Operation(5)
Note
l If the value of current to be measured is unknown,
use the maximum measurement position (20A) and
20A terminal, and reduce the range step by step until
a satisfactory reading is obtained.
l When current measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test.

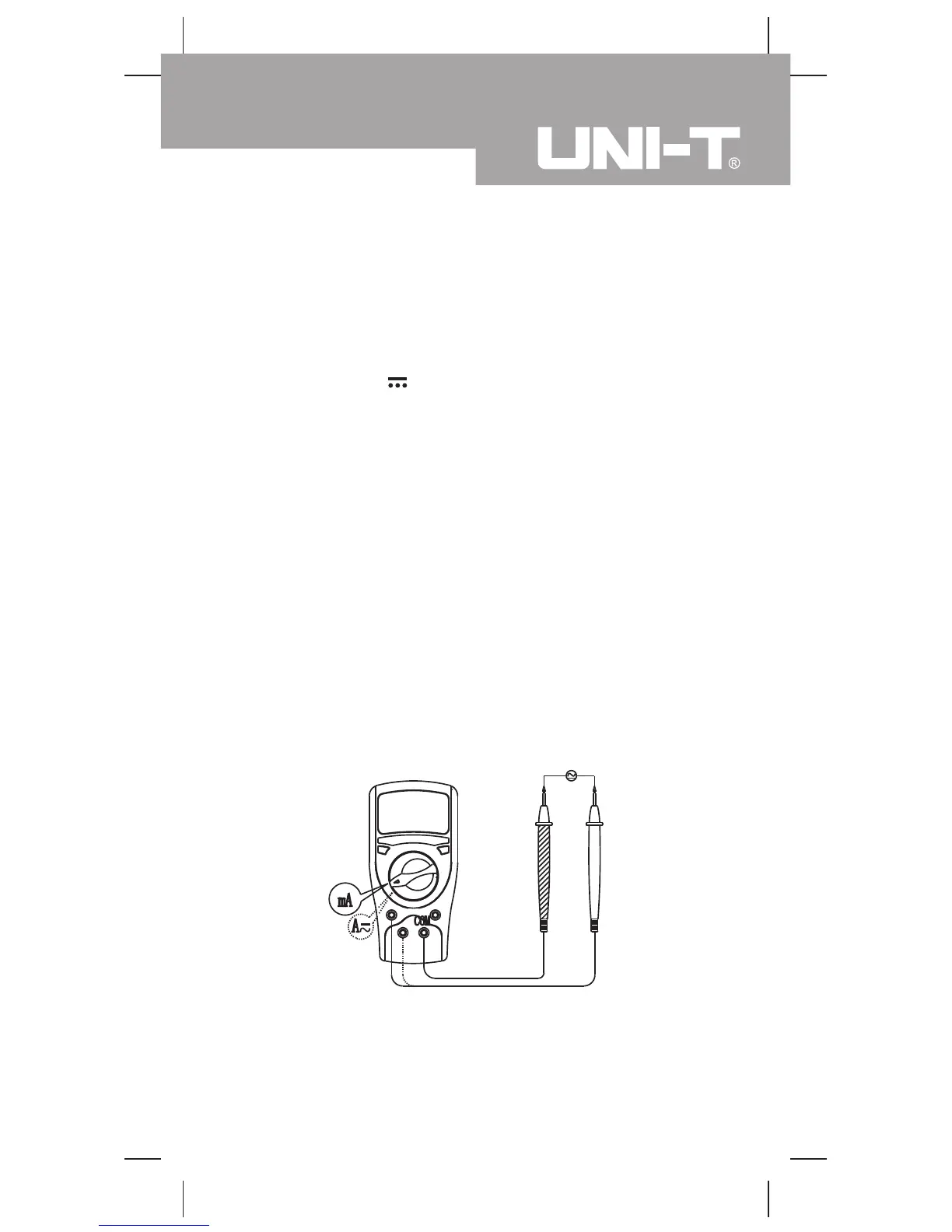

D. AC Current Measurement (see figure 6)
( figure 6)
17
red
black
Model UT50A/B/C: OPERATING MANUAL

UNI-T UT50B Specifications

General

Backlight	Yes
Product type	Digital multimeter
AC current range	0.002 - 20 A
AC voltage range	2 - 750 V
DC current range	0.02 - 20 A
DC voltage range	0.2 - 1000 V
Capacitance range	20 - 100000 nF
Basic accuracy (DC current)	±(0.8%+1)
Basic accuracy (DC voltage)	±(0.5%+1)
Basic accuracy (capacitance)	±(4%+3)
Temperature measurement range	-40 - 1000 °C
Dimensions (WxDxH)	80 x 38.3 x 165 mm
Battery voltage	9 V

Weight and Dimensions

Weight	275 g
