UNI-T UT50B User Manual

21
Note
l When Hz measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test.
G. The Model UT50B/UT50C: Temperature
Measurement (see figure 9)
Warning
To avoid harm to you or damages to the Meter, do
not attempt to measure voltages higher than 60V in
DC or 30V rms in AC although readings may be
obtained.
The temperature measurement range is from -40
o
C~
1000
o
C or -40
o
F~1832
o
F. To measure temperature,
connect the Meter as follows:
Note
l The Meter automatically displays the temperature
value inside the Meter when there is no temperature
probe connection.
Measurement Operation(9)
1. Insert the red temperature into the VΩ terminal
and the black temperature probe into the COM terminal.
2. Set the rotary switch to
o
C or
o
F.
3. Place the temperature probe to the object being
measured.
The measured value shows on the display.

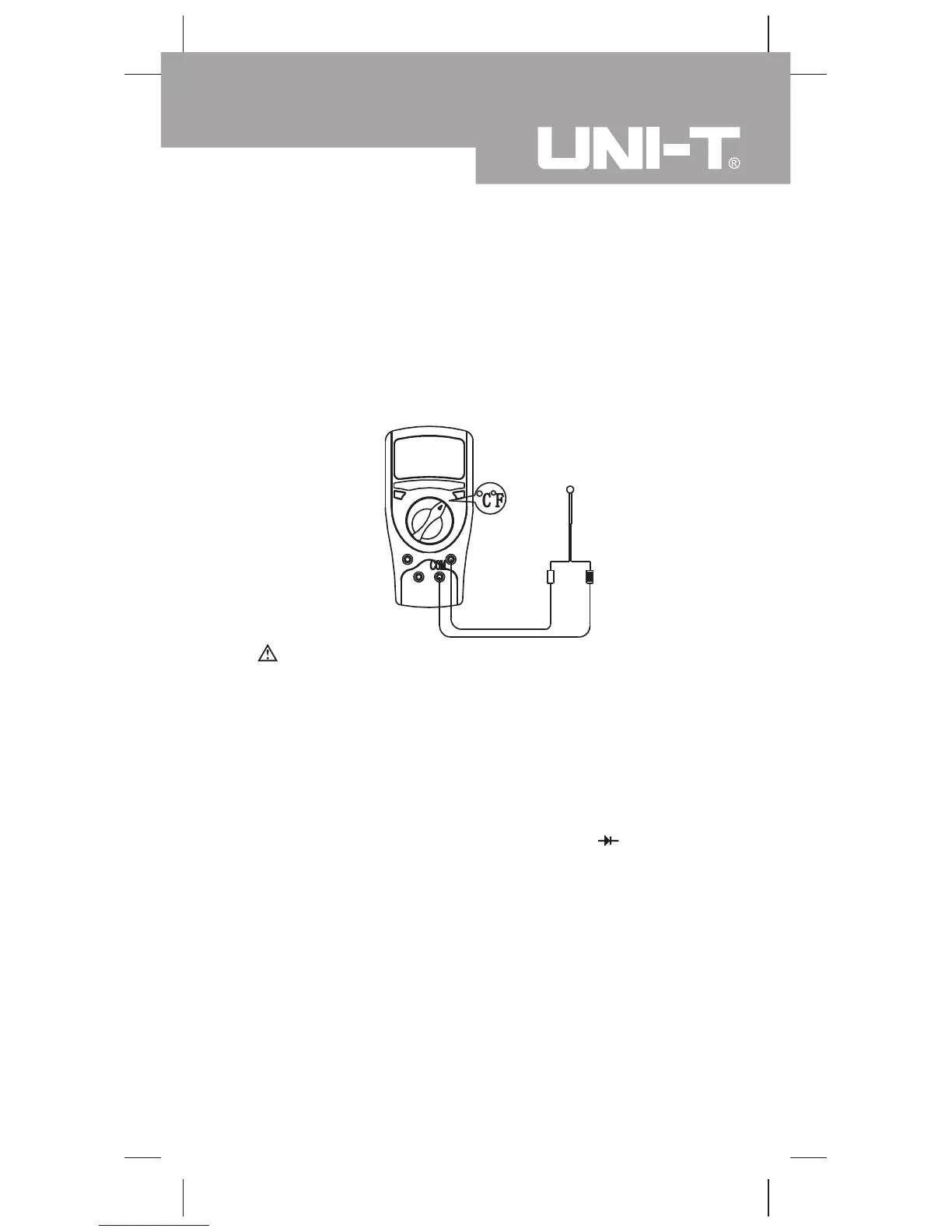

( figure 9)
Model UT50A/B/C: OPERATING MANUAL

UNI-T UT50B Specifications

General

Backlight	Yes
Product type	Digital multimeter
AC current range	0.002 - 20 A
AC voltage range	2 - 750 V
DC current range	0.02 - 20 A
DC voltage range	0.2 - 1000 V
Capacitance range	20 - 100000 nF
Basic accuracy (DC current)	±(0.8%+1)
Basic accuracy (DC voltage)	±(0.5%+1)
Basic accuracy (capacitance)	±(4%+3)
Temperature measurement range	-40 - 1000 °C
Dimensions (WxDxH)	80 x 38.3 x 165 mm
Battery voltage	9 V

Weight and Dimensions

Weight	275 g
