TRAVEL LEVER STAND
LOCK LEVER
STAND LEVER
TRAVEL LEVER
CRANE OPERATION POSITION TRAVEL POSITION STOWAGE POSITION
Mode switch
Power lamp
E-stop switch
Key switch
Speed selector switch
Horn (Start) switch
Speed lever
Boom Extending/Retracting (P ON/OFF)
(Extension/Retraction of outrigger ②)
Selector
switches
Storing hook
Boom raising/lowering
(Extension/Retraction of outrigger
④)
Slewing C.C.W./C.W.
Engine Start/Stop
(Extension/Retraction
of outrigger ①)
Hook Hoisting/Lowering
(Extension/Retraction of outrigger
③)

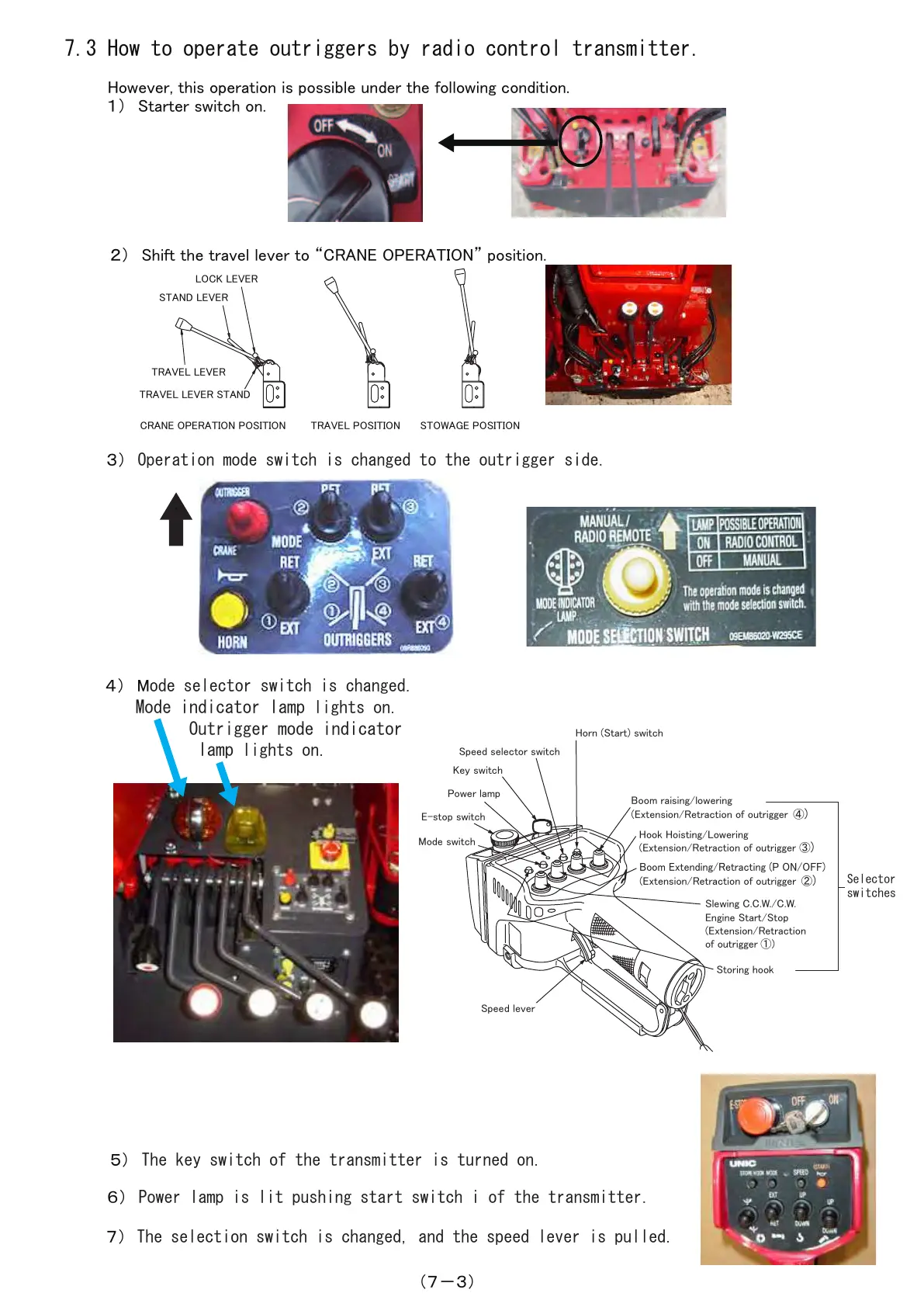

7.3
How to operate outriggers by radio control transmitter.
However, this operation is possible under the following condition.
１） Starter switch on.
２） Shift the travel lever to “CRANE OPERATION” position.
３）
Operation mode switch is changed to the outrigger side.
４） Mode selector switch is changed.
Mode indicator lamp lights on.
Outrigger mode indicator
lamp lights on.
５）
The key switch of the transmitter is turned on.
６） Power lamp is lit pushing start switch i of the transmitter.
７） The selection switch is changed, and the speed lever is pulled.
（７－３）
