TRAVEL LEVER STAND
LOCK LEVER
STAND LEVER
TRAVEL LEVER
CRANE OPERATION POSITION TRAVEL POSITION STOWAGE POSITION
7.2

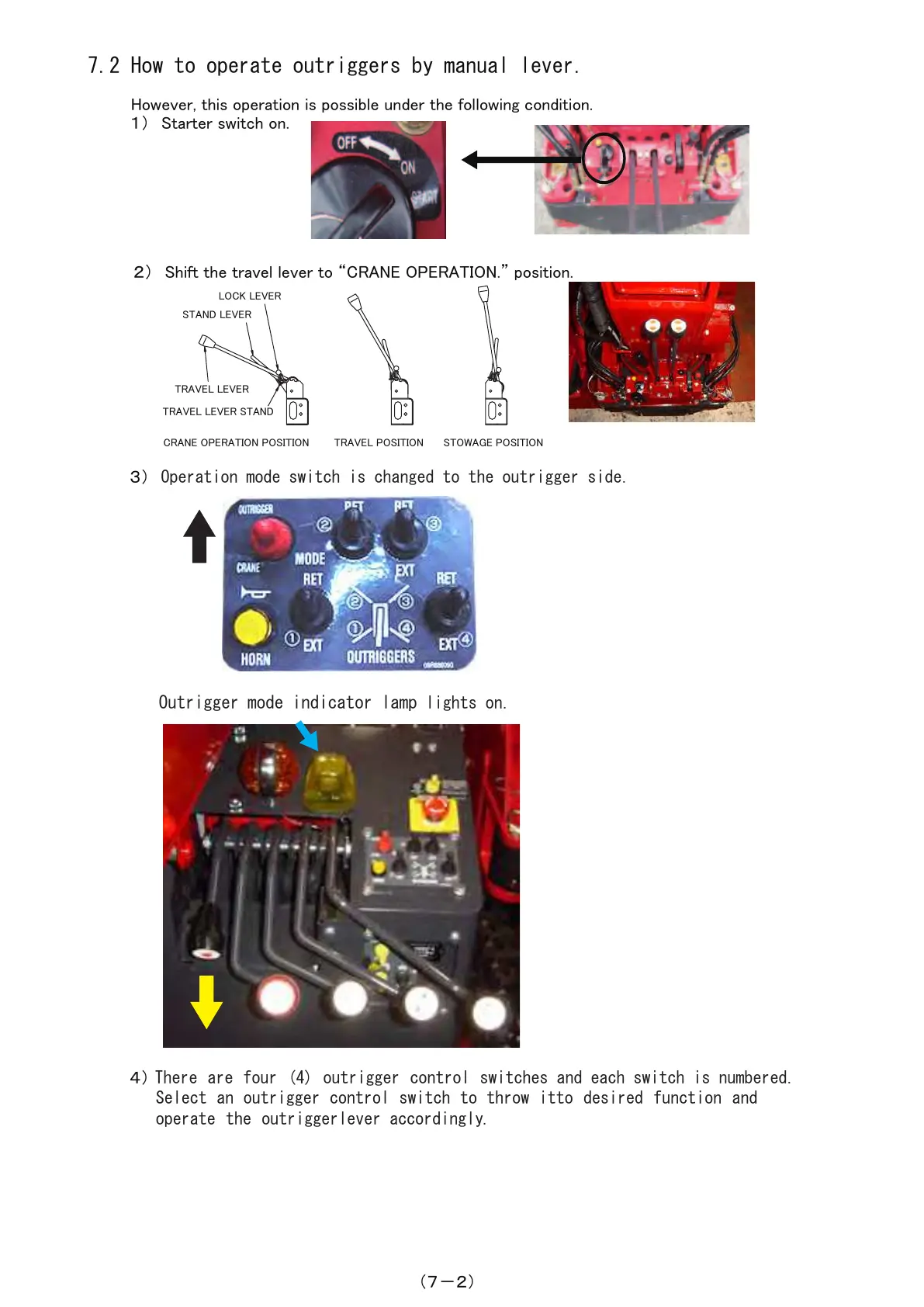

How to operate outriggers by manual lever.
However, this operation is possible under the following condition.
１） Starter switch on.
２） Shift the travel lever to “CRANE OPERATION.” position.
３）
Operation mode switch is changed to the outrigger side.
Outrigger mode indicator lamp lights on.
４） There are four (4) outrigger control switches and each switch is numbered.
Select an outrigger control switch to throw itto desired function and
operate the outriggerlever accordingly.
