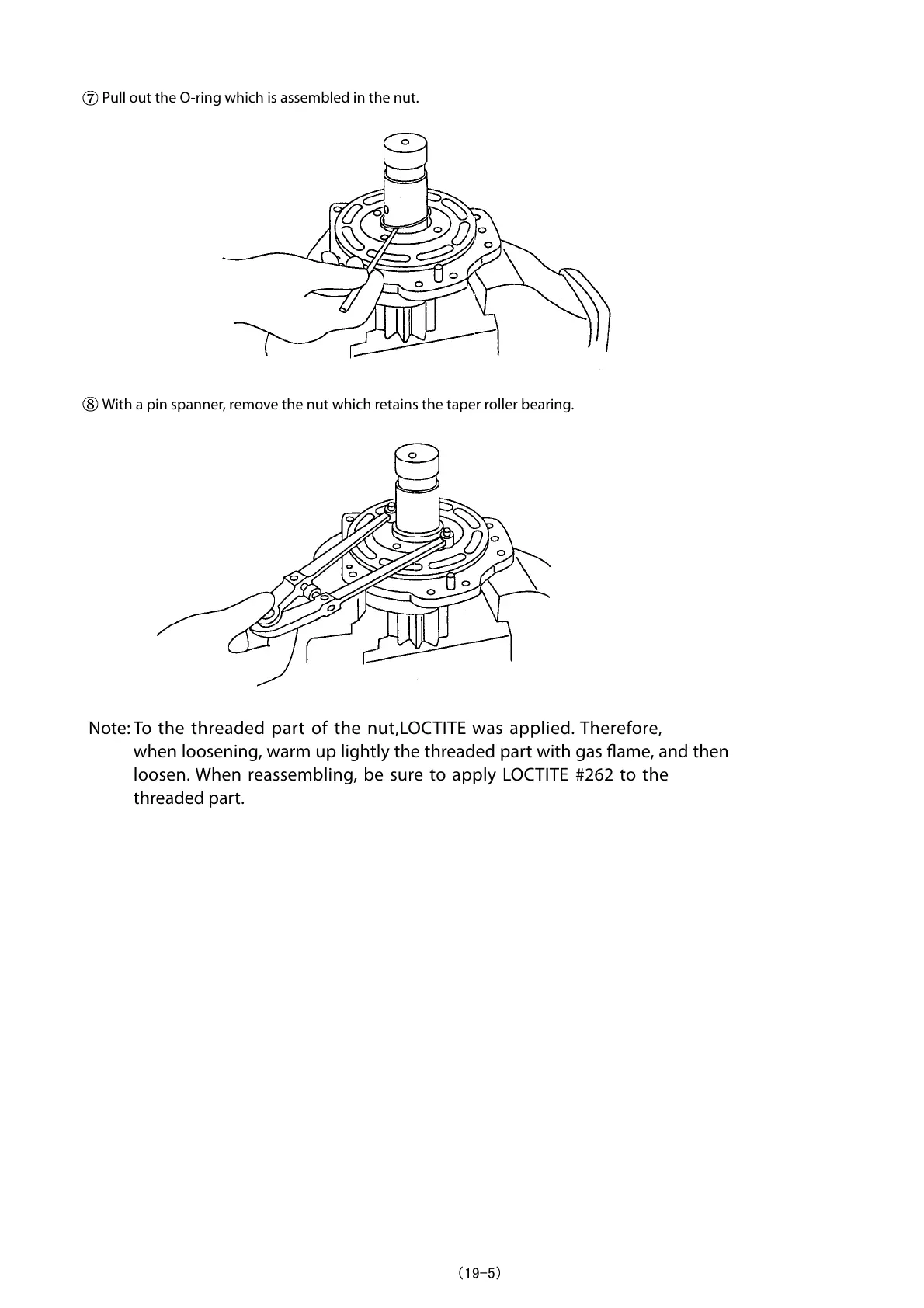

Pull out the O-ring which is assembled in the nut.
With a pin spanner, remove the nut which retains the taper roller bearing.
Note: To the threaded part of the nut,LOCTITE was applied. Therefore,
when loosening, warm up lightly the threaded part with gas ame, and then
loosen. When reassembling, be sure to apply LOC
TITE #262 to the
threaded part.
19-5
