２󲥽．１ Turntable Mounting Procedures
１ Install the slewing reduction gear to the base.
２ Set the turntable on the base to screw-in the bolts for mounting turntable lightly.
３ Insert the thickness gauge(0.1～0.2mm)into the space between the turntable gear
and the pinion gear,and press strongly the turntable to the pinion gear.
４ So as not to part from the turntable and the pinion gear,it tightens with the
specified torque in the order of tightening the installation bolt.
５ After it assembles it, grease is painted on the gear tooth combination side.
S
Back Front
"Ｓ"Mark(Soft zone)Position
Tempered bolt
Slewing reduction
gear ass'y
Bolt
Pinion gear
Turn table
After assembling,
apply grease to
engaging tooth
surfaces of the gears.

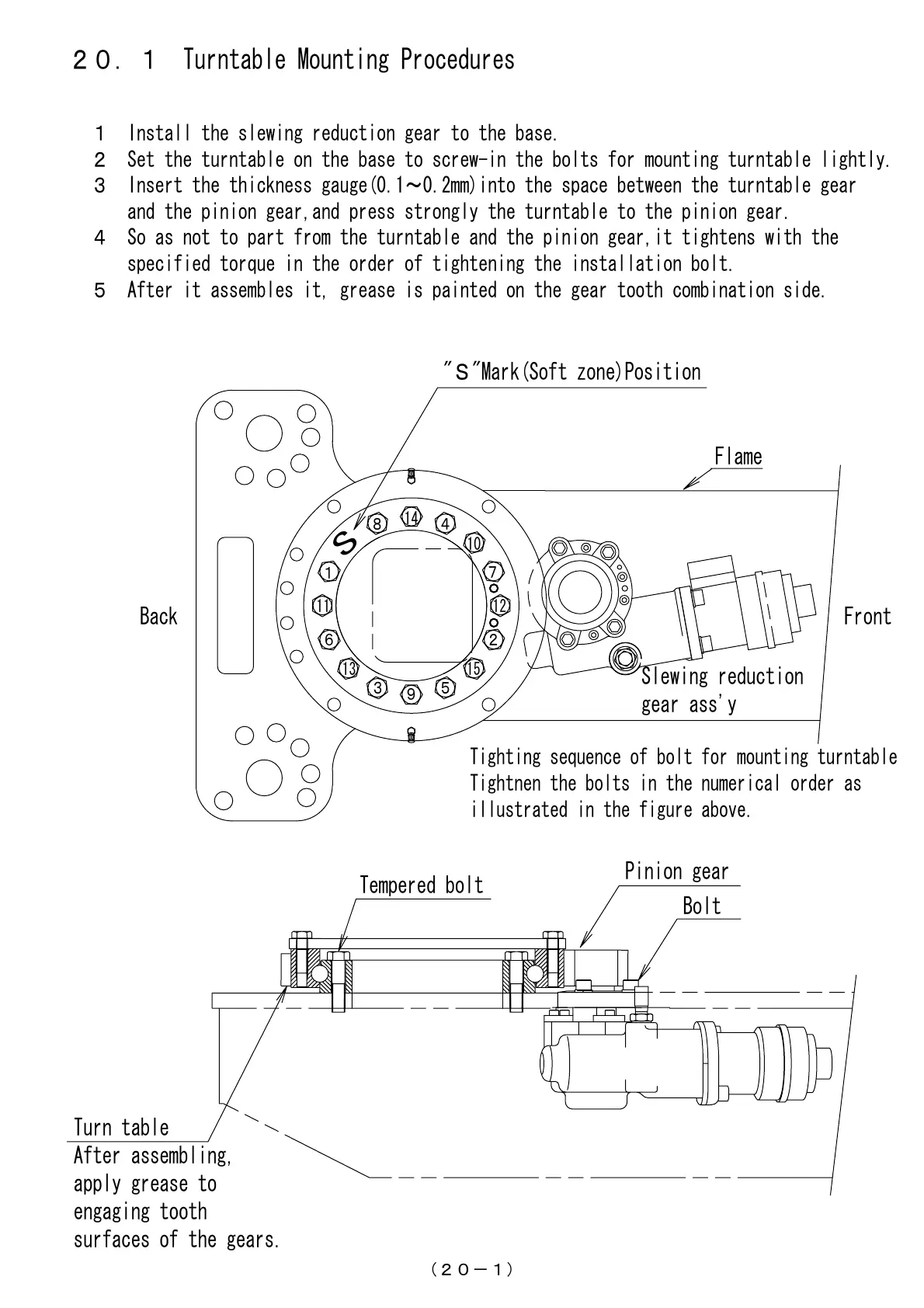

󲥵２󲥽－１）
Tighting sequence of bolt for mounting turntable
Tightnen the bolts in the numerical order as
illustrated in the figure above.
１
２
３
４
５
６
７
８
９
10
11 12
13
14
15
