Unical ELLPREX Series User Manual

14
Detail 1 Detail 2
Detail 4
Detail 3
hinges side fixing side
Detail 4
Detail 1
10
9
8
7
Detail 2
8
7
Detail 3
10
9
11 12 11 12
2.6.4 - IMPORTANT NOTE
Before opening the furnace door it is
necessary to adopt the following precautions:
- Close the fuel cock (oil or gas) to the burner.
- Cool down the boiler by keeping the water
circulating through it, and only then switch
off the power.
- Put on the boiler a Warning notice with the
following text: DO NOT USE, BOILER
UNDER SERVICE, OUT OF ORDER.

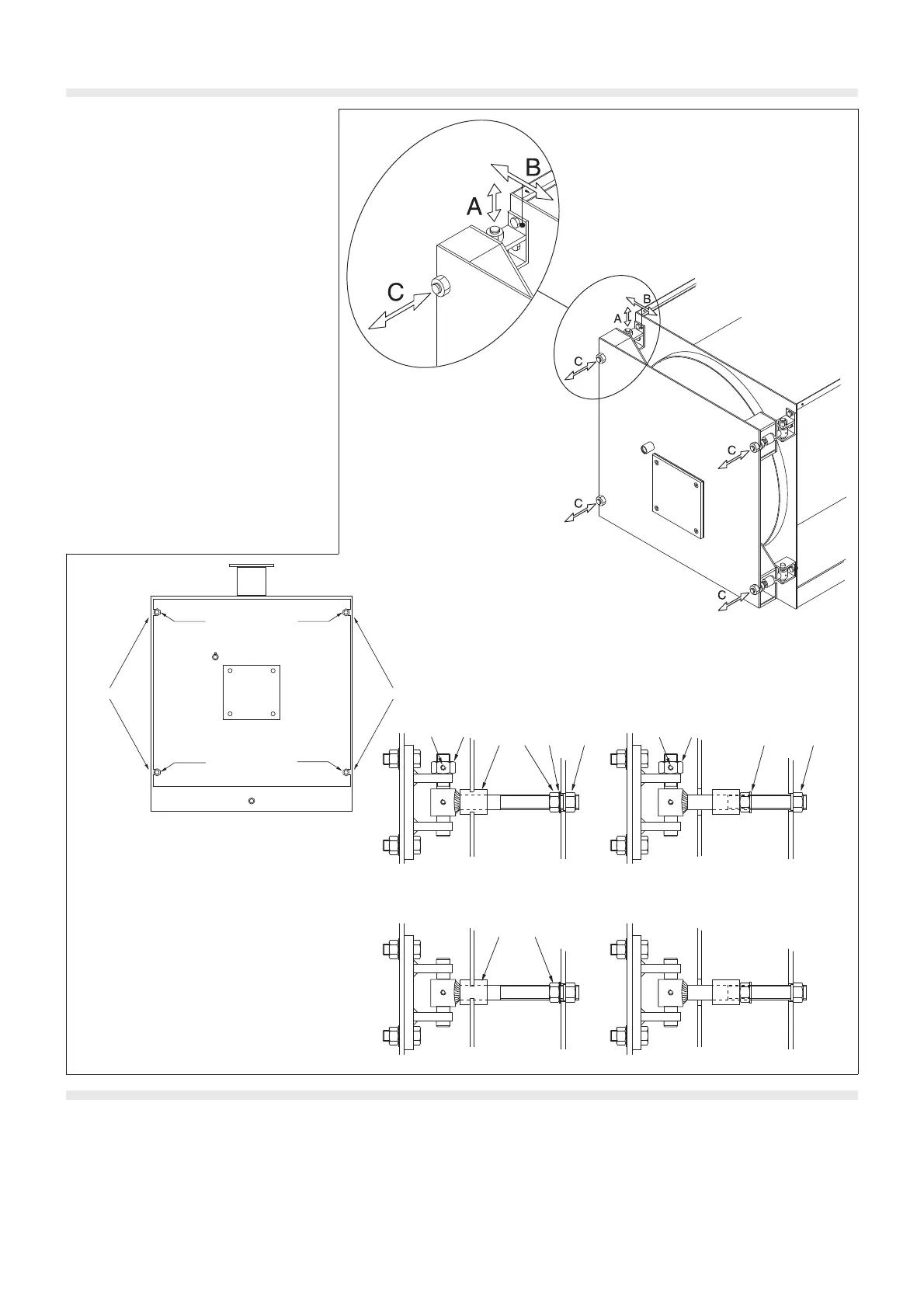

2.6.3 - BOILERS “ELL 1100-ELL 6000”
For all these models the hinging and the fixing
of the door are made according to the schema
of fig. 19.
In these cases the two hinges on the L.H. side
are normally used as rotating hinges (from
Right to Left), whilst the two ones on the R.H.
side are used as closing hinges.
Exactly the contrary will happen when the door
is hinged on the R.H. side and the door needs
to be opened from Left to Right.
To get the reversion of the opening it is
sufficient to move the bushing support of the
door.
On the door of these models of boiler the
following adjustments are possible:
A) Adjustment in vertical way: is possible by
means of rotation of nut after removal of
the grub screw.
B) Adjustment in transversal way: is
possible only by loosening the hinges fixed
to the front tube plate of the boiler and
moving them a little bit sidewards.
C) Adjustment in axial way: further
adjustment to the position of the door in
relation to the chamber can be achieved
through adjustment of the nuts (12) and
counternuts (10).
fig. 19
