33
Maintenance instructions
ENGLISH

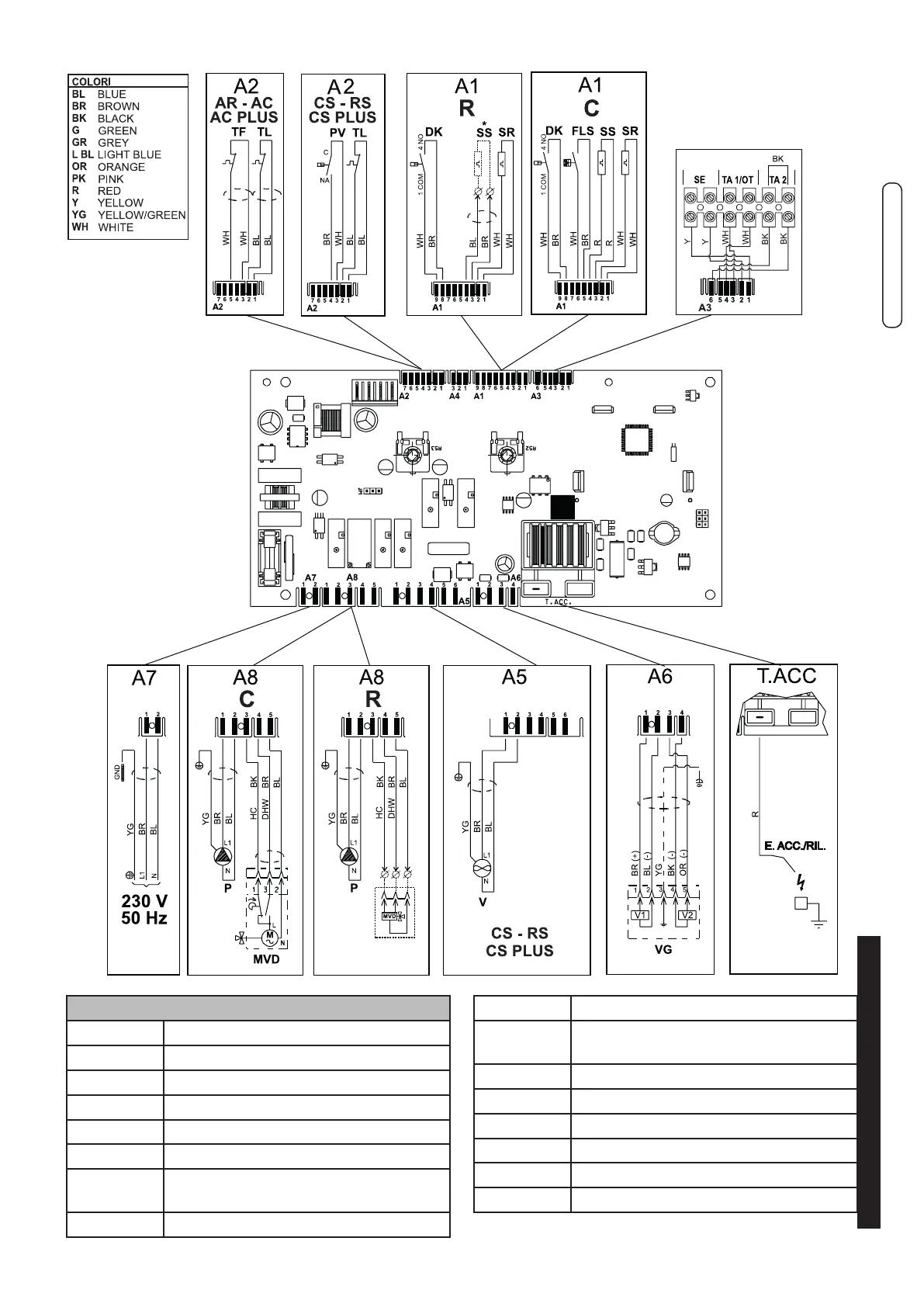

4.5 - WIRING DIAGRAM
Practical connection board
KEY
A1.....A8 Services connectors
DK Waterdeciencysafetypressureswitch
E.ACC./RIL Ignition/detection electrode
FLS Domestichotwaterrequestowswitch
MVD Divertervalvemotor(!DEAPLUSonly)
P Pump
PV FanPressure Switch (!DEAforced draught
only)
SR Heating sensor
SS (*) DHWprobe(!DEACprobe)
TF Fluegas thermostat (!DEAnatural draught
only)
TL Limitthermostat
VG Gas valve
V Fan
SE Externalprobeconnectionterminals
TA1 / OT ModulatingTAconnectionterminals
TA2 On/off TA connection terminals
