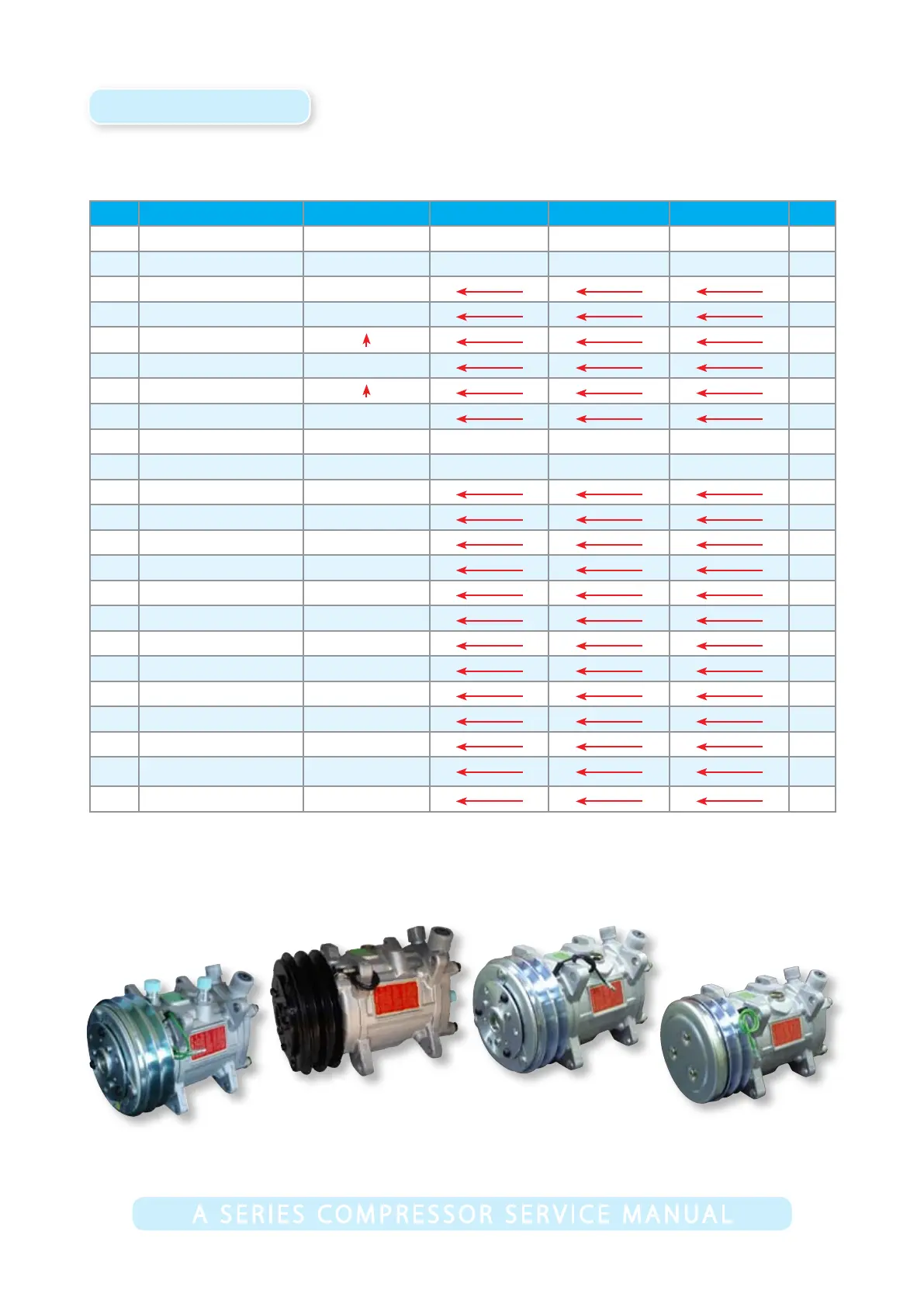

Unicla UP-170 - Component Parts

Compressor parts
3.
Item Description UP90 UP120 UP150 UP170 Qty
1 Body 21404-000690 21404-000700 21404-000102 21404-000092 1
2 Working assy 22010-000250 22010-000240 22010-000220 22010-000230 1
3 Suction valve plate 22602-000120
2
4 Front valve plate 22601-000052
1
5 Rear valve plate
1
6 Front gasket 93204-000060
1
7 Rear gasket
1
8 Lip seal assy 93503-000040
1
8-1 Snap ring 92503-000040B
8-2 Lip seal 92503-000040A
9 Felt seal 11950-10400
1
10 Felt ring 11961-10400
1
11 Plug 13201-000010
1
12 O ring 92501-000120
3
13 O ring 92501-000330
1
14 Rear cap see page 2
1
15 Charge Valve assy (H) 38101-000030
1
16 Charge Valve assy (L) 38101-000020
1
17 H Cap 12901-000030
1
18 L Cap 12901-000020
1
19 Relief valve 38305-000030
1
20 O ring 92501-000060
1
21 Bolt 91915-08035
4
