Bulletin 30-121.2014.04.014
(SAC 37.4255.109.00)
6
Copyright © 2014 Unico, Inc.

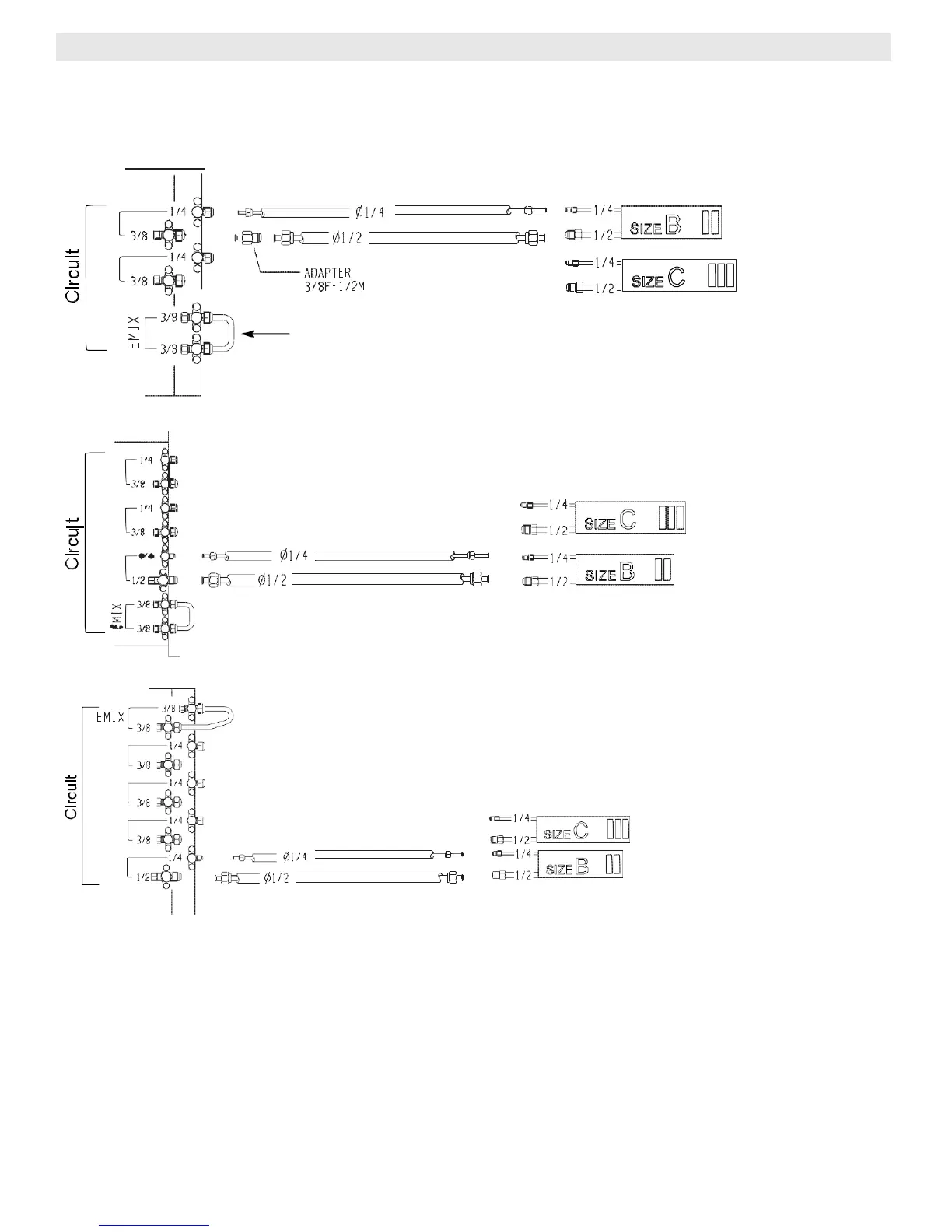

Single-Split (1 Indoor Unit)
For single-split applications, always connect the indoor unit to Circuit “1” of the outdoor unit.
IS18G050
EMIX PORT: SEE EMIX UNIT OR EMIX TANK INSTALLATION MANUAL
IS24G065
IS30G080
4
3
2
1
3
2
1
TUBE CONNECTIONS
1
2
