unicore UM620 Series User Manual

2
2 Reference Circuit Using a Passive Antenna
 When using a passive antenna, a low noise amplifier should be added between
the antenna and the RF_IN of the module in order to ensure the performance of
the system.
 For the RF routing (antenna  LNA  RF_IN), note the 50 Ω impedance matching
 The supply voltage for VBCKP is 1.7 V ~ 3.6 V
VCC 2.7V~3.6V
VBCKP 1.7V~3.6V
RF, Short 50ohm Line
Active Low

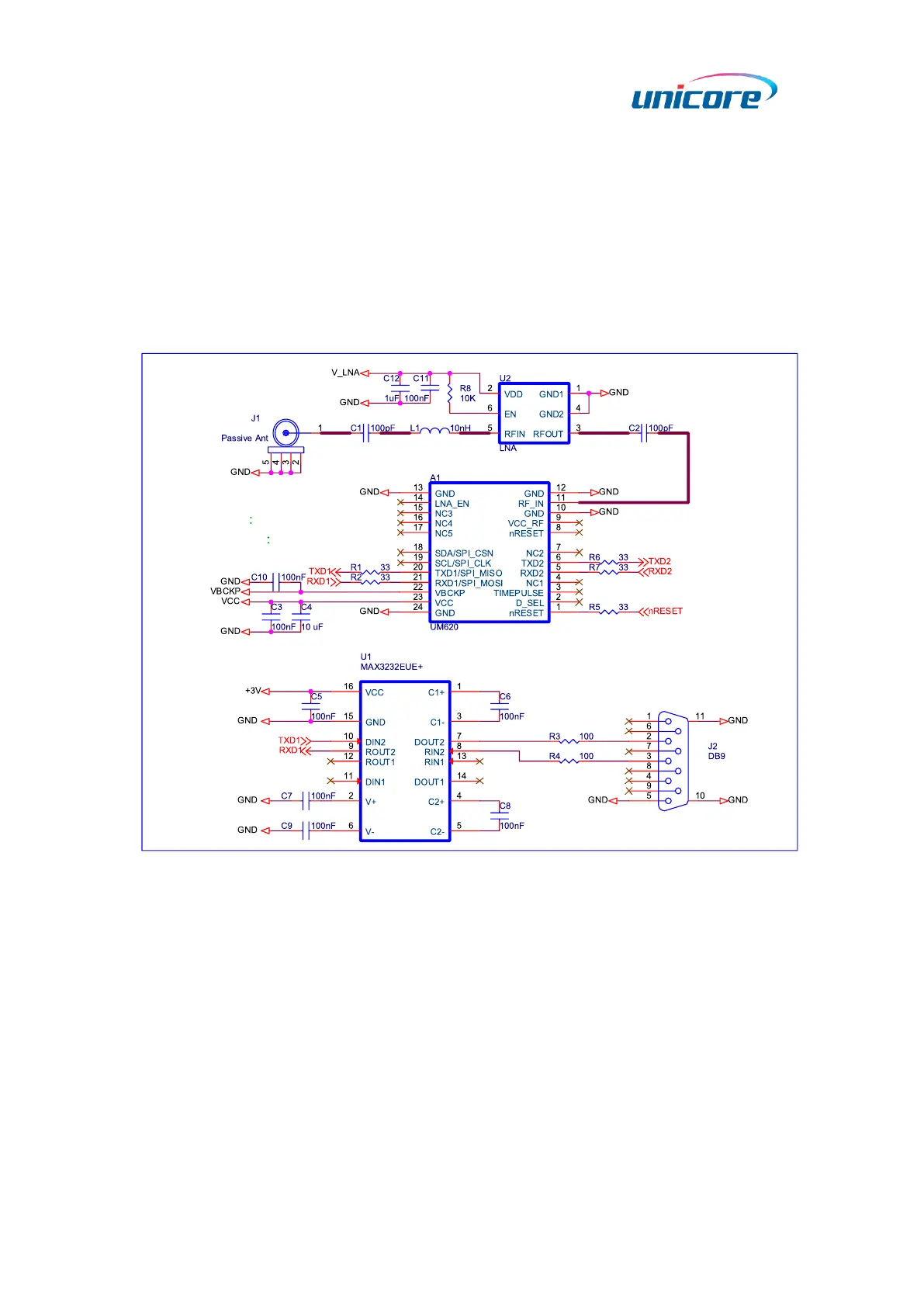

Figure 2-1 Reference Circuit Using a Passive Antenna
