SHB 3
SHB 3

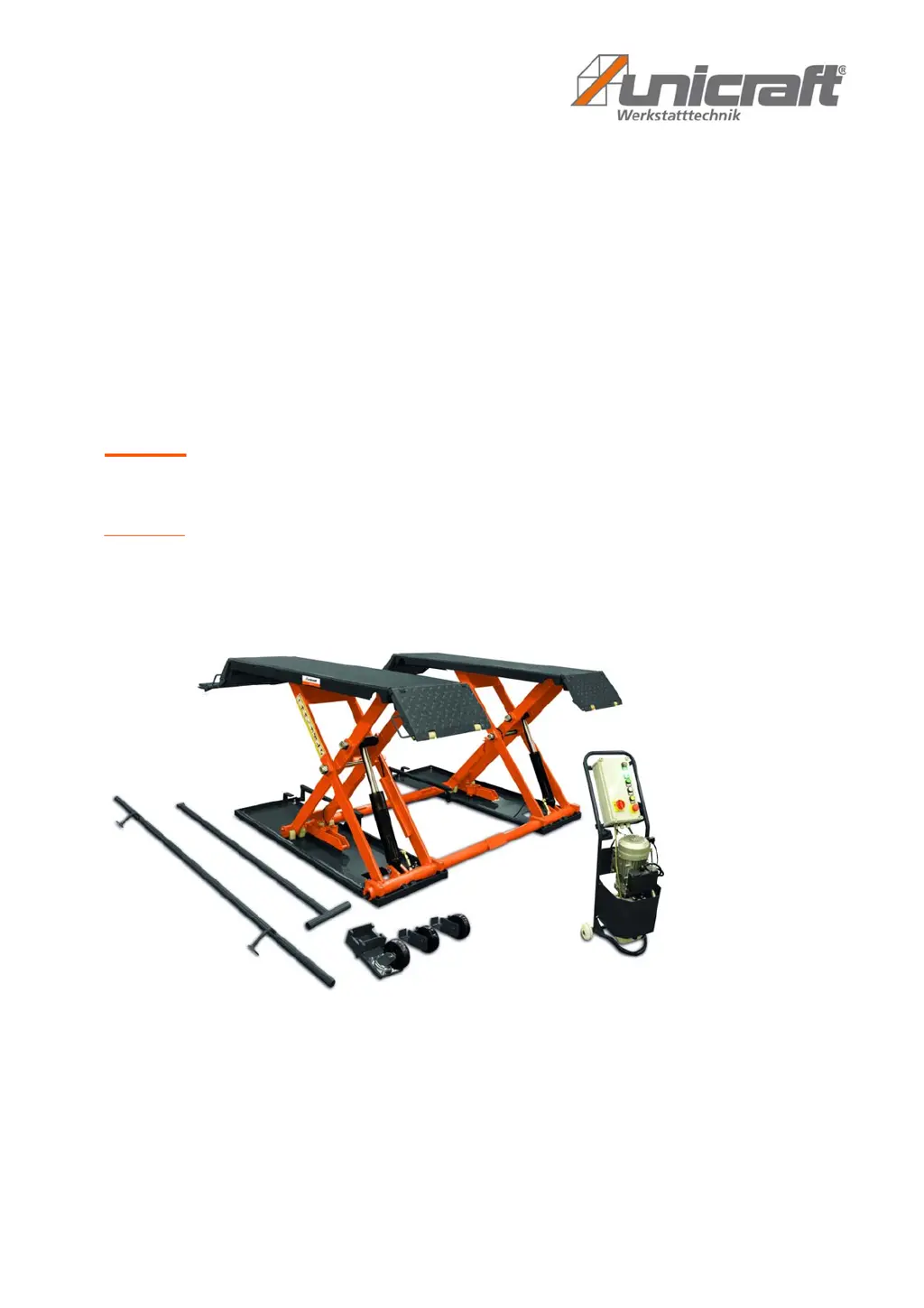

Instruction Manual
Scissor lift
SHB 3

Table of Contents

Questions and Answers

  • A
    Andrew SandersAug 4, 2025
    What to do if engine runs but platforms are not lifted in Unicraft Lifting Systems?
    • J
      Joseph BellAug 4, 2025
      If the engine runs but the platforms aren't lifting, it could be due to several reasons. First, the motor rotation might be in the wrong direction; try changing it. Second, the oil level might be low, so check and top it up if needed. Third, the safety valve could be damaged, requiring a check and possible replacement. Finally, the oil hose might be loose, so inspect and tighten it.
  • W
    Wendy MaciasAug 9, 2025
    Why is the lifting increase too slow in my unicraft SHB 3?
    • A
      Adam MartinAug 9, 2025
      A slow lifting speed can be attributed to several factors. It could be due to a low oil level, so check and top it up if necessary. The pressure relief valve might not be correctly adjusted, requiring an adjustment. The load might be too heavy, in which case you should reduce it. The oil filter could be clogged, so clean or replace it. Finally, the cylinder seal might be defective, requiring a replacement.
  • M
    millschelseyAug 13, 2025
    What to do if platforms move down slowly after lifting with unicraft SHB 3?
    • G
      goodlauraAug 13, 2025
      If the platforms descend slowly after lifting, several issues could be the cause. A hydraulic hose might be leaking, requiring its replacement. A valve could be leaking, needing cleaning or replacement. The hydraulic cylinder might be leaking, in which case replace the seal. There might also be leaks in the pressure relief valve, so clean or replace the valve.
  • J
    Jessica YangAug 19, 2025
    What to do if engine does not run and platforms are not lifted in Unicraft Lifting Systems?
    • D
      Dean JosephAug 19, 2025
      If the engine isn't running and the platforms aren't lifting, it could be due to a defective motor, in which case replace it. Alternatively, the fuse may be defective, so replace the fuse. Finally, the wire connection may be loose, so check the connection.
  • M
    mcolemanAug 23, 2025
    Why is lowering too slowly in unicraft SHB 3 Lifting Systems?
    • C
      courtney53Aug 23, 2025
      If the lowering speed is too slow, it might be because the hydraulic oil is dirty, requiring a change. Another possibility is that the oil hose has jammed, so clean the oil hose and replace if necessary. Lastly, the drain valve might be blocked too much, so open the valve further.
  • L
    Lisa ValenciaAug 29, 2025
    What to do if safety interlock does not open in unicraft SHB 3?
    • S
      Sarah EatonAug 29, 2025
      If the safety interlock fails to open, it could be because the air pressure regulating valve is closed or set too low; in this case, set the air pressure to 5kg/cm2. Another potential cause is a damaged solenoid valve, which would need to be replaced.

Summary

Introduction

Copyright

Details copyright restrictions and intellectual property protection for the manual.

Customer Service

Provides contact information for technical support and dealer assistance.

Limitation of Liability

Outlines manufacturer's liability exclusions for improper use or modifications.

Safety

Safety Symbol Explanation

Explains warning symbols and signal words used to indicate risks and dangers.

Operating Company Obligations

Defines responsibilities for safe operation, training, and maintenance of the equipment.

Staff Qualification Requirements

Specifies qualifications and responsibilities for personnel operating the scissor lift.

Personal Protective Equipment (PPE)

Details essential protective gear like gloves, boots, and clothing for safe operation.

Machine Safety Labels

Emphasizes the importance of visible and understandable safety markings on the lifting platform.

Lifting Platform Warnings

Illustrates and explains various safety notes and warnings attached directly to the lifting platform.

General Safety Regulations

Lists crucial safety rules for installation, operation, and maintenance to prevent injury and damage.

Integrated Safety Devices

Describes built-in safety features such as mechanical safety locks and anti-tipping mechanisms.

Intended Use of Scissor Lift

Predictable Misuse Scenarios

Identifies common ways the scissor lift might be used improperly, leading to hazards.

Residual Risks Identification

Highlights potential dangers that remain even with proper use and safety measures.

Technical Specifications

Machine Type Plate Information

Details specifications and identification information found on the machine's type plate.

Equipment Logistics: Transport, Packaging, Storage

Transport and Delivery Checks

Instructions for checking the lift for transport damage upon delivery.

Packaging Material Disposal

Guidance on the proper disposal and recycling of packaging materials.

Storage Guidelines

Recommendations for storing the scissor lift in a frost-free, dry environment when not in use.

Equipment Description

Assembly and Installation

Installation Site Requirements

Outlines the necessary conditions for the installation location, including surface and ventilation.

Scissor Lift Setup Procedure

Step-by-step instructions for unpacking and positioning the scissor lift at the installation site.

Hydraulic and Electrical System Connections

Electrical Power Connection

Detailed steps and safety precautions for connecting the scissor lift to the electrical power supply.

Hydraulic System Connections

Instructions for connecting the hydraulic lines, pump, and compressed air system.

Post-Installation Testing

Scissor Lift Operation

Control Panel Overview

Explains the function of each button and indicator on the control panel.

Lifting a Load Safely

Step-by-step guide on how to safely lift vehicles using the scissor lift.

Lowering a Load Safely

Step-by-step guide on how to safely lower vehicles after lifting.

Care, Maintenance, and Repair

Cleaning Procedures

Provides instructions for cleaning the scissor lift, including recommended agents and methods.

Maintenance and Repair Guidelines

Outlines general safety rules and procedures for maintenance and repair work.

Scheduled Inspection Intervals

Details the recommended daily, weekly, monthly, and yearly inspection and maintenance tasks.

Lubrication Point Identification

Identifies specific points on the scissor lift that require regular lubrication.

Troubleshooting Common Faults

Disposal and Recycling of Used Equipment

Equipment Decommissioning

Steps for safely decommissioning the machine and removing hazardous materials.

Lubricant and Oil Disposal

Guidance on the proper disposal of hydraulic oils and lubricants.

Municipal Waste Disposal

Information on disposing of the equipment as electronic waste via local collection points.

Spare Parts Information

Ordering Spare Parts Procedure

Details the information required and procedure for ordering replacement parts.

Spare Parts Identification Drawings

Provides diagrams to help identify and select the correct spare parts needed for the machine.

Electrical Circuit Diagram

Hydraulic Circuit Diagram

Compressed Air Circuit Diagram

EC Declaration of Conformity

User Notes

unicraft SHB 3 Specifications

General IconGeneral
Brandunicraft
ModelSHB 3
CategoryLifting Systems
LanguageEnglish
