11
Powering the Camera
1. Insert one end of the USB-C cable to the USB-C port on the camera (at the
back of the camera).
2. Connect the other end of the USB cable into the USB power adaptor.
3. Connect the USB power adaptor into a 240 volt AC (standard indoor) power
outlet.
4. Switch on the plug and allow the camera to power up. The pairing indicator will
flash momentarily.

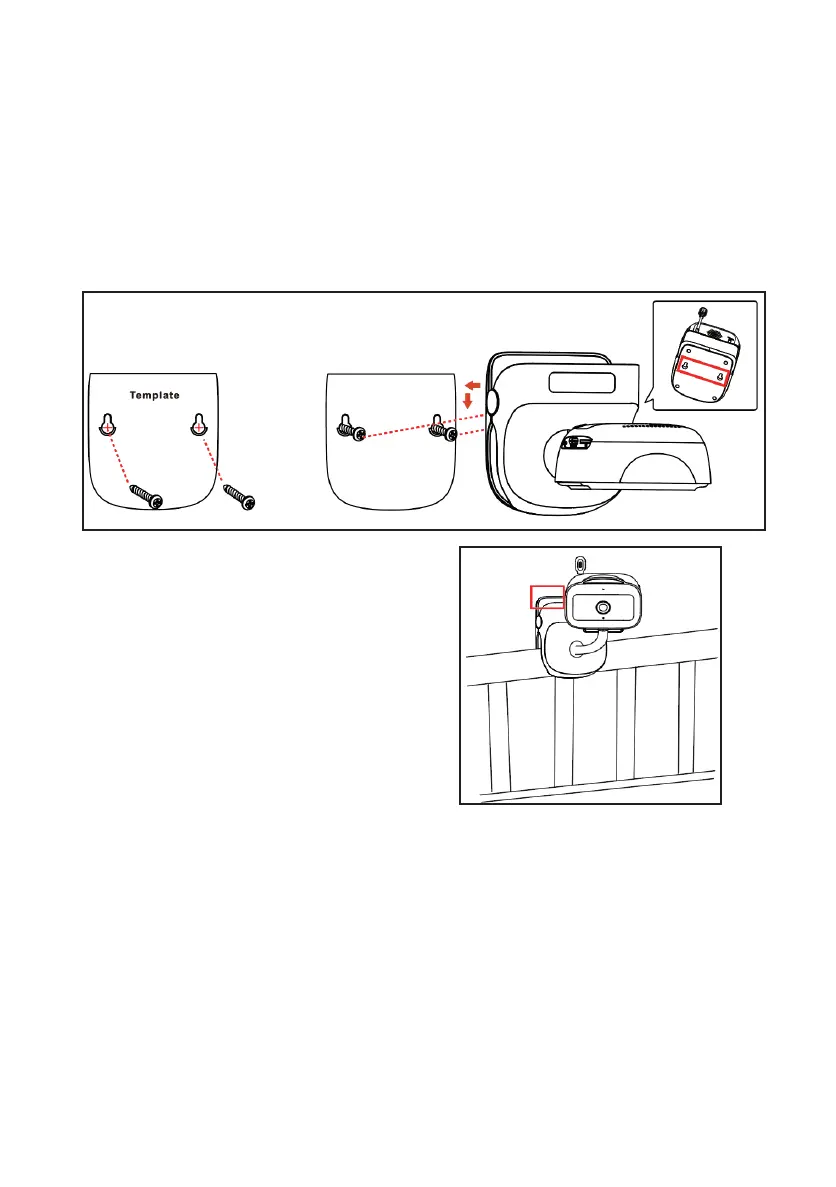

Wall Mount
The camera mounting clip has two slots that t over screws to mount the unit on the
wall.
1. Install the screws to the wall according to the position of the drill template. Do
not tighten the screws to the end, as you need to leave a gap for hanging the
camera.
2. Place the mounting clip over the installed screws and push it downwards,
locking it into place.
3. Adjust the camera as needed.
Clip Mount
Clip the camera on ledges and shelves.
1. Press the mounting clip as shown.
2. Place the unit over the mounting surface
and release.
3. Adjust the camera as needed.
