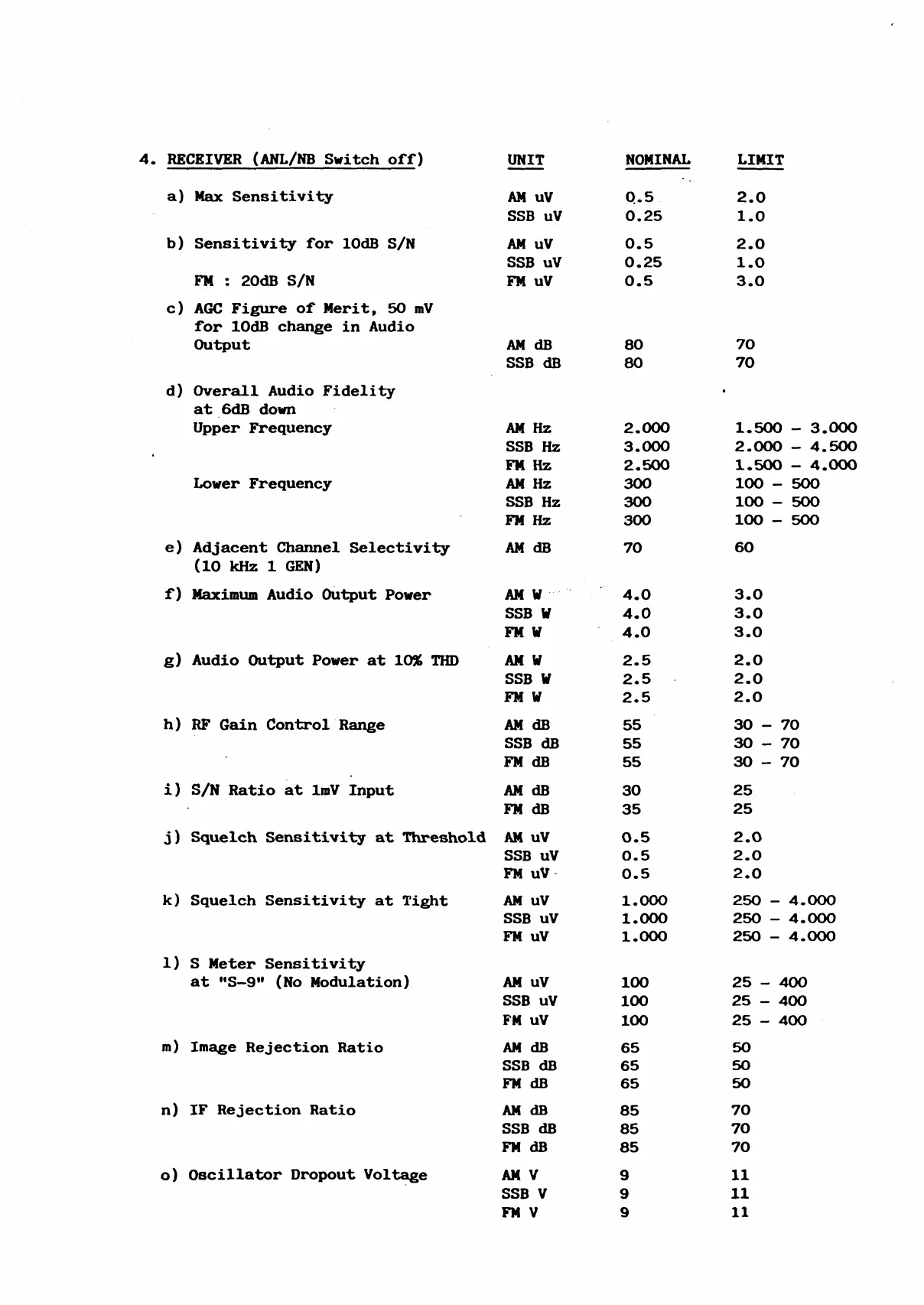

Uniden JACKSON - Receiver Specifications

4. RECEIVER (ANL/NB Switch off)
a) Max Sensitivity
b) Sensitivity for lOdB S/N
FM : 20dB S/N
c) ACÏC Figure of Merit, 50 mV
for lOdB change in Audio
Output
d) Overall Audio Fidelity
at 6dB down
Upper Frequency
Lower Frequency
e) Adjacent Channel Selectivity
(10 kHz 1 GEN)
f) Maximum Audio Output Power
g) Audio Output Power at 1056 THD
h) RF Gain Control Range
i) S/N Ratio at 1mV Input
j) Squelch Sensitivity at Threshold
k) Squelch Sensitivity at Tight
l) S Meter Sensitivity
at "S—9" (No Modulation)
m) Image Rejection Ratio
n) IF Rejection Ratio
o) Oscillator Dropout Voltage
UNIT
NOMINAL
LIMIT
AM uV Q.5
2.0
SSB uV 0.25
1.0
AM uV
0.5
2.0
SSB uV
0.25
1.0
FM uV
0.5
3.0
AM dB
80
70
SSB dB
80 70
AM Hz
2.000 1.500 - 3.000
SSB Hz
3.000
2.000 - 4.500
FM Hz
2.500 1.500 - 4.000
AM Hz 300 100 - 500
SSB Hz
300 100 - 500
FM Hz 300
100 - 500
AM dB 70
60
AM V
4.0
3.0
SSB V 4.0 3.0
FM V 4.0 3.0
AM V 2.5
2.0
SSB V
2.5 2.0
FM V
2.5
2.0
AM dB 55
30 - 70
SSB dB 55 3 0 - 7 0
FM dB
55 3 0 - 7 0
AM dB 30 25
FM dB 35
25
AM uV 0.5
2.0
SSB uV
0.5
2.0
FM uV 0.5 2.0
AM uV 1.000 250 - 4.000
SSB uV
1.000
250 - 4.000
FM uV 1.000 250 - 4.000
AM uV
100
25 - 400
SSB uV 100
25 - 400
FM uV
100
25 - 400
AM dB
65
50
SSB dB 65
50
FM dB 65
50
AM dB
85
70
SSB dB
85
70
FM dB 85
70
AM V
9
11
SSB V 9 11
FM V
9 11
