Uniforest 35M User Manual

16
Determined faults
Cause
Procedure for removal of
(malfunctions)
faults (trouble)
The winch pulls,
Improper setting.
Setting according to
despite the
instructions.
clutch being
disengaged.
Crossed, wound rope for control of
brake handle.
Installed the rope in parallel
manner.
Lever, connecting the brake
Check the lever.
handle, does not allow return
in disengaged position.
Damaged engagement
Repair or replace the
mechanism.
engagement mechanism.
Damaged winch drum.
Replacement or repair of the
drum.
Not enough clutch distance.
Setting according to
instructions.
Broken part of frictional
Replace clutches.
padding on the clutch.
Excessively tensioned drive
Chain setting according to
chain.
instructions.
The winch
Insufficiently tensioned drive
Tension the chain, as
makes noise with
chain.
described in the instructions.
operation.
Damaged or worn bearings.
Replace bearings.

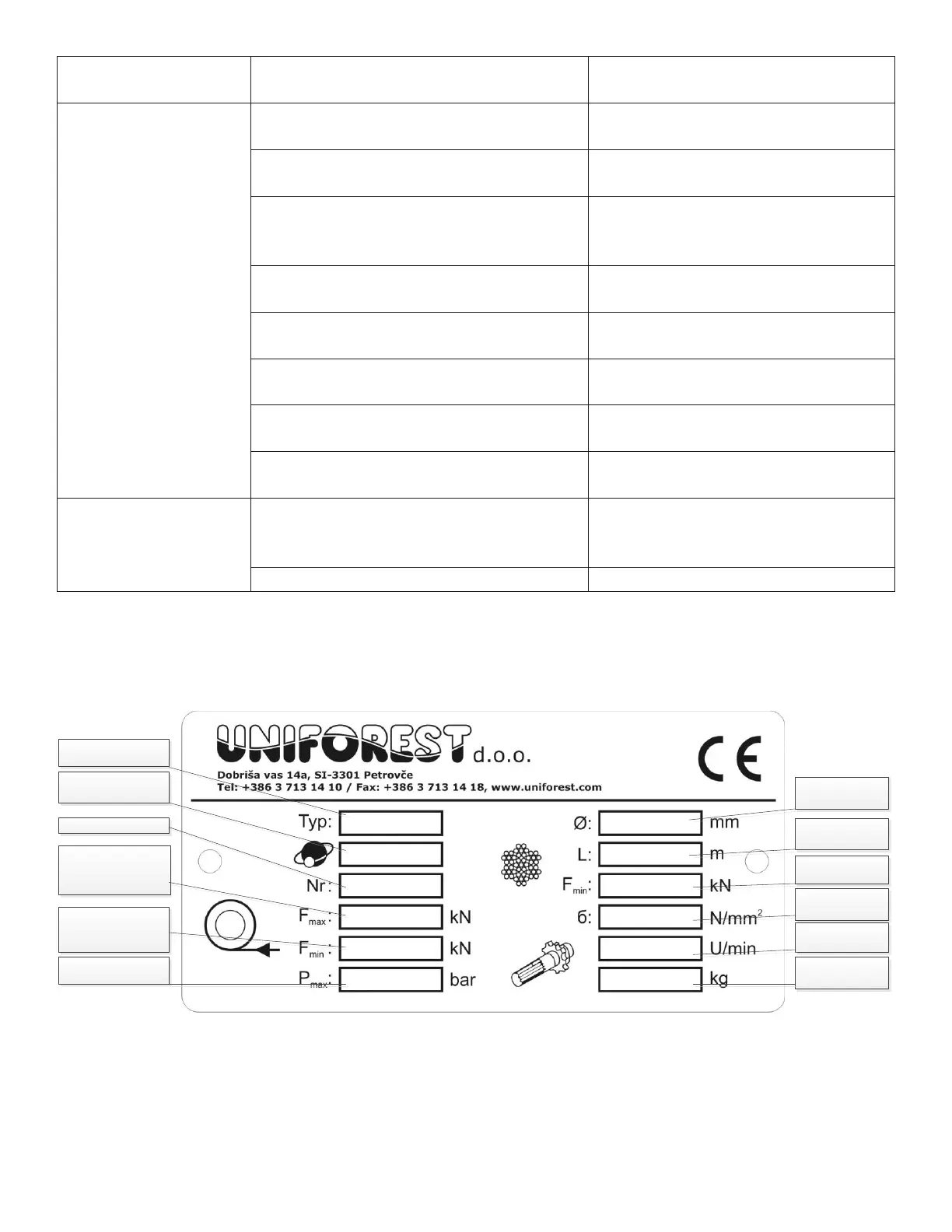

explanation of nameplate
Wire rope
diameter
Manufacture year
Serial no.
c
c
Pulling force at the
internal diameter
of the drum
Pulling force at the
external diameter
of the drum
Operating pressure
Wire rope
length
Min. breaking
force
Specific min.
breaking force
Max. PTO shaft
revolutions
Weight of the
machine
Machine type
