Uniforest 65H User Manual

13

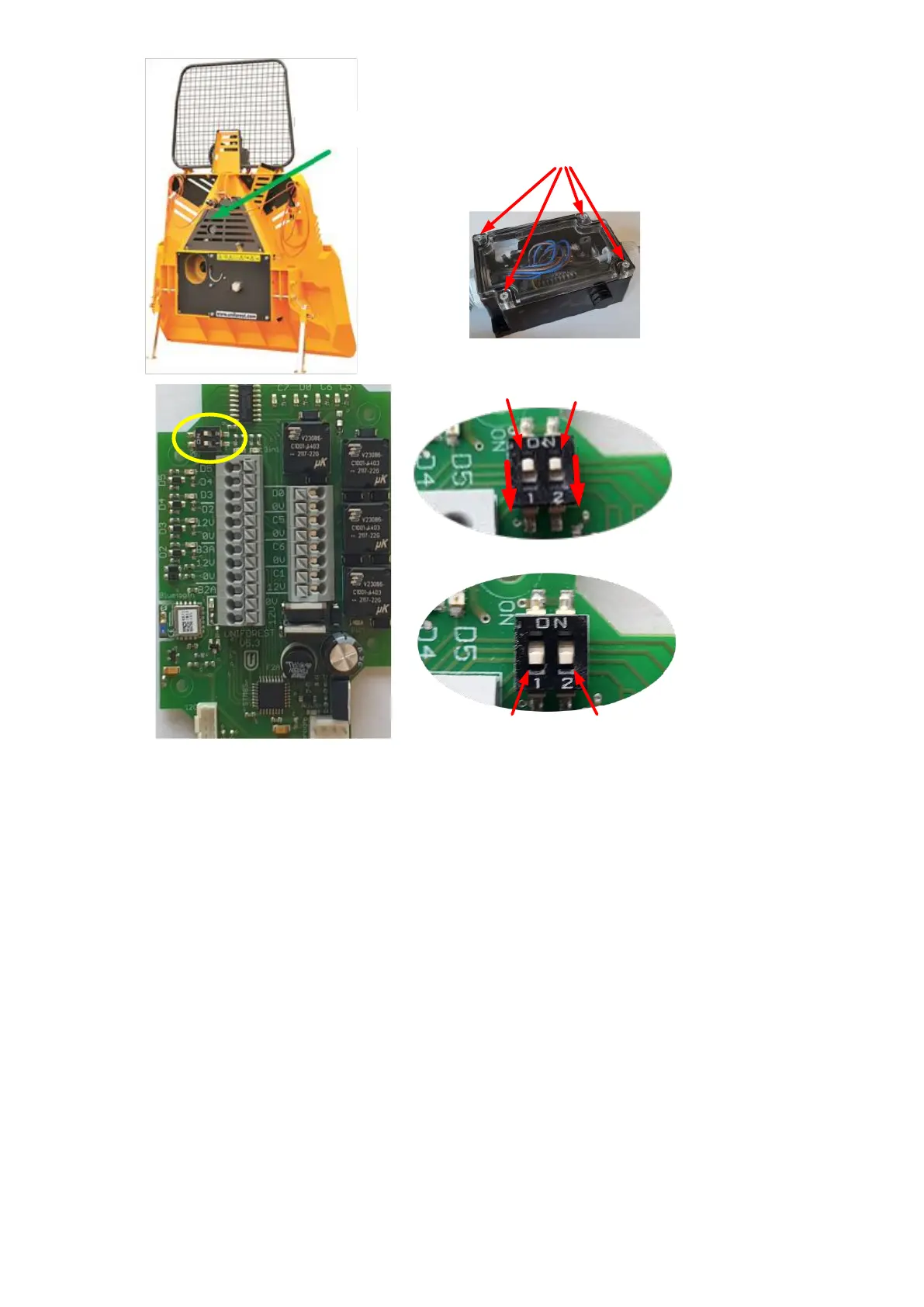

Figure 8a
Before switching off the SMART 3in1 function, turn of the tractor's engine and disconnect
the power supply to the winch.
Remove the protection on the winch (1, Figure 8a). Loosen the screws on the electric box
(2). Move the switch 1(TERRA), 2(SMART 3in1) on the switch panel to position OFF. Close
the box and tighten the screws (2). Install the protection (1) back onto the winch.
Limit switch
Your winch can also be equipped with a limit switch (optional equipment). It was
designed to automatically stop the pulling of the wire rope when the end of the rope
reaches its final position. The limit switch prevents damage to the wire rope and its guide
on the upper pulley.
1 2
1
ON
OFF
2
1
2
