Uniforest 65H User Manual

29
SPARE PARTS LIST

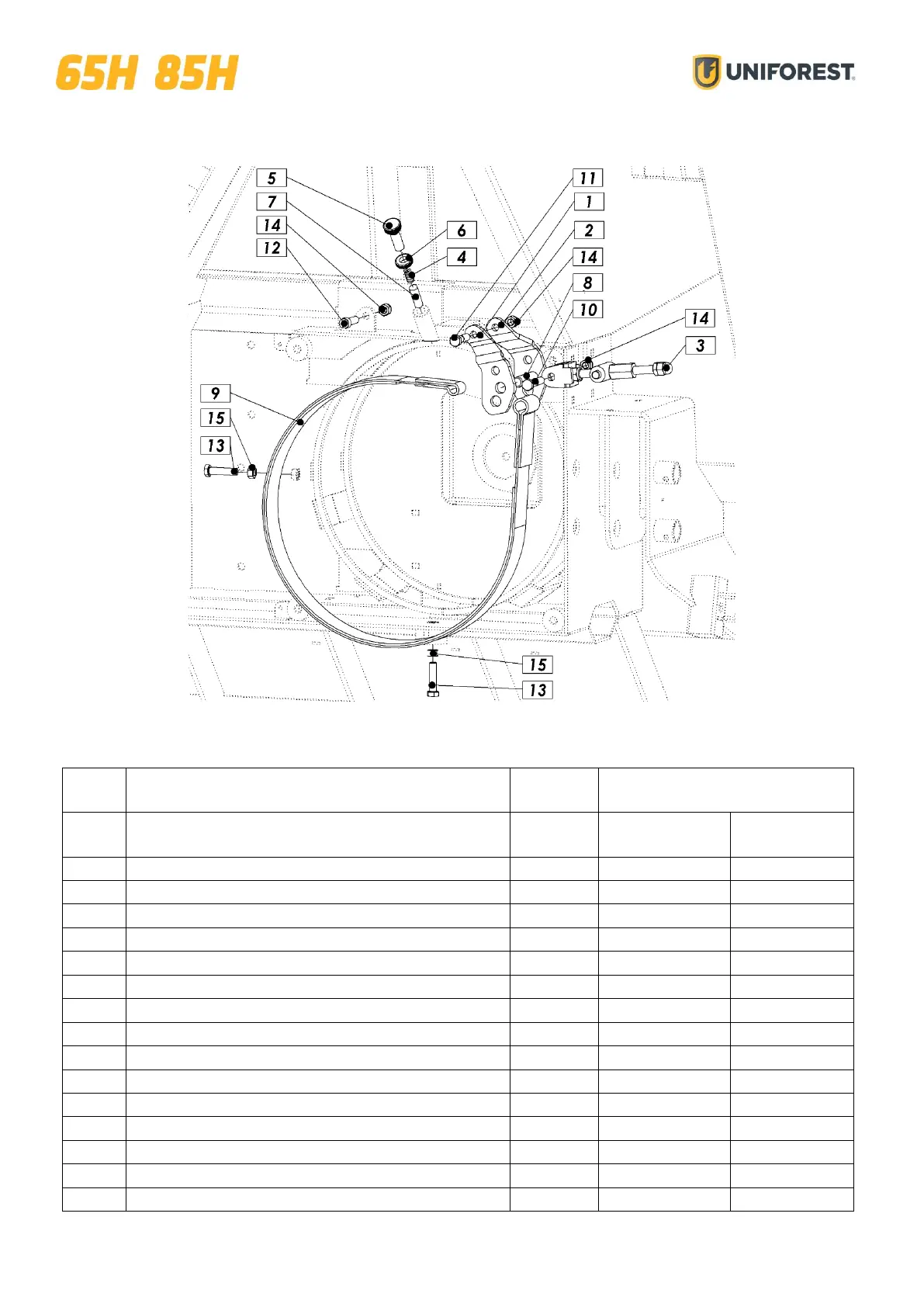

Figure 1: 7002.05.30.0 / 7004.05.30.0 – Brake mechanism.
Pos.
Name
No. of
pieces
Number
65H
7002.05.30.0
85H
7004.05.30.0
1
Brake plate
1
7002.05.12.0
7002.05.12.0
2
Brake plate
1
7002.05.13.0
7002.05.13.0
3
Fork kpl
1
7002.05.15.0
7002.05.15.0
4
Compression spring
1
5006.05.36.0
5006.05.36.0
5
Band brake screw Zn
1
5006.05.37.0
5006.05.37.0
6
Pre-brake nut
1
5006.05.38.0
5006.05.38.0
7
Pre-brake bolt
1
7002.05.42.0
7002.05.42.0
8
Band bolt 65
1
7002.05.43.0
7002.05.43.0
9
Brake band
1
702.61.00.0
704.61.00.0
10
Screw M12x60 Zn
1
1000076
1000076
11
Screw M12x50 Zn
1
1000072
1000072
12
Hexagon socket screw M12x45
1
1000099
1000099
13
Screw M12x50 Zn
2
1000093
1000093
14
Nut M12 Zn
3
1000142
1000142
15
Nut M12 Zn
2
1000139
1000139
