Unigas C85A - Mounting Positions

PART II: INSTALLATION
18

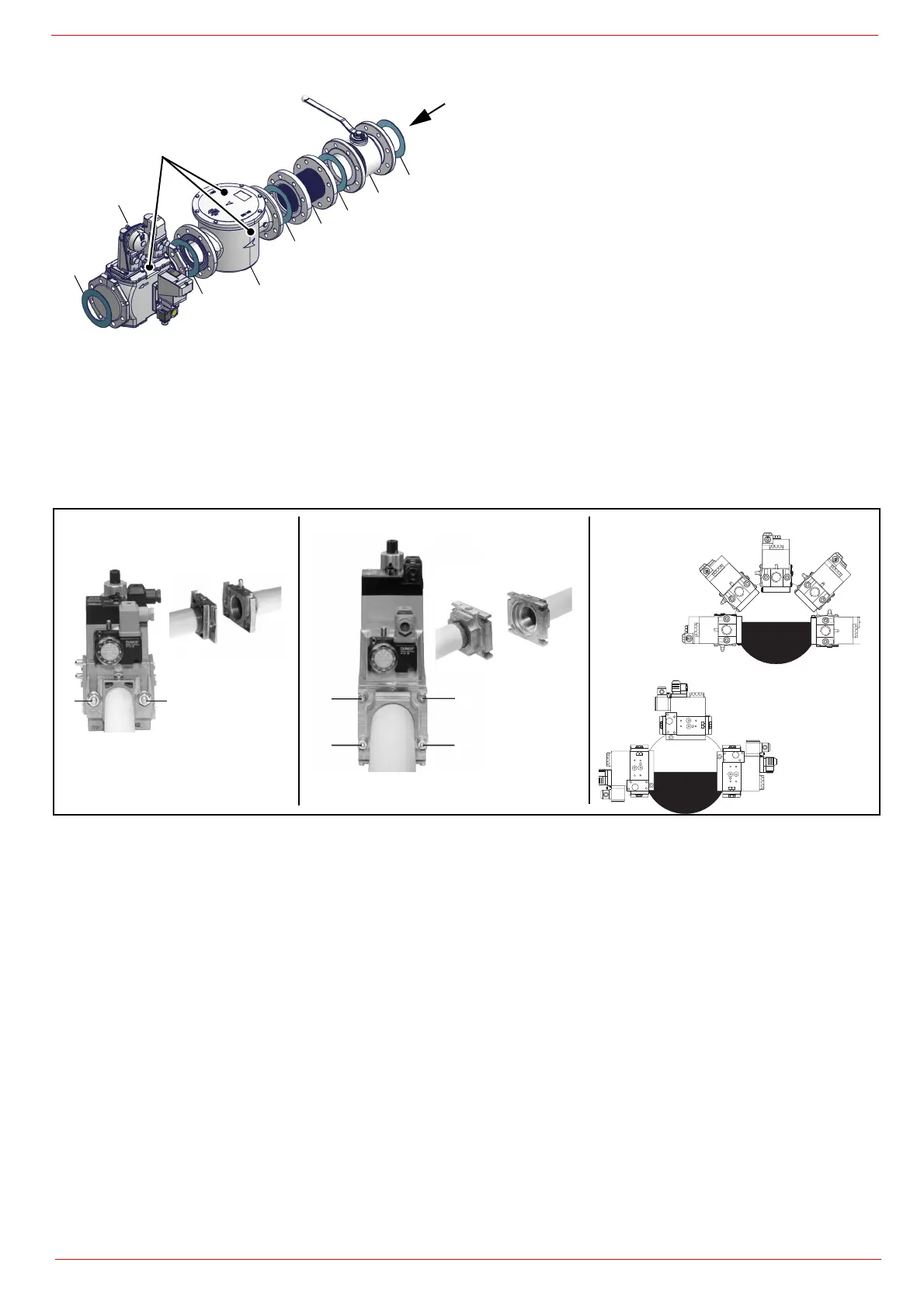

MultiBloc MB-DLE - Assembling the gas train
MULTIBLOC DUNGS
MB-DLE 405..412
MB-DLE 415..420
Mounting
1 Mount flange onto tube lines: use appropriate sealing agent
2 Insert MB-DLE: note position of O rings
3 Remove MultiBloc between the threaded flanges
4 After installation, perform leakage and functional test
5 Disassembly in reverse order
Keys
1 Gasket
2 Gas filter
3 Gas valves group
4 Bellows unit
5 Manual valve
”direction” arrows for
installation
gas supply network
1
5
1
4
1
2
1
3
1
A B
MB-DLE 405..412
A
B
C
D
MB-DLE 415..420
MOUNTING POSITIONS
