PART IV: MAINTENANCE
40

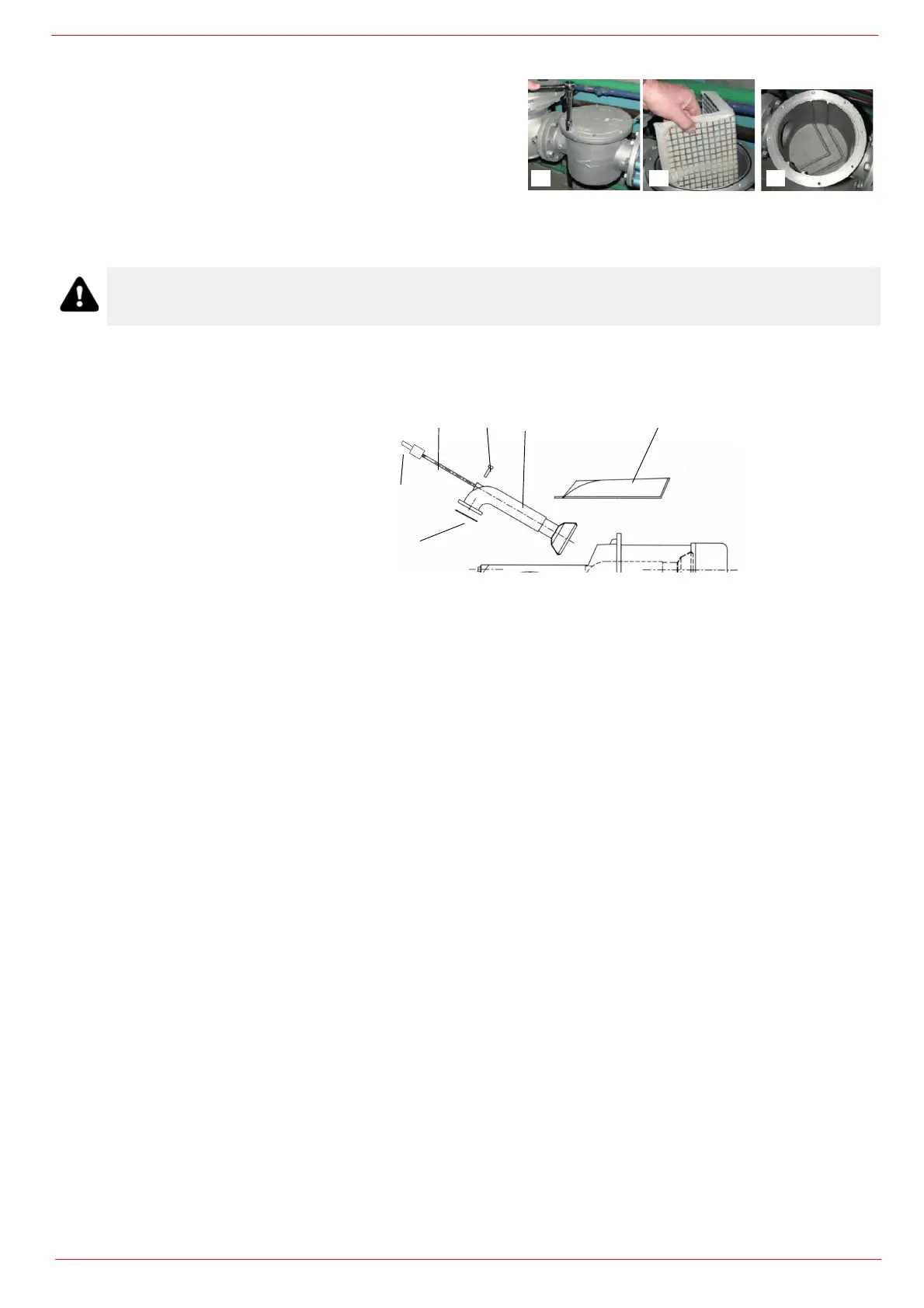

Gas filter maintenance
Removing the combustion head
WARNING: Before opening the filter, close the manual cutoff valve downstream the filter and bleed the gas; check
that inside the filter there is no pressurised gas.
Remove the burner cover C.
Unscrew the screws V holding in position the
manifold G and pull out the complete group as
shown in the picture.
Note: for the subsequent assembly carry out the
above described operations in the reverse order,
checking the correct position of the OR ring.
To clean or remove the filter, proceed as follows:
1 remove the cap unscrewing the fixing screws (A);
2 remove the filtering cartridge (B), clean it using water and soap, blow it
with compressed air(or replace it, if necessary)
3 replace the cartridge in its proper position taking care to place it
inbetween the guides as not to hamper the cap replacement;
4 be sure to replace the “O” ring into its place (C) and replace the cover
fastening by the proper screws (A).
