Unipulse F701-C Manual

UNIPULSE F701-C 中文技术手册 无锡友波贸易有限公司 0510-82706452/13861775500

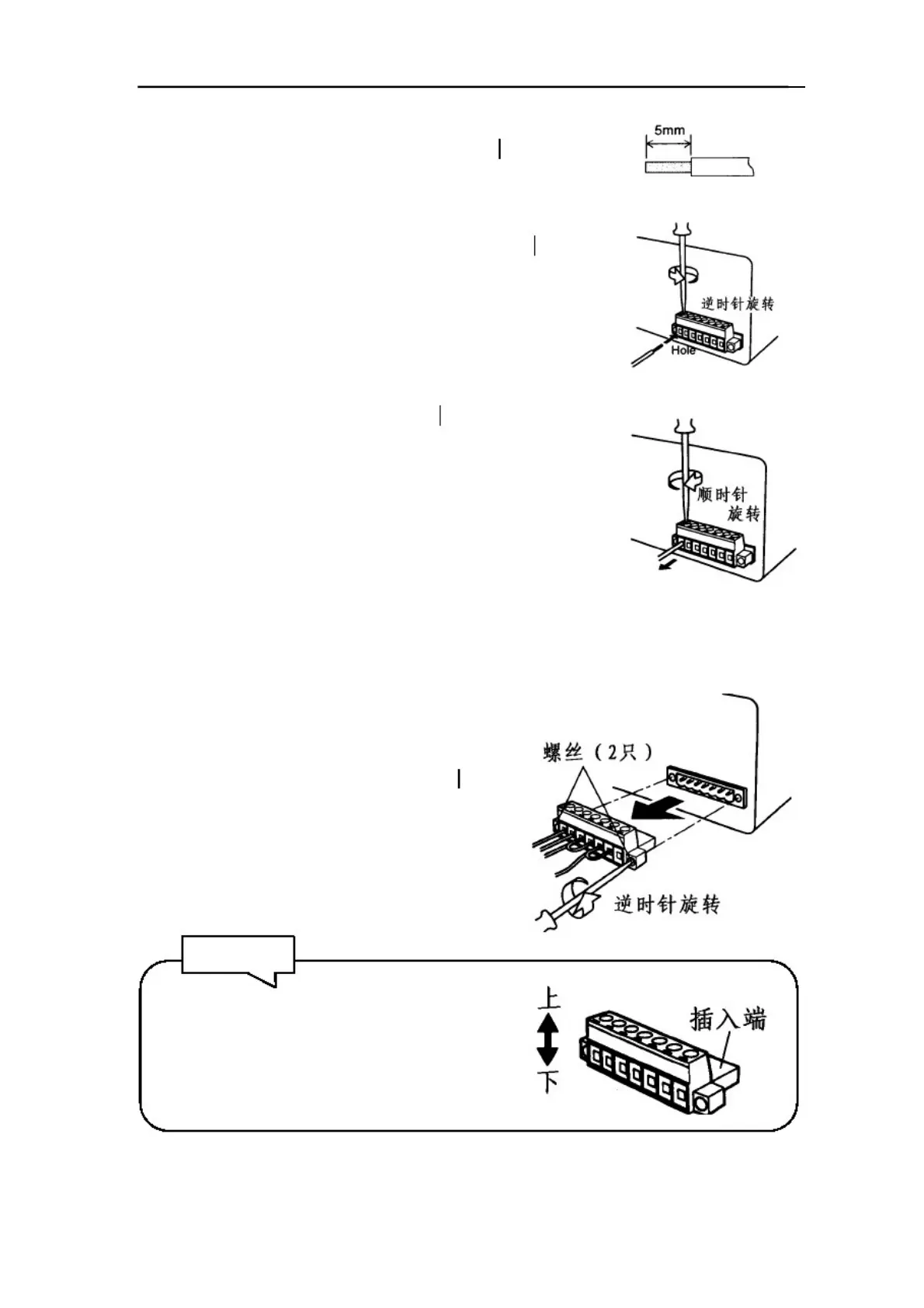

Method of connection 连接方式
i) Peel the sheath of the wire to be connected
5mm.
将需要连接的线缆外皮剥去 5mm。
2) Twist the end to such an extent that it will not become loose.
拧紧线头不要松散。
3) Loosen th
e screw with a screwdriver to open the hole.
将接线板用螺丝刀旋松后放入所对应的孔中。
A Phillips screwdriver with a shaft diameter of 3
-
3.5mm #l is
recommendable (precision screwdriver, etc.).
建议使用 1 号 3 - 3.5mm 的 Phillips 螺丝刀（或精准适合的）
。
4) Insert the wire into the hole so as not to loosen the end.
将线头塞入孔中不要松动。
5) Tighten the screw with the screwdriver.
用螺丝刀紧固。
6) Lightly pull the wire to check that it is clamped securely.
轻微拉动一下检查是否紧固。
※ Connectable wires are 0.2 1～ 3.3 1 mm2 (AWG 12 - 24).
注：建议连线规格为 0.2 1～ 3.3 1 mm2 (AWG 12 - 24)。
Recommendable tightening torque is 0.5Nm.
旋转力矩为 0.5Nm。
How to remove the load cell terminal board.
如何拆卸传感器接线端子
The terminal board can be removed from the F701
-
C body after the load cell(s) is connected.
F701-C 的传感器接线端子在传感器连接后可以拆除。
1) Loosen the screws with the screwdriver.
用螺丝刀松开螺丝。
2) Remove the terminal board with a strong pull.
用力拉拔，即可卸下接线端子。
切记事项
When mounting the terminal board to the
F701
-
C body, check its vertical orientation.
(See the illustration on the right
-
hand side.)
在安装接线端子时，必须沿垂直方向插入。
（如图所示） 。
- 10 -
