UNIPULSE F701-C 中文技术手册 无锡友波贸易有限公司 0510-82706452/13861775500

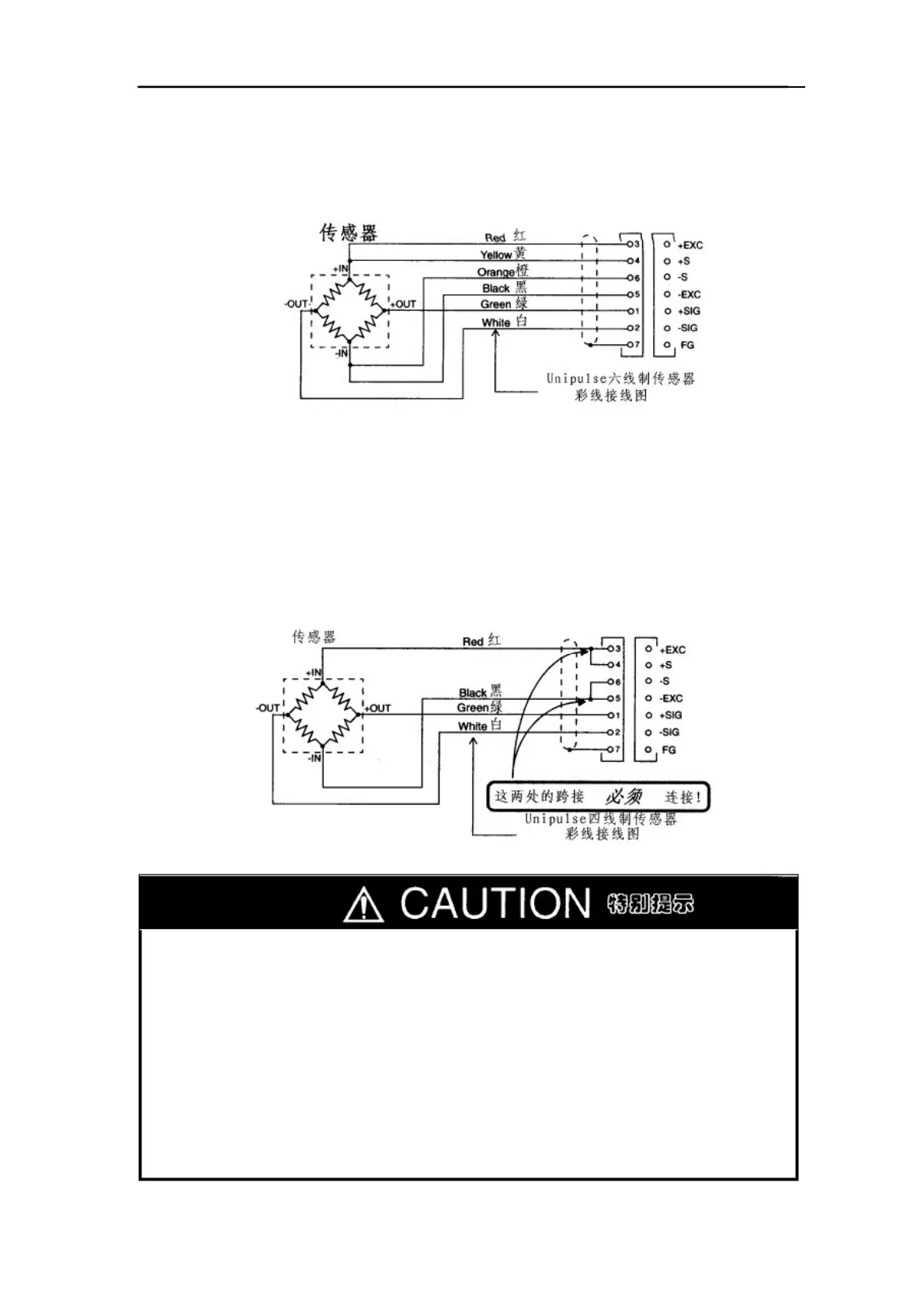

2-1-1.6-wire Connection 六线制传感器连接方法
The load cell input of the F701
-
C is a 6
-
wire (remote sense) connection. 6
-
wire shielded
load cell cable should be used and kept separate
from AC or other noise generating wire.
F701-C 的传感器输入是六线制遥感传输。传感器的六线屏蔽线必须与交流电及其它干
扰线路分开布线。
※ Remote sense lines are used to detect and correct variations in excitation voltage over
long cable runs. 注：遥感连接是传感器在长线传输时可检测并修正激励电压。
2-1.2. 4-wire Connection 四线制传感器连接方法
Connect 3 and 4, and 5 and 6 as shown below. 如图将 3、4 脚及 5、6 脚跨接。
Even 4 and 6 on the terminal board are open, normal operation is performed apparently,
but heating or breakage may occur
because excessive voltage is applied to the load cell.
For connection, use the accessory jumper lines. 4、 脚如果不跨接，
6
似乎也能正常工作，
但过量的电压会引起传感器变热或损坏。因此，必须将配带的跨接片跨接。
青
岛
●
The
load cell excitation voltage of the F701
-
C is 10V. Heating or breakage may occur
unless the load cells maximum excitation voltage is 1or or more. F701-C 提供 10V，20mA
激励电压，超过 10V 的电压会引起传感器变热或损坏。
●
When using the F701
-
C with the four
-
wire load cell connected, be sure to connect
+EXC and +S, and
-
EXC and
-
S. Even if +S and
-
S are not connected, normal operation is
performed apparently, but heating or breakage may occur because excessive voltage is
applied to the load cell. 当 F701-C 与四线制传感器连接时，必须将+EXC and +S, 及
-EXC and –S 跨接，否侧，似乎也能正常工作，但过量的电压会引起传感器变热或损
坏。因此，必须将配带的跨接片跨接。
- 11 -
