Unique UGP-19C - UGP-6 C Parts Diagram & List

22
Parts Diagram and Lists – UGP 6C/8C/10C
Chapter
8
UGP-6C
18

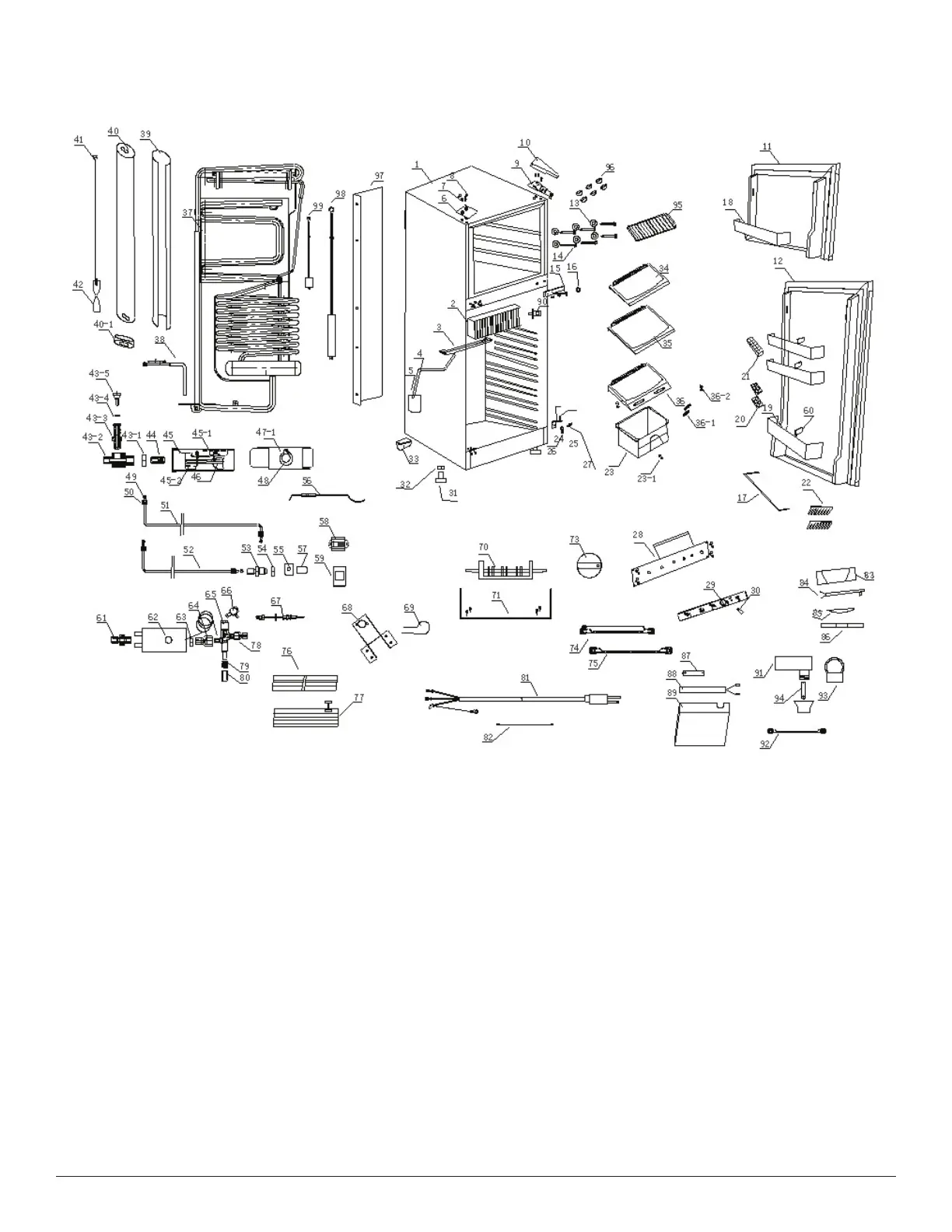

UGP-6C PARTS DIAGRAM & LIST
Please visit our website www.uniqueappliances.com to view a PDF
version of the schematics which will allow you to zoom in and out.
Specifications
Total Size: 6.4 cu/ft. – 181 L
Fridge Size: 4.9 cu/ft. – 139 L
Freezer Size: 1.5 cu/ft. – 42 L
Dimensions CM/SM: H 57.75” x W 23.75” x 25.25”
DV: H 58.75” x W 23.75” x D 29.25”
Weight: CM/SM: 152 lbs / 69 kg
DV: 165 lbs / 75 kg
Operation: Dual Power (primary propane – 110V backup)
AC Power: 110V / 2.5 Amp. / 300 Watts
Min. Clearance for installation
(from front):
Left: 2” / Top: 6” / Right: 2” / Back: 1”
Gas Consumption: Approx. 1.1 lbs. LPG in 24 hr. period
BTU: 1,400 max., 600 min.
