Please visit our website www.uniqueappliances.com to view a PDF
version of the schematics which will allow you to zoom in and out.
Specifications
Total Size: 9.7 cu/ft. – 275 L
Fridge Size: 7.6 cu/ft. – 215 L
Freezer Size: 2.1 cu/ft. – 60 L
Dimensions CM/SM: H 64.5” x W 23.5” x D 28.25”
DV: H 64.5” x W 23.75” x D 33.25”
Weight: CM/SM: 176 lbs / 80 kg
DV: 196 lbs / 89 kg
Operation: Dual Power (primary propane – 110V backup)
AC Power: 110V / 2.5 Amp. / 300 Watts
Min. Clearance for installation
(from front):
Left: 2” / Top: 6” / Right: 2” / Back: 1”
Gas Consumption: Approx. 1.4 lbs. LPG in 24 hr. period
BTU: 1,600 max., 600 min.
22

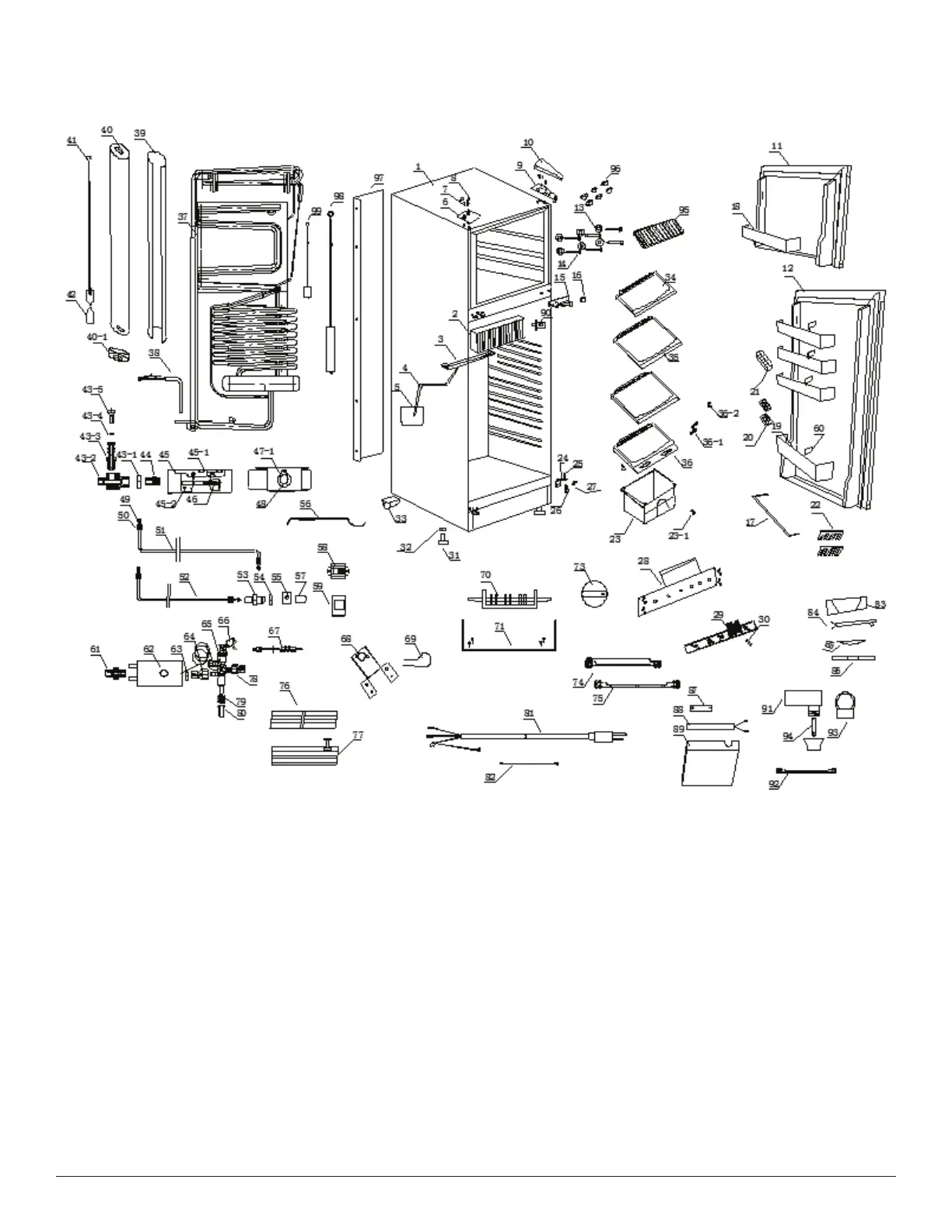

UGP-10C PARTS DIAGRAM & LIST
