Setting up the MT650
This section explains how to charge the battery and how to turn on the MT650
for the first time.

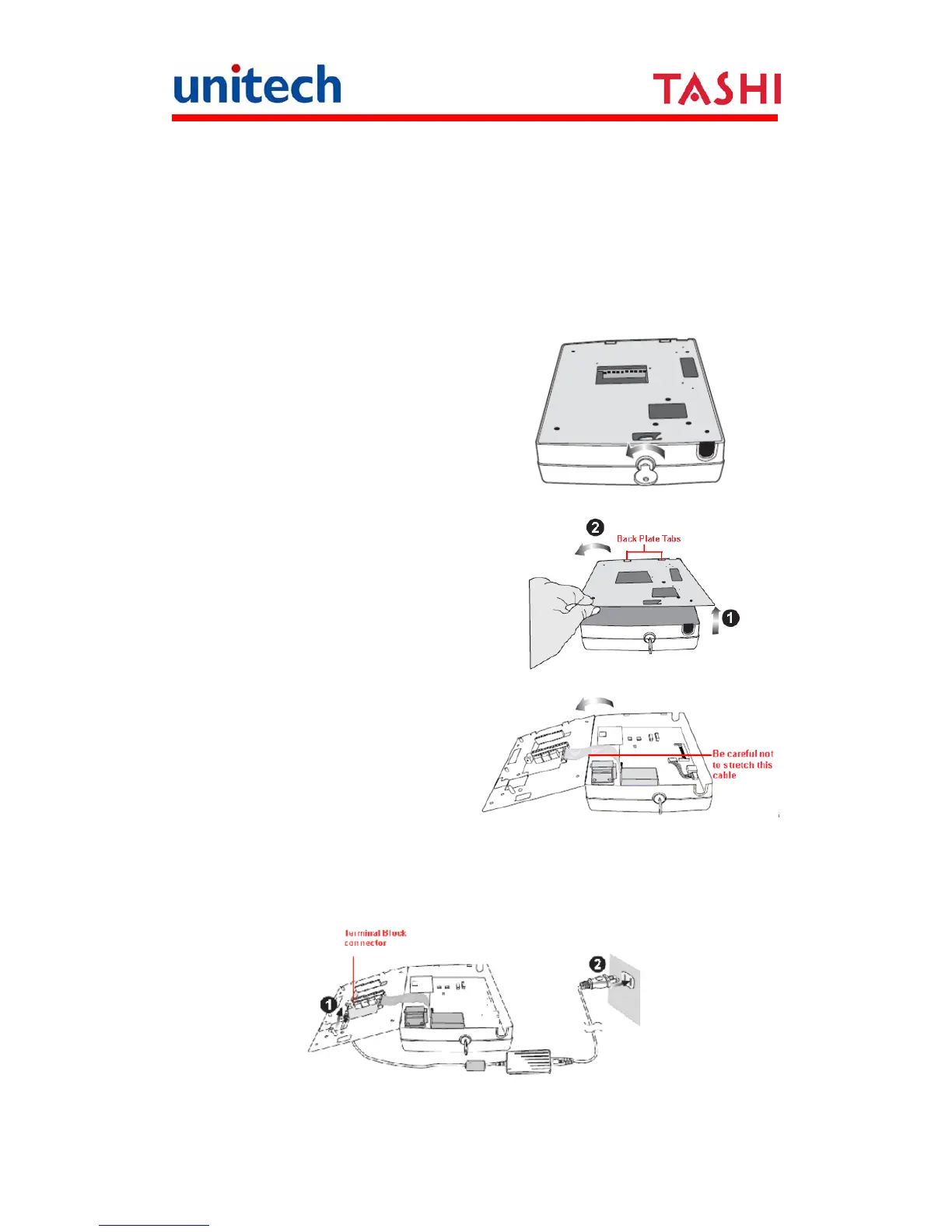

Opening the Back-plate
Follow these instructions to open the back-plate for accessing the MT650’s
internal components.
1. Insert the key provided into the
security lock and then turn the key
counterclockwise.
2. Lift the back-plate up to a
45-degree angle (1) and pull the
plate in the direction of the arrow
slightly to free the cover from the
back plate tabs (2).
3. Flip the back plate over to the left.
Connecting Power
Follow these instructions to connect power to the MT650.
1. Plug the 12V DC connector into the terminal block (1)
