Electrical Installations
4
120V Installation (Permanently Connected Units):
Units to be operated at 120 volt must have all electrical connections
accomplished by a qualifi ed electrician in accordance with the National
Electrical Code or the Canadian Electrical Code, and other electrical
codes at the time of installation. All connections must be made with
copper conductors. The conductors and circuit breaker must be sized to
accommodate the total amperage load as specifi ed on the Equipment
Module data label. Equipment Modules installed for 120 volt operation
require a two wire electrical service, plus ground. Line 1 (black), Neutral
(white), and Ground (green).
The disconnecting means must be readily accessible to the tub occupant
but installed at least 5 feet (1.5 m) from tub water. The electrical supply
for permanently connected units must include a suitably rated Ground
Fault Circuit Interrupter (GFCI) in compliance with Article 680-42 of the
National Electrical Code. ANSI/NFP70. No other electrical appliance or
fi xture should be used on this circuit.

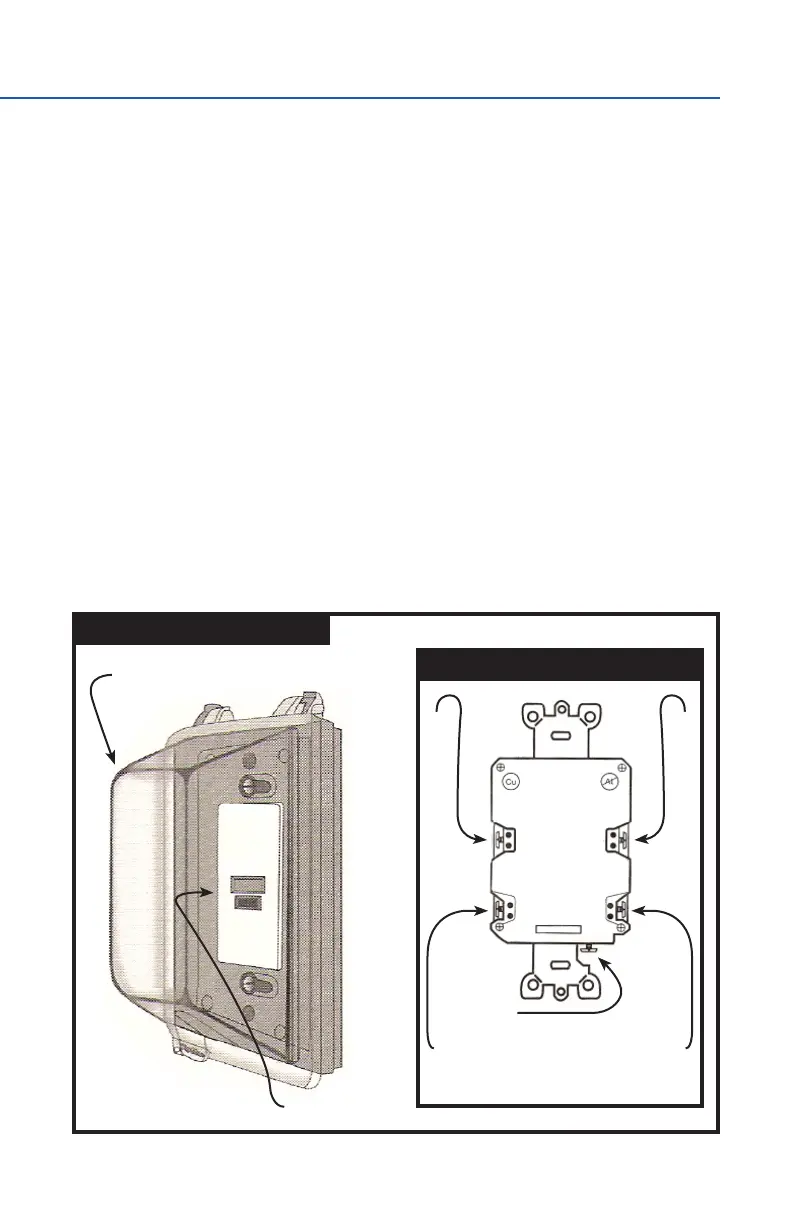

Weather Proof GFCI Kit
Weatherproof Receptacle Cover
120V GFCI
Back View
Power from
Main Panel
(Black)
Neutral from
Main Panel
(White)
Ground
LOAD
LINE
Neutral to Spa (White)
Power to Spa (White)
To Next Page
