Control Box Installation
8
The Pump-1 and Pump-2 receptacles
are pre-wired for 240V. The Ozone,
Circulation Pump, Auxiliary, Audio,
and Gas (on the C5-G) receptacles are
all pre-wired for 120V
.
These receptacles are all dyed different
colors, and have white wires striped
with their respective receptacle’s color.
To change the voltage of a receptacle
simply move it’s correspondingly color
striped white wire at the power lugs from
Neutral to Line 2 to convert to 240V, or
from Line 2 to Neutral to convert to 120V.
The Light receptacle is pre-wired for industry standard 12V lighting, up to
0.9A. To convert the receptacle
to operate 120V lighting (up to
2A) the two jumper wires on
the circuit board marked ‘SPA
LIGHT’ must be moved from
‘Low V’ to ‘High V’. Both wires
must be moved together, as
shown in the diagrams. Wiring
the jumper wires in any other
confi guration then shown in the diagrams may damage the circuit board!
Power Installation
For 4-wire 240V power installations
the incoming Line-1, Line-2, and
Neutral wires will need to be connected
to the correspondingly labeled power
lugs on the circuit board. The ground
wire will need to be connected to the
ground lug fastened to the aluminum
frame right next to the board.

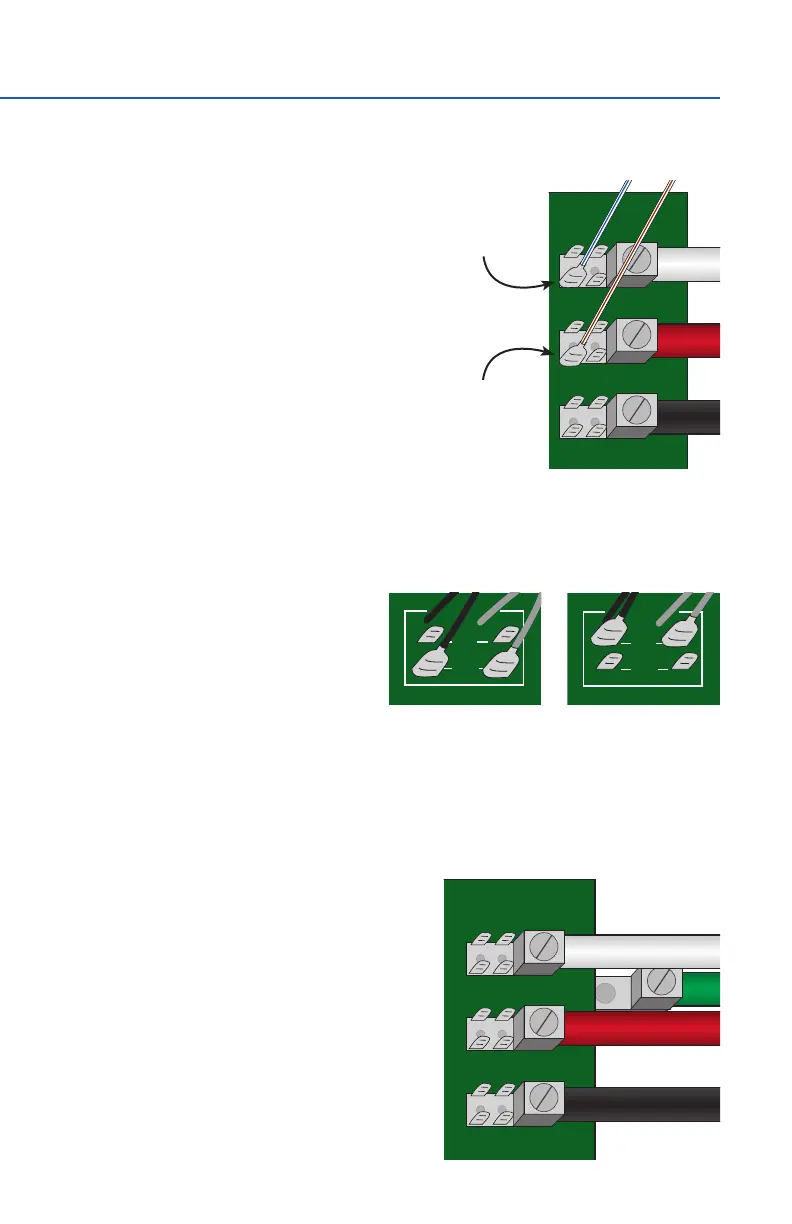

NEUTRAL
LINE-2
LINE-1
SPA LIGHT
HI V
LO V
SPA LIGHT
HI V
LO V
12V Light
(Default)
120V Light
Place wire on
Neutral to make
receptacle 120V
Place wire on
Line-2 to make
receptacle 240V
NEUTRAL
LINE-2
LINE-1
To Next Page
