Unitronics EX-RC1 User Guide

EX-RC1 Remote I/O Adapter
11/22
4
Unitronics

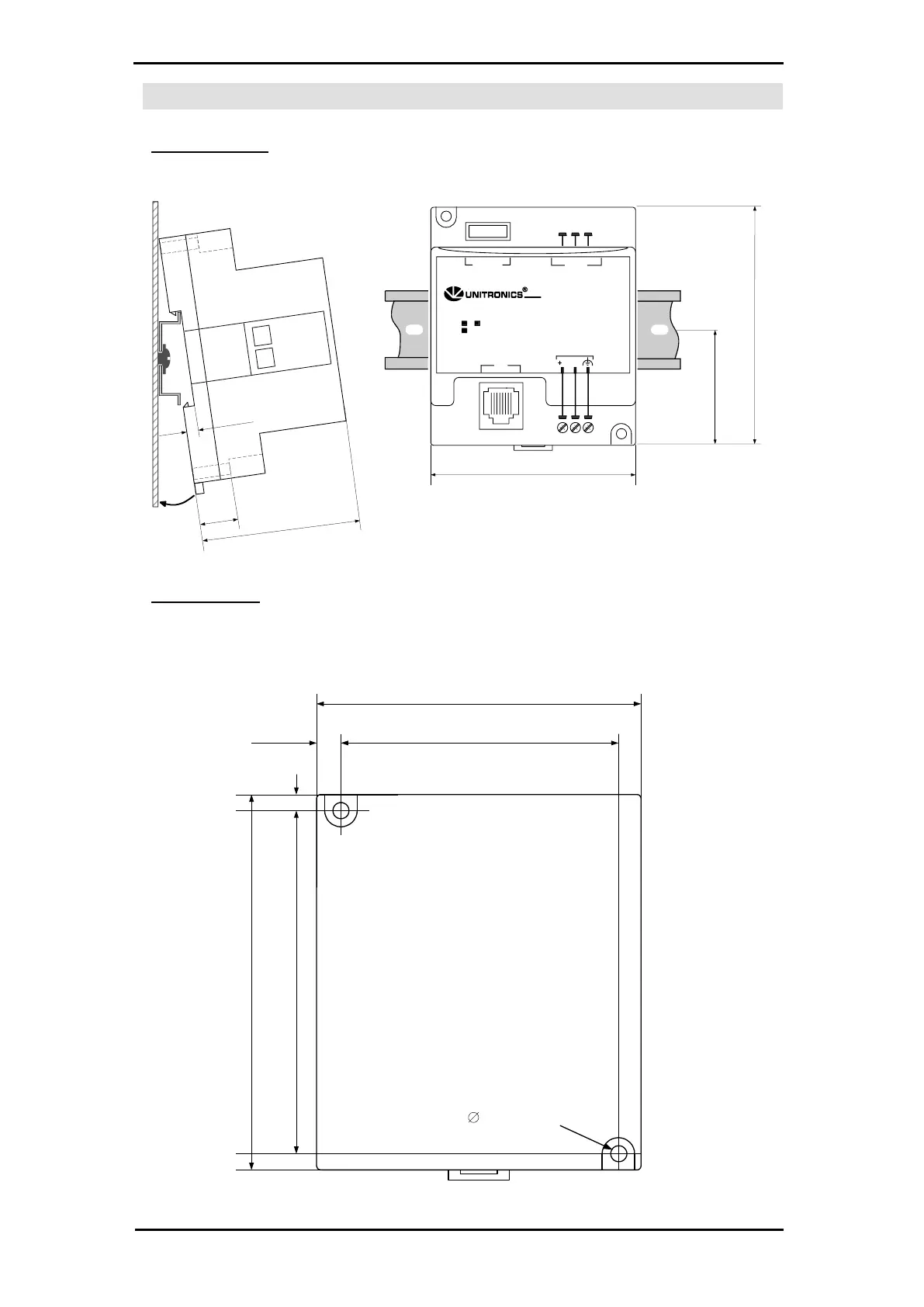

Mounting the Module
DIN-rail mounting
Snap the device onto the DIN rail as shown below; the module will be squarely situated on the DIN rail.
60
mm
(
2
.
362
")
3
.
5
mm
(
0
.
137
")
14
mm
(
0
.
55
")
80mm
(3.15")
93mm
(3.66")
44.5mm
(1.75")
POWER
EX-RC1
0VV
Remote I/O Adapter
PRG
Network ID
CANbus
PWR
I/O COMM.
Bus COMM.
Screw-Mounting
The figure below is not drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
4mm
5.8mm
(0.228")
85mm
(3.346")
80mm
(3.15")
68.4mm
(2.693")
93mm
(3.66")
4mm (x2)
(0.16")
(0.16")
