The RF Control Window
If the RF Control Window is closed, reopen it by clicking on the shortcut button on the toolbar or selecting RF
control from the Program Menu (Step 7).
OOvveerrvviieeww ooff BBaassiicc RRFF OOppttiioonnss
Using the basic RF Control Window you can modify the RF properties of an MX-3000 as follows:
11 SSiiggnnaall
from the Remote can be set to IR only, RF only or both IR and RF. The factory default is set to
both IR & RF.
NNOOTTEE!! TThhiiss mmuusstt bbee sseett ffoorr eeaacchh ddeevviiccee iinnddiivviidduuaallllyy!!
22 RReecceeiivveerr --
If you have multiple MRF-250’s in the system, you can select which receiver a device will be
connected to.The factory default is set to Default.
33 FFllaasshheerrss --
You can choose which of the emitter ports a device is connected to.This is vital when your sys-
tem includes some identical components using the same IR code set. If you are installing a typical system
with an assortment of unique components using different IR codes, you can leave the Flashers set to the
factory default selection of ALL, however if operation is intermittent try routing to one flasher only.
OOvveerrvviieeww ooff RReecceeiivveerr RRFF OOppttiioonnss
By clicking on the RECEIVERS button in the bottom right corner, you can extend the RF control window to display
settings for the MRF-250s in your system. In the extended window you have the following options:
11 AAdddd BBuuttttoonn --
If you have more than one MRF-250 base station, add and give each new receiver a unique
name in the window that appears.
22 RReennaammee BBuuttttoonn --
Before using the Rename button, you must click and select a receiver in the column
under Name, then click on the Rename button.
33 RReecceeiivveerr IIDD --
To prevent all receivers from receiving RF commands, you may opt to set a unique ID# to
each.This is only useful when identical components are installed in different locations. If your system has
an asssortment of unique components using different IR code sets, you may leave the receiver ID # set to
the factory default of ID 1.
44 IIRR BBllaasstteerr --
Each receiver has a built in IR blaster, useful when you have more than six components to be con-
trolled. If you don’t have any use for this, turn it off, since it may issue too much IR for nearby components.
2200
TTyyppee iinn SSeeccttiioonn TTiittllee
U
S
I
N
G
M
X
3
0
0
0
E
D
I
T
O
R
T
O
P
R
O
G
R
A
M
WWiinnddoowwss,, MMeennuuss,, TToooollss aanndd DDeeffiinniittiioonnss

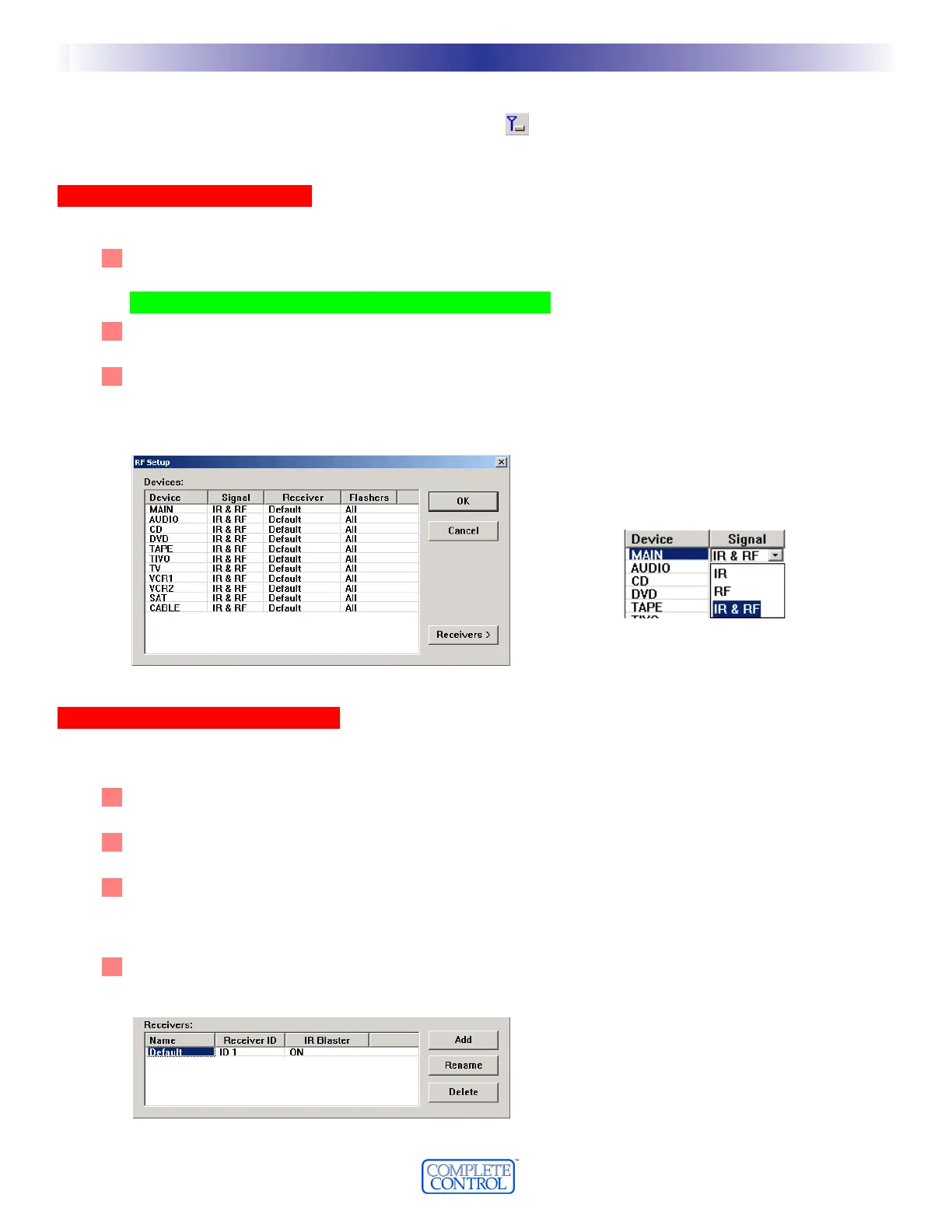

Set each device’s basic RF properties by clicking on the
row and column you want.When you do, a combo box will
display the choices available. Click on the option you want:
To Next Page
