4.4.2 Connect Lane Assembly
No. Part No. Code No. Name Picture Qty
1 L105-142-000 20104023002
Cross recessed hexagon
screw
8

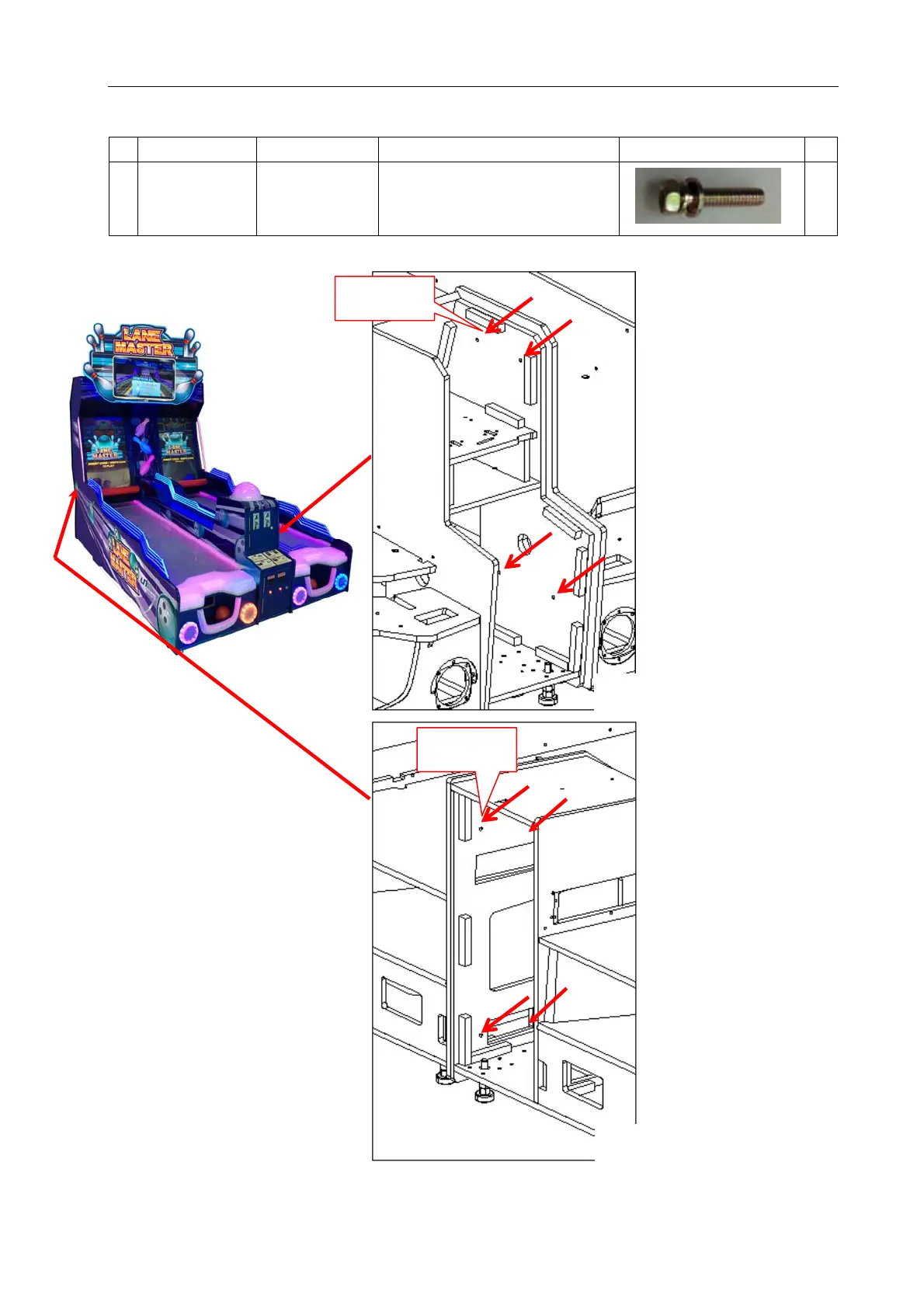

Step 1
Open the coin door and
the ticket door to attach
the screws in the red
arrow area.
P1
4 pcs
Step 2
Open the back plate and
attach the screws in the
red arrow area.
P2
4 pcs
