For Cabinet connection, there are two versions, please refer to your machine to find the
version you need.

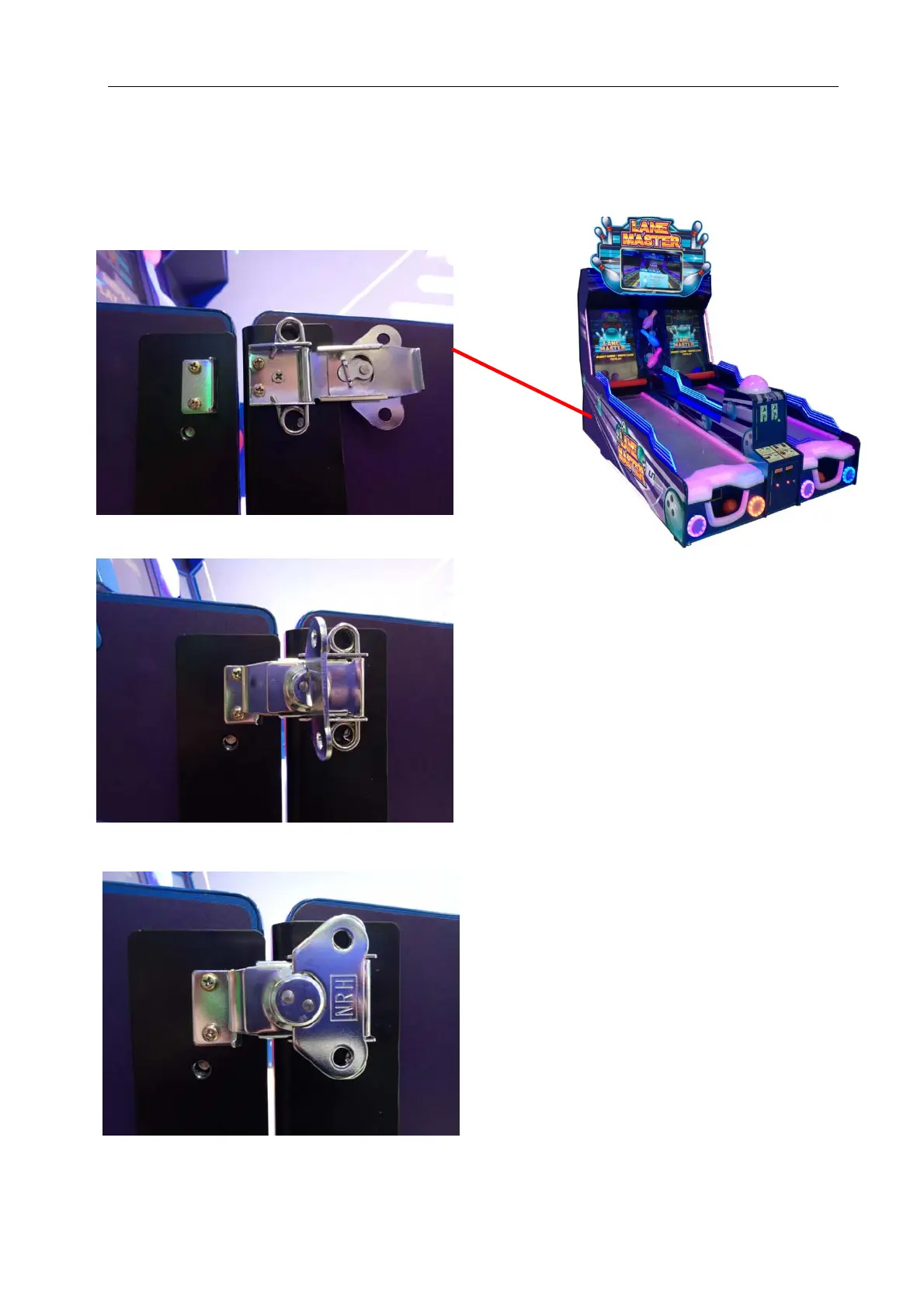

4.4.4 Connect Lane Assembly & Display Assembly (updated version)
Step 1 Fold the right buckle to the left side.
Place the Lane in front of the display assembly and install as shown.
Step 2 Turn the handle clock wise to lock the latch. (Counter-clockwise to unlock the latch.)
Step 3 Fold the handle after locking the latch.
