Universal COSMIC SERIES - G. COMPONENT PARTS RELATED TO SWITCHES (INSIDE CABINET)

UmUfiK^AL'
E. COMPONENT
PARTS RELATED TO SWITCHES IN THE
CABINET
©
The
method
of illumination
for
the title panel and
the
illustrated glass
may be
subject to
change
for some
reason
or other.

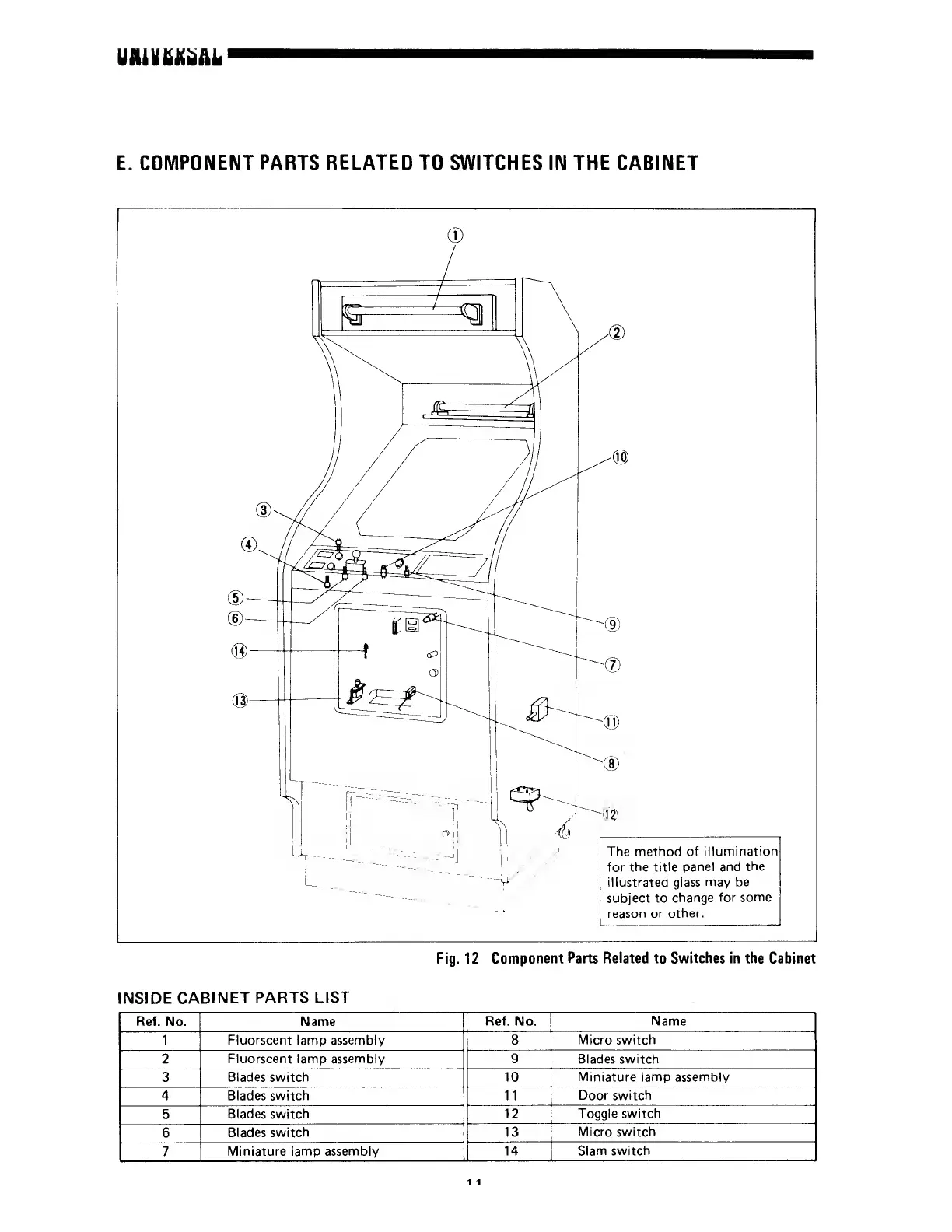

Fig. 12
Component Parts Related to Switches in the Cabinet
INSIDE
CABINET PARTS
LIST
Ref. No. Name
Ref.
No.
Name
1
Fluorscent lamp assembly 8
Micro switch
2
Fluorscent lamp assembly 9
Blades switch
3
Blades switch 10 Miniature lamp assembly
4 Blades switch 11
Door switch
5
Blades switch
12 Toggle switch
6
Blades switch
13
Micro switch
7
Miniature lamp
assembly 14 Slam
switch
