Universal COSMIC SERIES - VI. UPRIGHT TYPE PARTS CATALOG; A. COMPONENT PARTS RELATED TO CABINET (OUTSIDE)

UHIirEfiSAL
VI.
UPRIGHT TYPE
PARTS CATALOG
A. COMPONENT PARTS RELATED
TO
CABINET
(OUTSIDE)

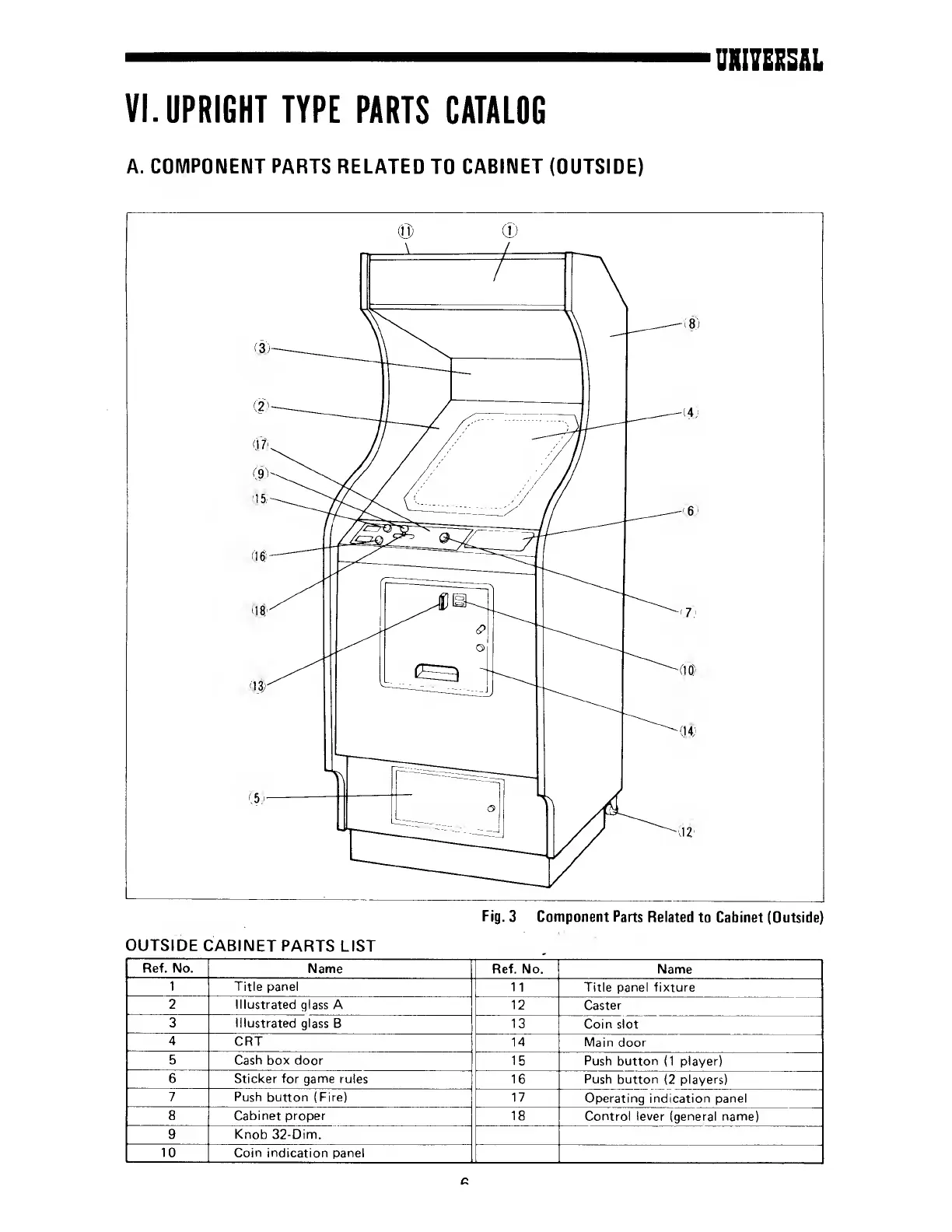

Fig.
3
Component
Parts
Related to
Cabinet (Outside)
OUTSIDE
CABINET PARTS
LIST
Ref. No.
Name
Ref. No.
Name
1 Title panel
11
Title panel fixture
2 Illustrated
glass A
12 Caster
3
Illustrated
glass B
13
Coin slot
4
CRT
14
Main door
5
Cash
box
door
15 Push
button
(1
player)
6 Sticker for game rules
16 Push button
(2
players)
7
Push
button (Fire)
17
Operating indication panel
8 Cabinet proper
18 Control lever
(general name)
9 Knob 32-Dim.
10 Coin
indication panel
