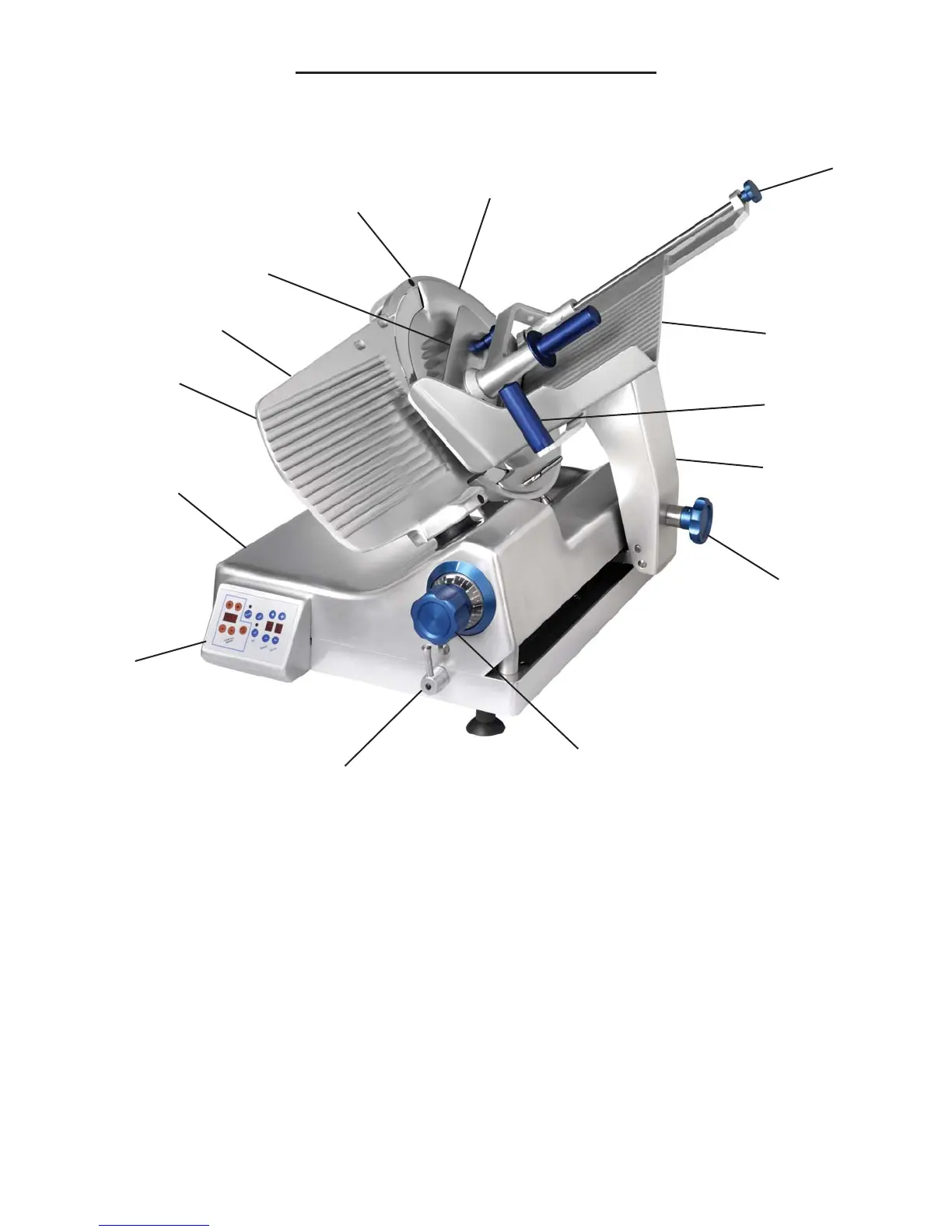

OVERALL VIEW OF MEAT SLICER
FIGURE 1
1 Last Slice Device Shaft and Knob 8 Control Panel
2 Carriage 9 On/Off Switch (on left side -not shown)
3 Carriage Handle 10 Fence
4 Carriage Arm 11 Fence Cover Knob (not shown)
5 Carriage Arm Knob 12 Last Slice Device
6 Graduated Knob 13 Protective Knife Guard Ring
7 Operating Mode Switch 14 Knife Guard
Page 3
1
2
3
4
5
6
7
8
9
10
12
11
13
14
