IMPORTANT: Before making any electrical connections, check the specifications on the data plate,
(located on the rear access panel Figure 1 [17]), to make sure that they agree with those of your electrical
service.
WARNING:
Whenever maintenance is being performed, or whenever the top cover or rear access panel
have been removed, DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it
indicating that the mixer is being worked on.
Page 14

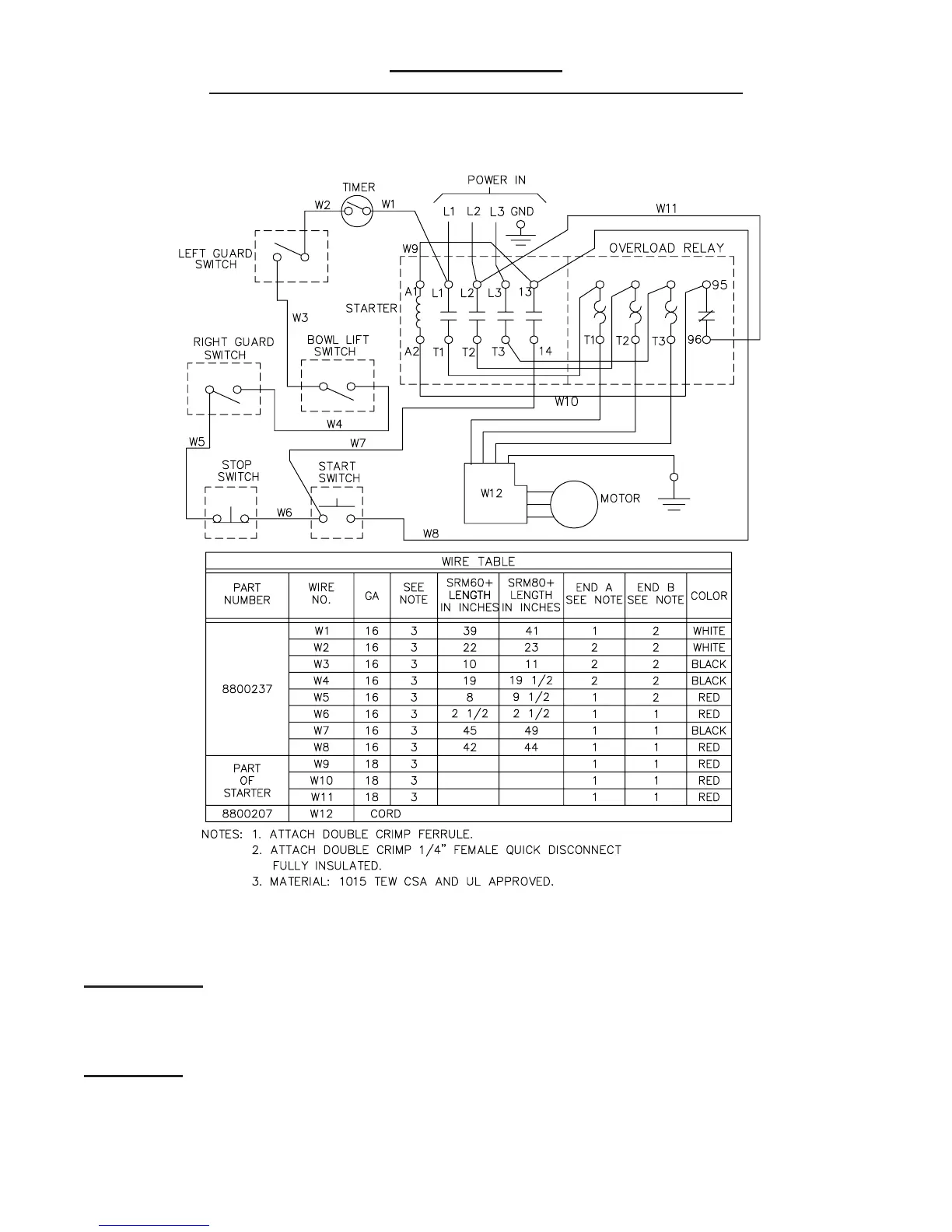

WIRING DIAGRAM
(208-240V, 60HZ, 3PH) (220V, 50HZ, 3PH) (200V, 50/60HZ, 3PH)
FIGURE 5B
