Climate Control Zoning System II installation and operation manual | Chapter 1 – System overview l 1
Chapter 1
System overview
The Uponor Climate Control Zoning System II is for use
with underoor heating installations and combines comfort,
user friendliness and temperature control for each individual
room of a home.
The system consists of a base unit, thermostats and actuators.
The base unit manages the operation of the actuators when
the thermostats detect a demand for the heating.
The system is controlled by different types of thermostats.
Designed for maximum comfort, the thermostats communicate
with the base unit by radio link. It is possible to mix the
different types of thermostats in the same installation.

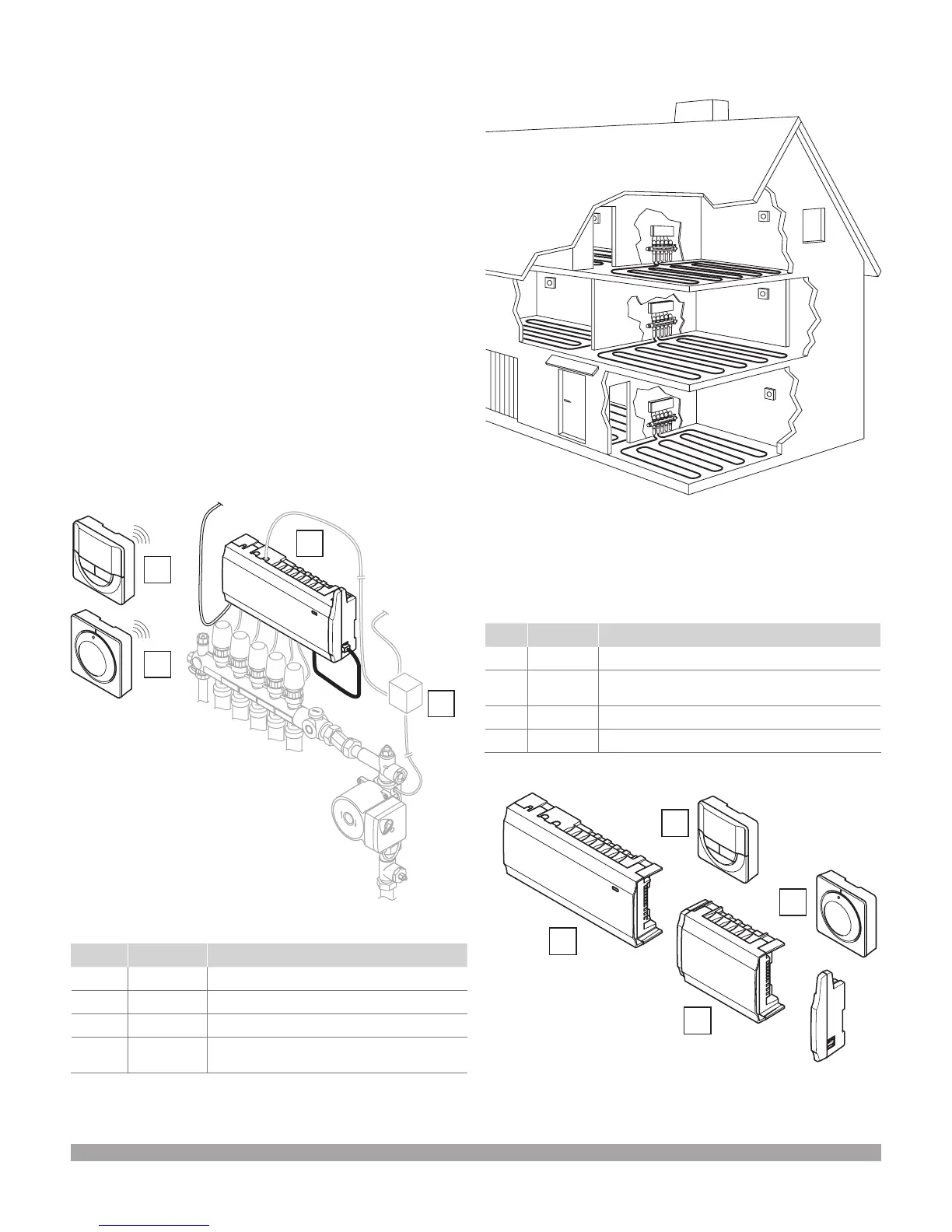

System example
The illustration below shows the system with several installation
options and thermostats.
Item Part no. Description
A A3800167 Wireless Digital Thermostat (T-167)
B A3800165 Wireless Dial Thermostat (T-165)
C A3801165 Wireless Base Unit, 6 zones (X-165)
D A3010100/
A3080301
External relay for pumps
Note: The oor sensor can connect to both digital and
dial thermostats.
System components
Item Part no. Description
A A3801165 Wireless Base Unit, 6 zones (X-165)
B A3801160 Wireless Base Unit Expansion Module,
6 zones (M-160)
C A3800167 Wireless Digital Thermostat (T-167)
D A3800165 Wireless Dial Thermostat (T-165)
24V
60Hz
115V
60Hz
D
C
A
B
A
B
C
D
Figure 1-2: Installation examples
Figure 1-1: Installation options
Figure 1-3: System components
