SetPoint 501s
Literature SetPoint 501 and 501s Controllers Installation
and Operation Manual
Control Microprocessor PI control; This is not a safety
(limit) control.
Packaged Weight 0.54 lb. (245 g), Enclosure J, white PVC plastic
Dimensions 2
7
⁄8" H x 2
7
⁄8" W x
13
⁄16" D (73 x 73 x 21mm)
Approvals CSA C US, meets ICES and FCC regulations for
EMI/RFI
Ambient Conditions Indoor use only, -22 to 131°F (-30 to 55°C),
< 90% RH non-condensing
Adjustment Range 34 to 122°F (1 to 50°C)
for Slab or Floor
Setting
Power Supply 24VAC ±10% 50/60 Hz 1.5 VA
Relay 24VAC, 2 A
Sensors NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C)
ß=3892
Included Floor Sensor (A3040079)
Optional Outdoor Sensor (A3060070), Universal Sensor
(A3060071) and Epoxy-coated Slab Sensor
(A3060072)
14

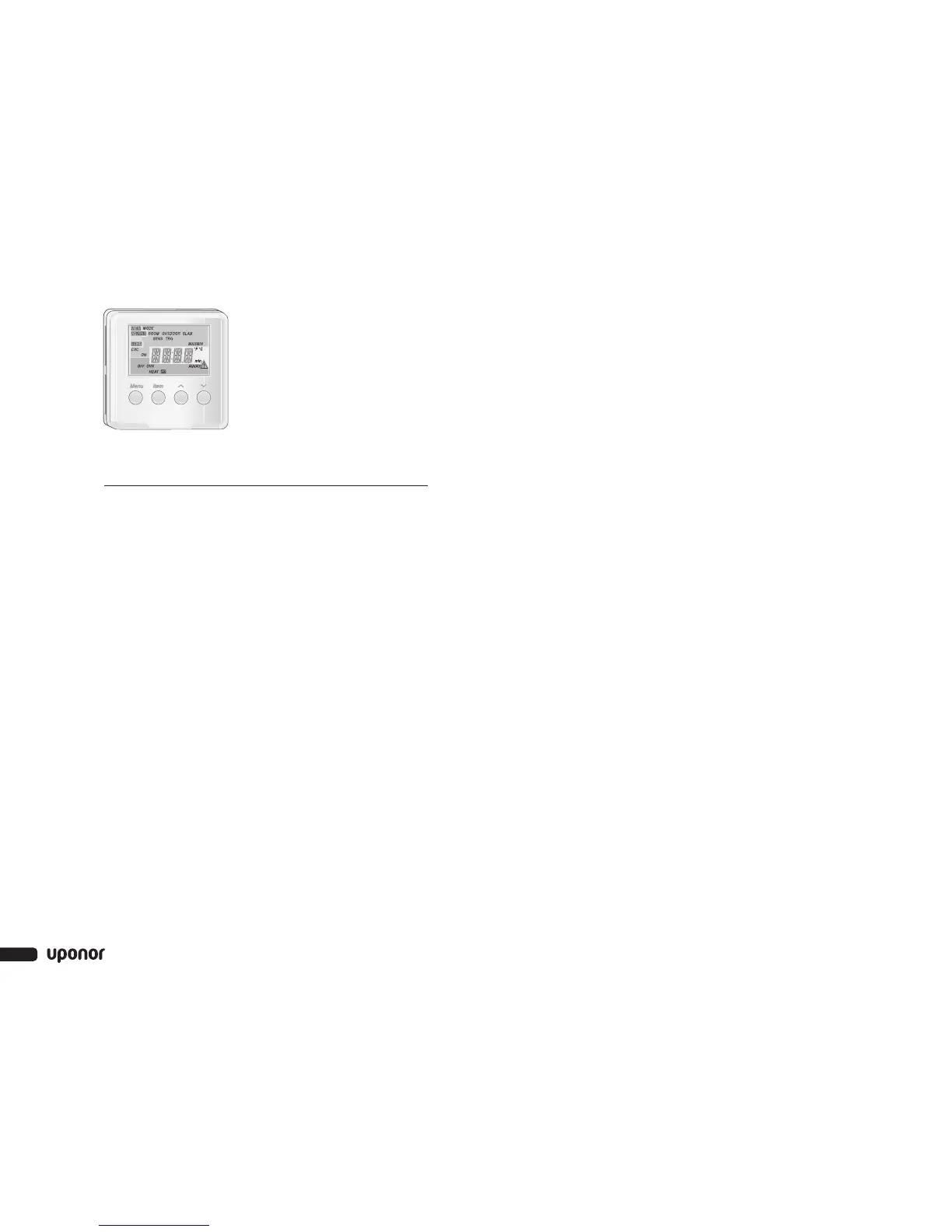

Figure 29: SetPoint 501s
