Uponor SetPoint 501 User Manual

Section 2
Installation
Getting Ready
Check the contents of this package. If any contents listed below are
missing or damaged, please contact your Uponor sales representative or
distributor for assistance.
• SetPoint 501 (part number A3040501) includes one controller, an
Installation and Operation Manual and a User Manual.
• SetPoint 501s (part number A3041501) includes one programmable
Setpoint Controller, one Floor Sensor (part number A3040079), an
Installation and Operation Manual and a User Manual.

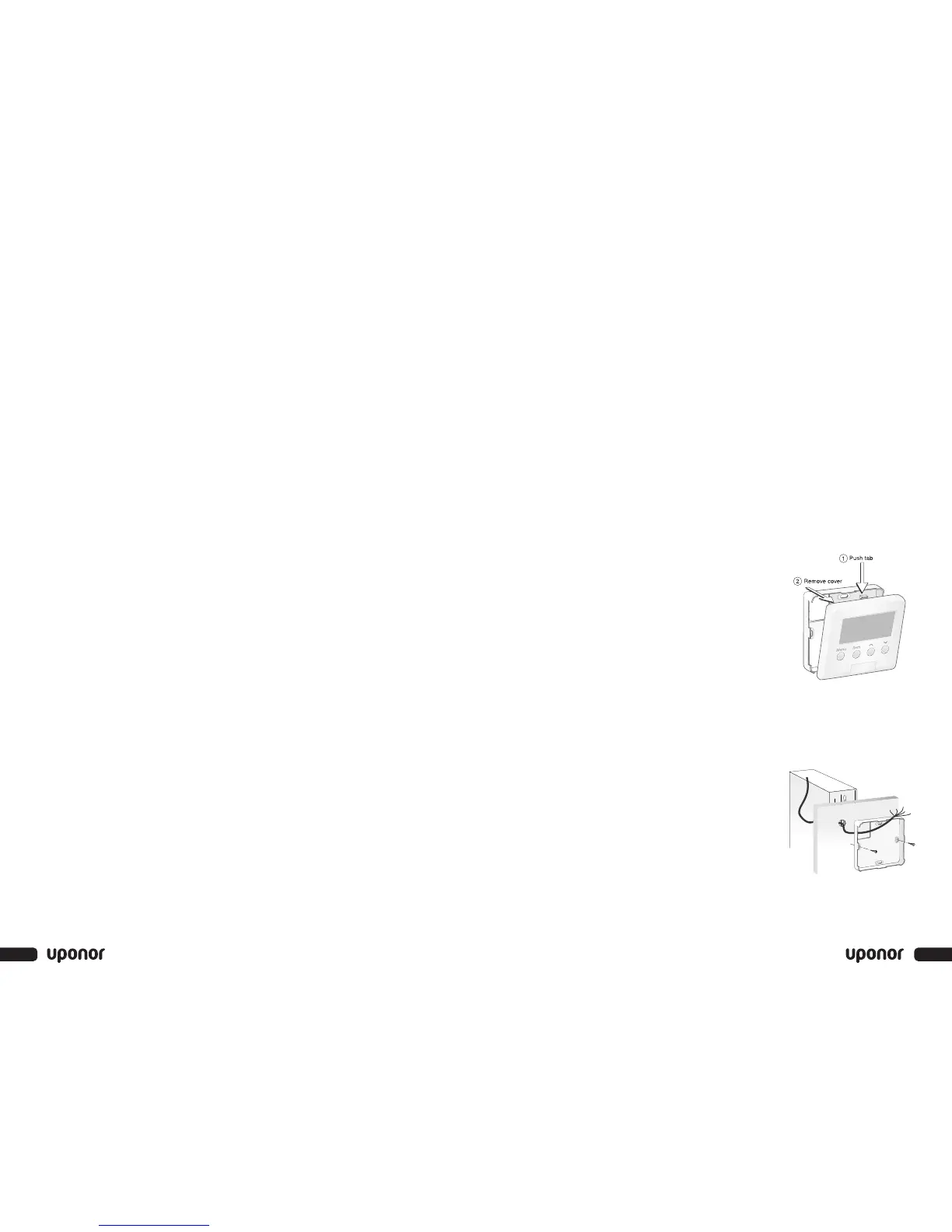

Removing the Front Cover
1. Place a screwdriver or similar object into the
small slot located in the top of the controller.
2. Push the screwdriver against the plastic tab
and pull the top of the front cover so that it
pivots around the bottom edge of the base.
(See Figure 1.)
Mounting the Base
1. Install the controller on an interior wall of
the desired zone approximately 5 feet (1.5m)
above the floor.
Note: Do not mount the controller in a
location that may be affected by
localized heat sources or cold drafts.
2. If necessary, install a draft barrier behind
the controller to prevent air from blowing
through the wiring hole and affecting the
controller’s built-in sensor.
3. Mount the base directly to the wall using
two #6 1-inch screws. (See Figure 2.)
4. Insert the screws through the mounting
holes, and fasten the base securely to the
wall. If possible, at least one of the screws
should enter a wall stud or similar surface.
3
2
Section 2 — Installation
.
.
#6 1" screws
Figure 1:
Removing the Front Cover
Figure 2:
Mounting the Base
