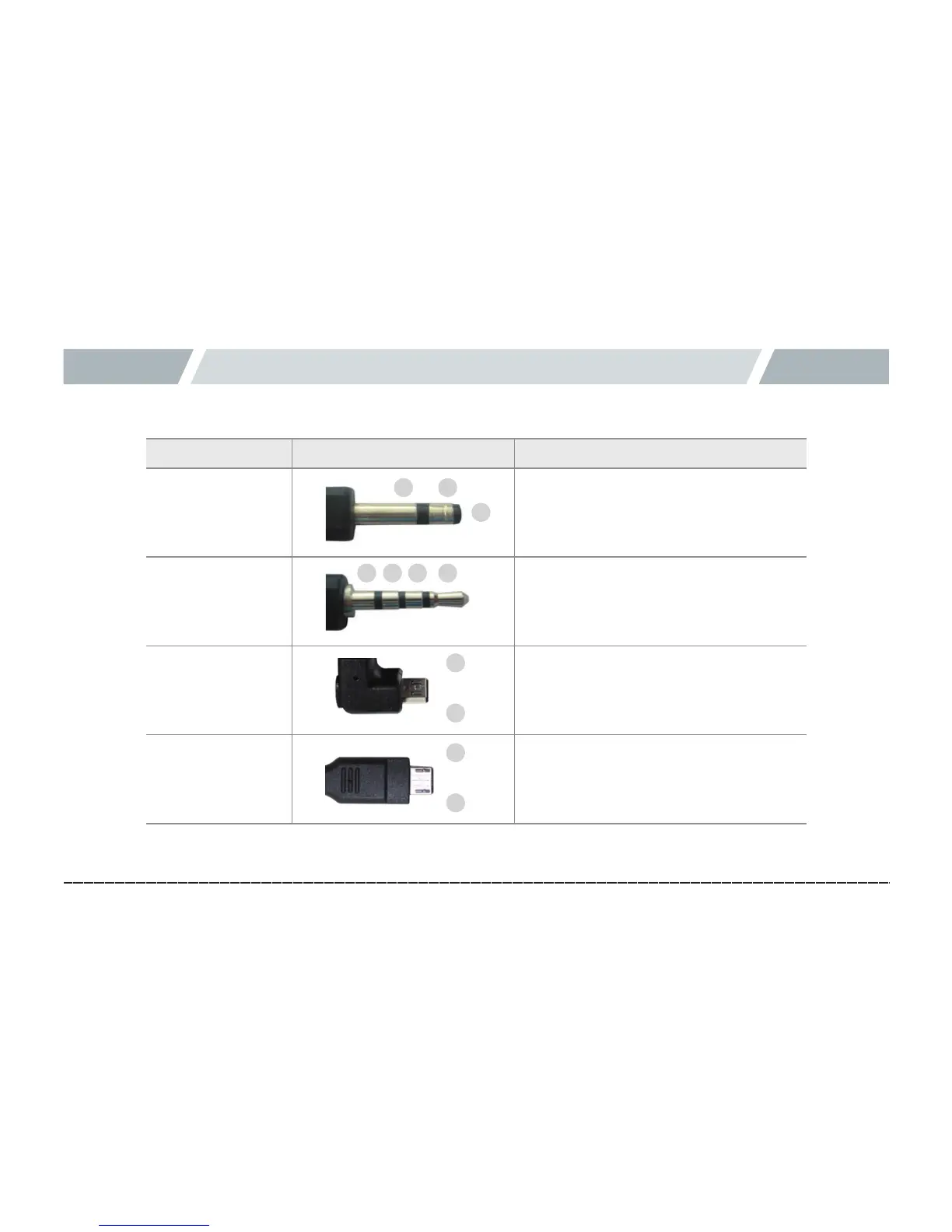

06. Name of each part (Socket pin arrangement)
Sockets Images of sockets pin arrangement
Power socket
(DC socket)
① GND ② ACC ③ BAT(B+)
GPS socket(2.5 pi)
① VCC(3.6~6V DC) ② Rx
③ GND ④ Tx(GPS Signal Output)
Front camera
connection part
(Micro USB 5P)
① VCC(5.0V DC) ② Video signal -
③ Video Signal + ④ Unused
⑤ GND
Rear camera
connection
part(Micro USB 5P)
① VCC(5.0V DC) ② Video signal -
③ Video Signal + ④ Unused
⑤ GND
1
2
1
1
1
5
5
234
3
◆ Socket pin arrangement
…… ……
