GENERAL FEATURES AND SYSTEM TYPES

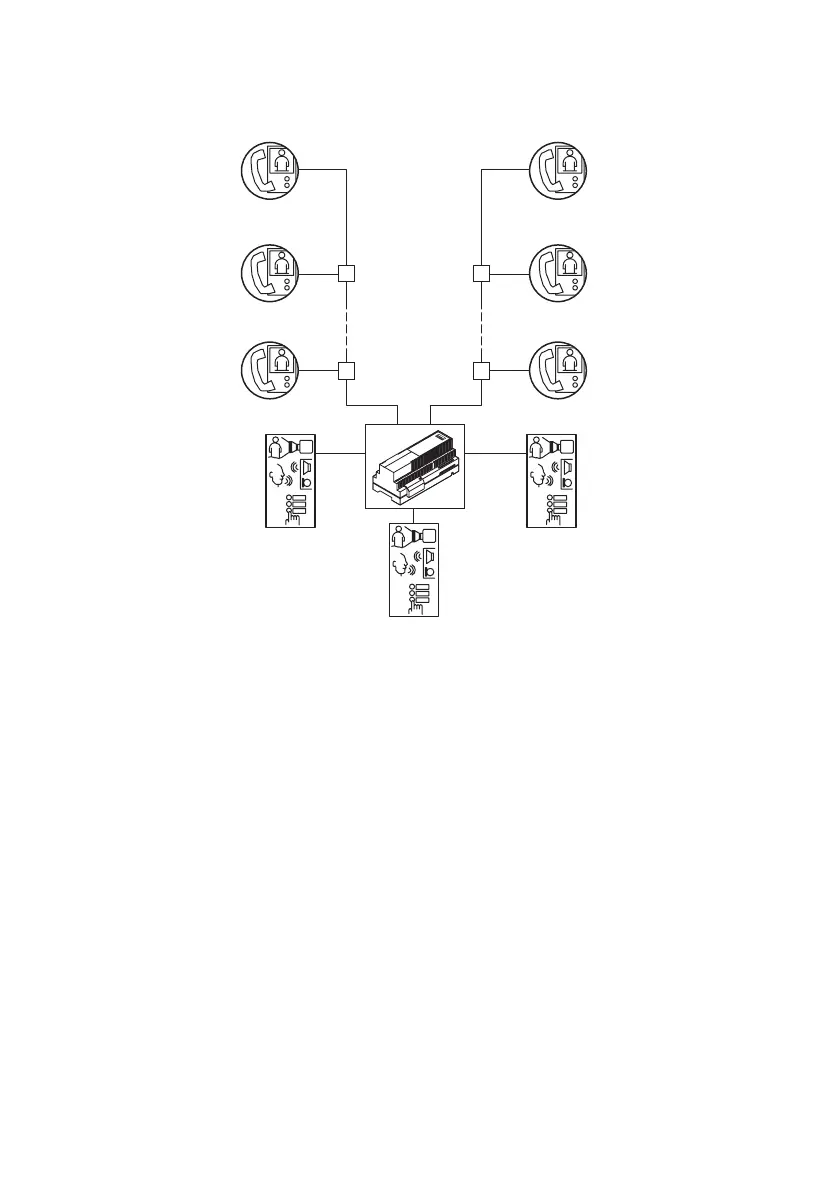

The 2GO! video door phone system can be used to make video door phone systems for up to 32 users and
with up to 3 calling stations using only two non-polarised wires throughout.
The features of the 2GO! video door phone system are:
• Use of only two non-polarised wires throughout the system.
• Single centralised power unit for connecting 5 lines.
• Video door phone indoor stations and door units powered directly by the two wires.
• Easy to install.
• Extension wiring using one-user distributor or in-out confi guration programmed directly on the terminals of
the devices.
• From 1 to 3 door units are managed in automatic switching or in 1 main and 2 secondary confi guration.
• Management of up to 32 indoor stations.
• Management of up to 4 indoor stations in parallel for each users.
• Maximum distance between camera and indoor stations: 150m.
• Easy programming using dip switches.
• Each device is equipped with switch for line termination confi guration.
• Video door phone unit with standard colour camera.
• Indoor sets with colour or black & white monitor.
• Standard fl oor call to all indoor stations with differentiated tone from door phone call.
• Auto-on function surveillance camera (up to 4 cameras).
• Programmable no-constraint intercom call to indoor stations.
• Differentiated call tones according to origin (from main, from secondary, from intercom indoor station).
• Five different tones selectable by user.
• Possibility of connecting a supplementary self-powered ringer or call repeater relay to the indoor station.
• Possibility of connecting one buttons add-on module to Atlantico six button door phones (for intercom
function), with door open LED and automatic door opener button/LED.
• Possibility of connecting calling modules with directory (in this case up to 62 users can be managed with
the addition of a second system power supply unit).
15
14
0
31
30
16
32
1
1
2
3
4
LINE
4
LINE
3
LINE
2
LINE1
LINE
0
TC TC
TC
