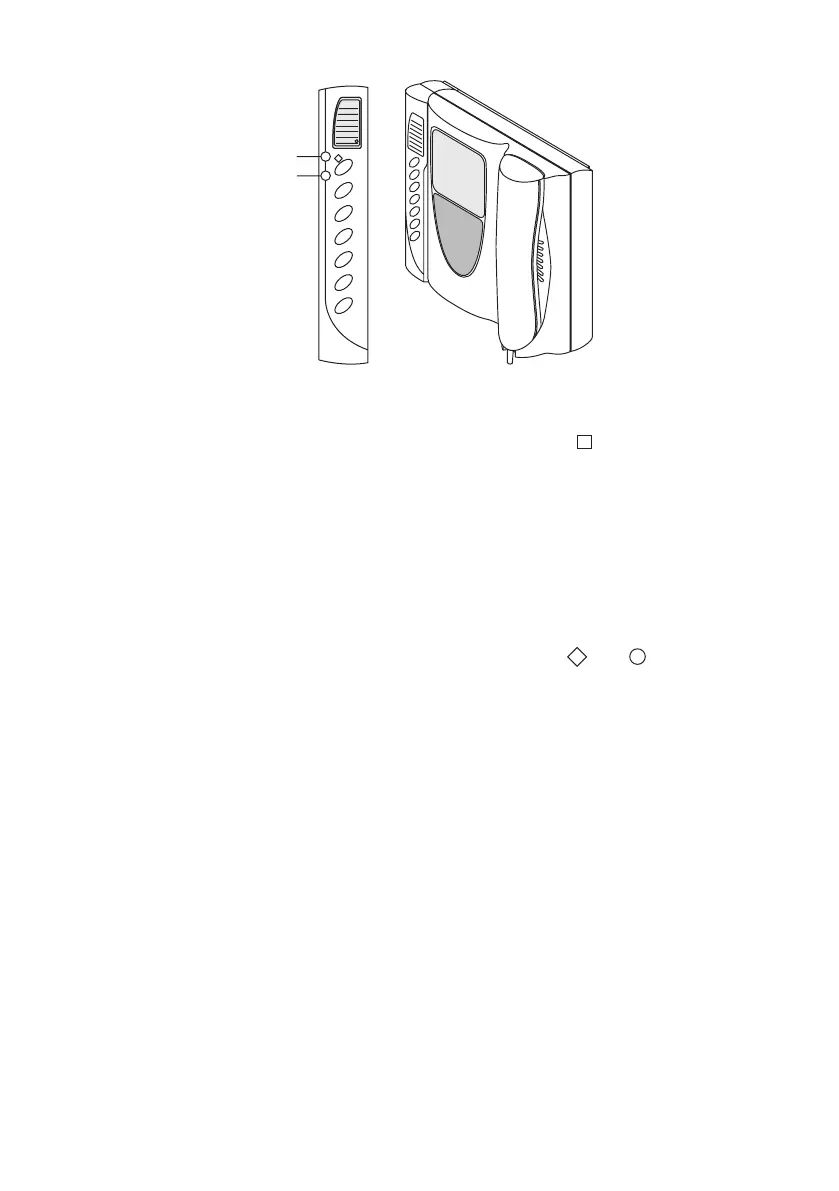

FUNCTIONS WITH 1082/96 ADD-ON FOR ATLANTICO VIDEO DOOR PHONES
AUTOMATIC DOOR OPENER FUNCTION
This function can be switched on and off by means of the dedicated button ( ) on the 1082/96 add-on. The
green LED will light up when the function is on. A door opener command is transmitted when a call from a
door unit is received. Program this function on one of the indoor stations only if there are several indoor
stations in parallel.
MASTER DOOR UNIT OPEN DOOR FUNCTION
The indoor stations can monitor the physical state of the Master door by connecting a sensor to the SP/GND
terminals. The red LED on the 1082/96 will light up when the door is open.
INTERCOM CALL FORWARDING
This function is similar to the basic function illustrated for the buttons
and . Six buttons can be
programmed for managing the same number of calls.
SYSTEM INSTALLATION
All devices must be set up and wired according to rules of best practice according to CEI standards. Devote
particular attention to power units and transformers: these must be arranged in suitable electrical panels and
equipped with suitably dimensioned protection and circuit breaker switches.
All devices in this system comply with EC directives in the matter of electromagnetic compatibility and
safety.
The system will ensure good immunity to interference only if the Urmet Domus Ref. 1082/90 (2 wires) wire
is used for bus lines.
In all cases, to improve interference immunity, do not arrange the system wires near 230V and 380V
power wires which generate strong electromagnetic fi elds.
The following problems whose frequency and severity cannot be foreseen may occur if these rules are not
respected:
• Data transmission errors between devices with consequent impossibility of making calls.
• Poor video quality: loss of details, double picture, etc.
• Video interference.
• Audio signal interference.
