sec.5
−−−−
23
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual
V5.011 Connect the wire for Self-insert function. In this case make a
jumper between terminals X2 and R3.

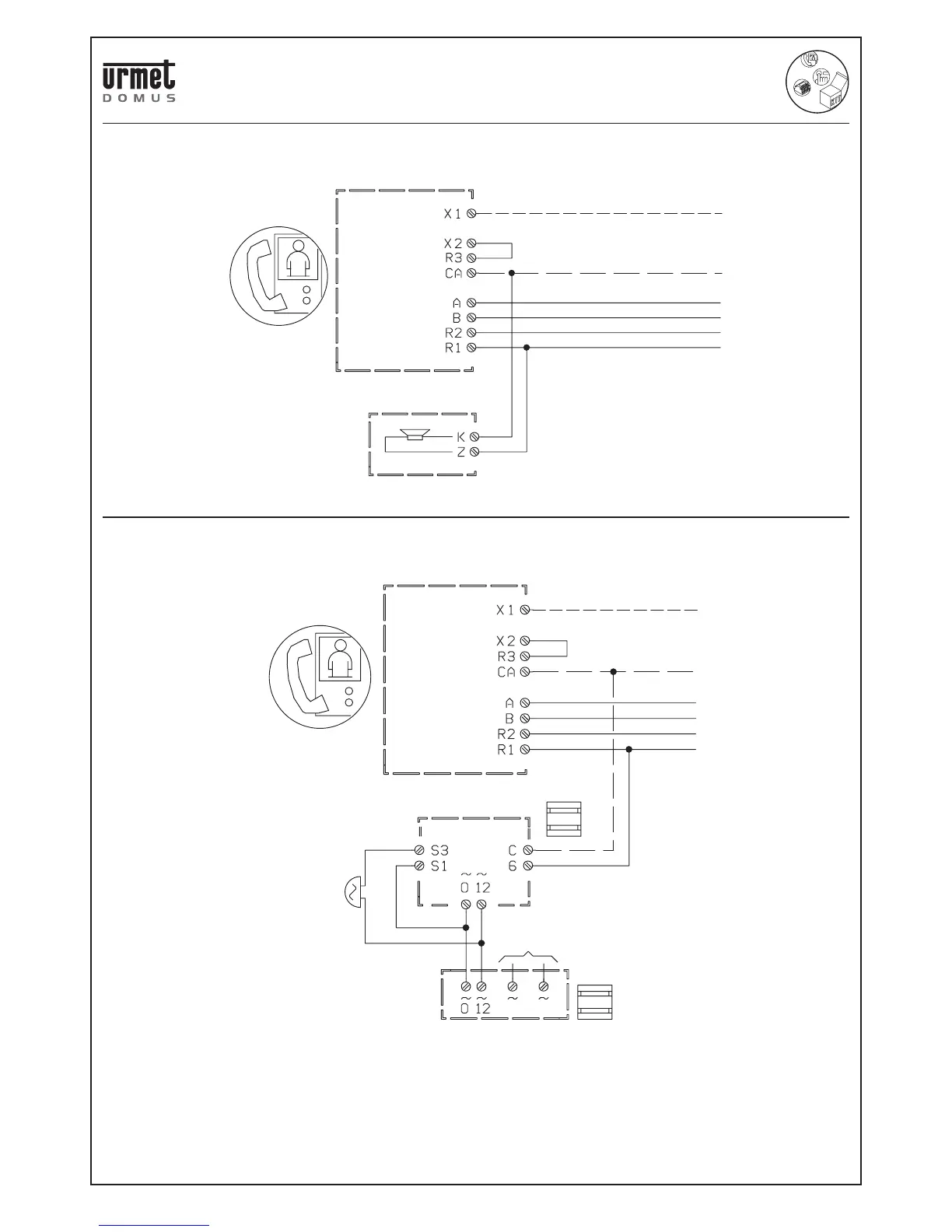

CONNECTION OF SUPPLEMENTARY RING Ref. 9854/41 IN PARALLEL TO
VIDEO DOOR PHONE CALL
CONNECTION TO CALL REPEATER RELAY FOR CONTROLLING A
SUPPLEMENTARY RINGER
SV102-2137D
(V5.011)
(V5.011)
Ringer 12V~
Line~
RINGER
Ref.9854/41
VIDEO DOOR PHONE
Mod.Artico
VIDEO DOOR PHONE
Mod.Artico
TRANSFORMER
Ref.9000/230
or
Ref.9000/110
RELAY BOX
Ref.788/52
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
