4
−−−−
sec.5
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual

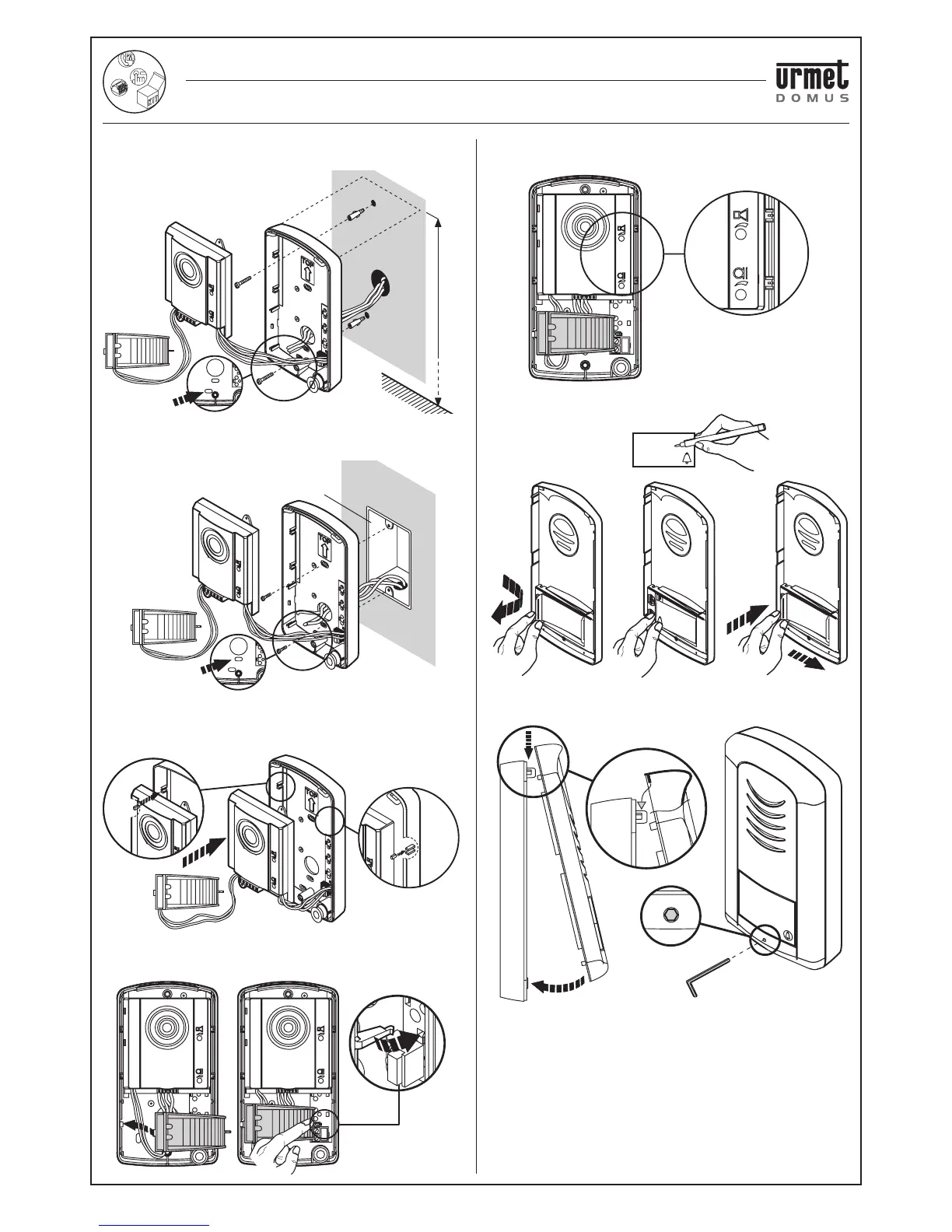

• Fasten the base onto a fl at wall at the height shown in the fi gure
using the bolts provided.
NOTE: the panels with plastic casing may also be fi xed in a fl ush-
mounting box Mod. 503 as shown below.
• Insert the door unit into the compartment in the based and connect
the wires (it is advisable to have approximately 40-45mm of wire
protruding from the wall).
• Fasten the name tag light circuit making the wires pass underneath
the support.
• Adjust volume. Volume is calibrated to optimal values during
production. Change the settings when needed only.
• Write the name on the name tag and insert in the housing.
• Insert the front part of the panel on the base and fasten it with the
socket head screw using the wrench (2mm) provided.
‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL
PANEL INSTALLATION
1,55 m ÷ 1,65 mm
Mod. 503
CLICK
Rossi
Rossi
CLICK
‘AUDIO TWO’ DOOR PHONE KIT WITH SMYLE PANEL
