SELF TAP SCREWS
Installation
MOUNTING:
1. After reading precaution, decide where you are going to install the unit. Also, see Fig.1.
2. Once the location has been determined, place the amplifier in position. Using a felt tip
pen or pencil mark the four holes to be drilled for mounting. NEVER use the amplifier
as a template for drilling. It is very easy to damage the amplifier surface in manner.
3. Remove amplifier. Drill four 3.5 m/m. Diameter holes into mounting surface on steel
panel. If you want mounting the MDF or wood panel, drill four 3.0m/m diameter holes
into mounting surface.
4. If possible, test the system operating before final mounting of the amplifier.
5. Mount the amplifier using the supplied 4 self threading screws.

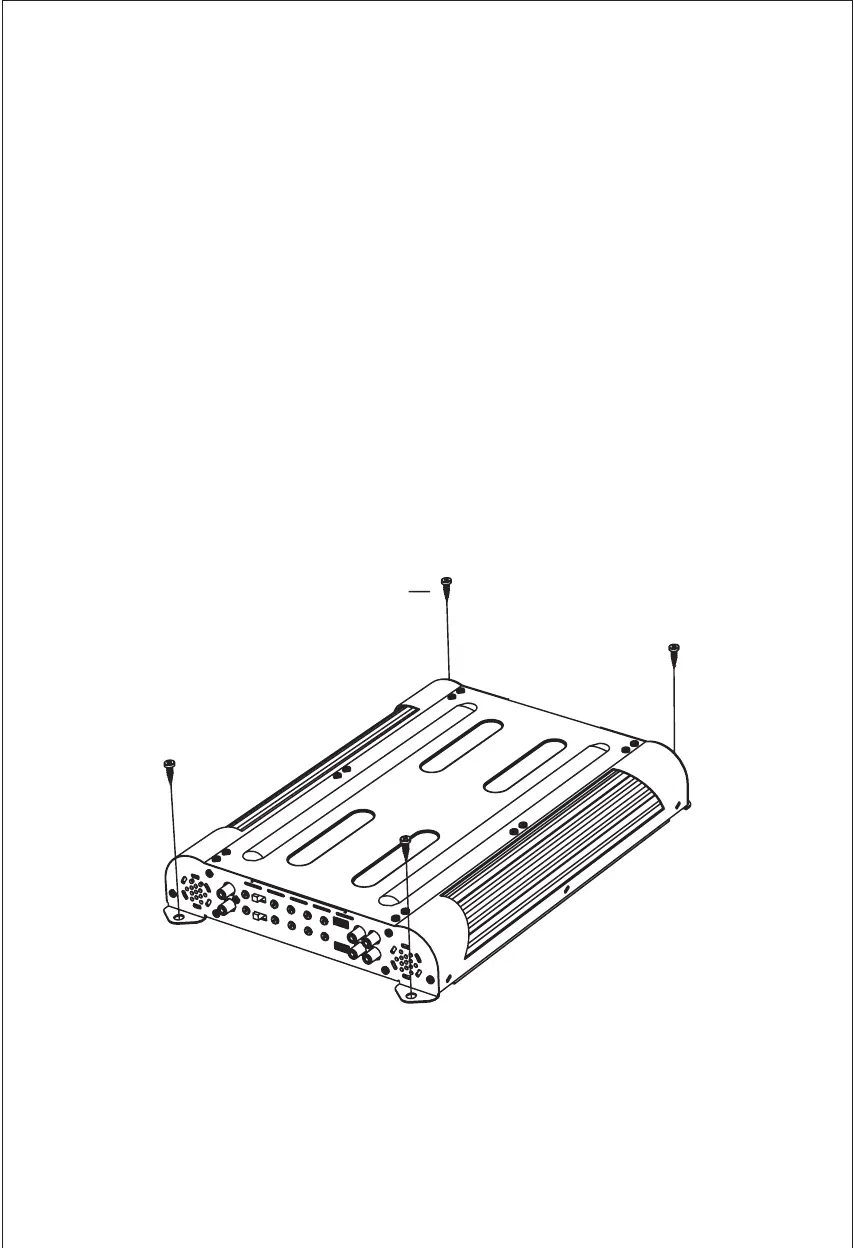

INSTALLATION DIAGRAM
3
Fig.3
