U-SAND FLOOR SANDER
BT700 MODEL
PARTS LIST

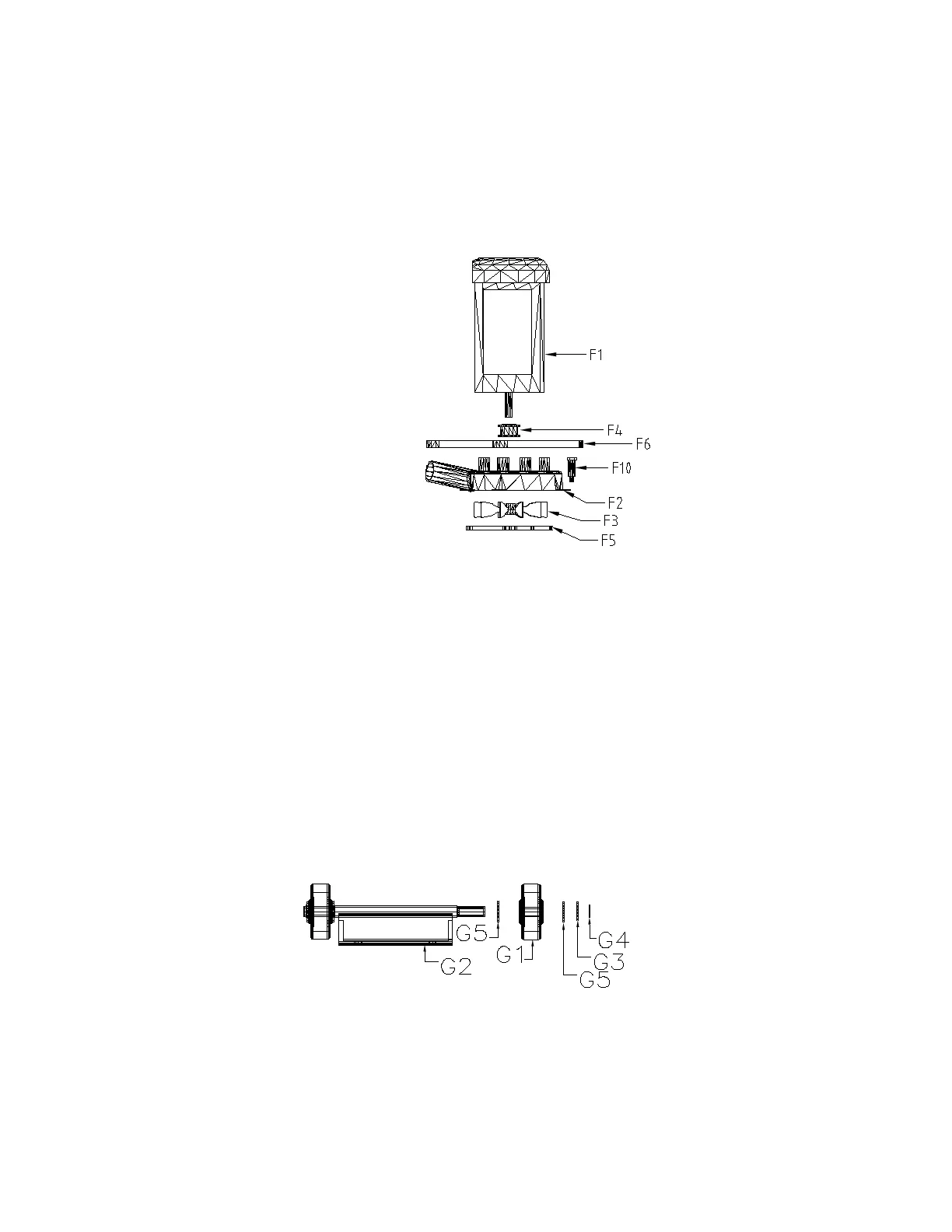

MT-AS-7 MOTOR ASSEMBLY
F1 Motor 3HP (Motor 3HP) (1)
F2 Fan Housing (CH103-146) (1)
F3 Impeller/Hub (MT-AS1) (1)
F4 Motor Pulley (US116-146-7) (1)
F5 Gasket (US-152) (1)
F6 Belt (PCB-146) (1)
F7 Cap Screw-Blower/Motor (HW-CS3/8) (4)
F8 Cap Screw-Impeller (HW-CS5/16) (1)
F9 Pulley Set Screw (HW-SS) (1)
F10 Spring Bolt-Blower (HW-3/8 Spring Bolt) (1)
F11 Wire Nuts (HW-WN) (3)
WH-ASP WHEEL ASSEMBLY
G1 3.5”Grey Wheels (WH-146P) (2)
G2 Wheel Bracket/Axle (Wh-AS1) (1)
G3 Wave Spring (HW-WS) (2)
G4 External Snap Ring (HW-ESR) (2)
G5 Flat Washer (HW-W1) (4)
