14
U-SAND FLOOR SANDER
BT700 MODEL
PARTS LIST

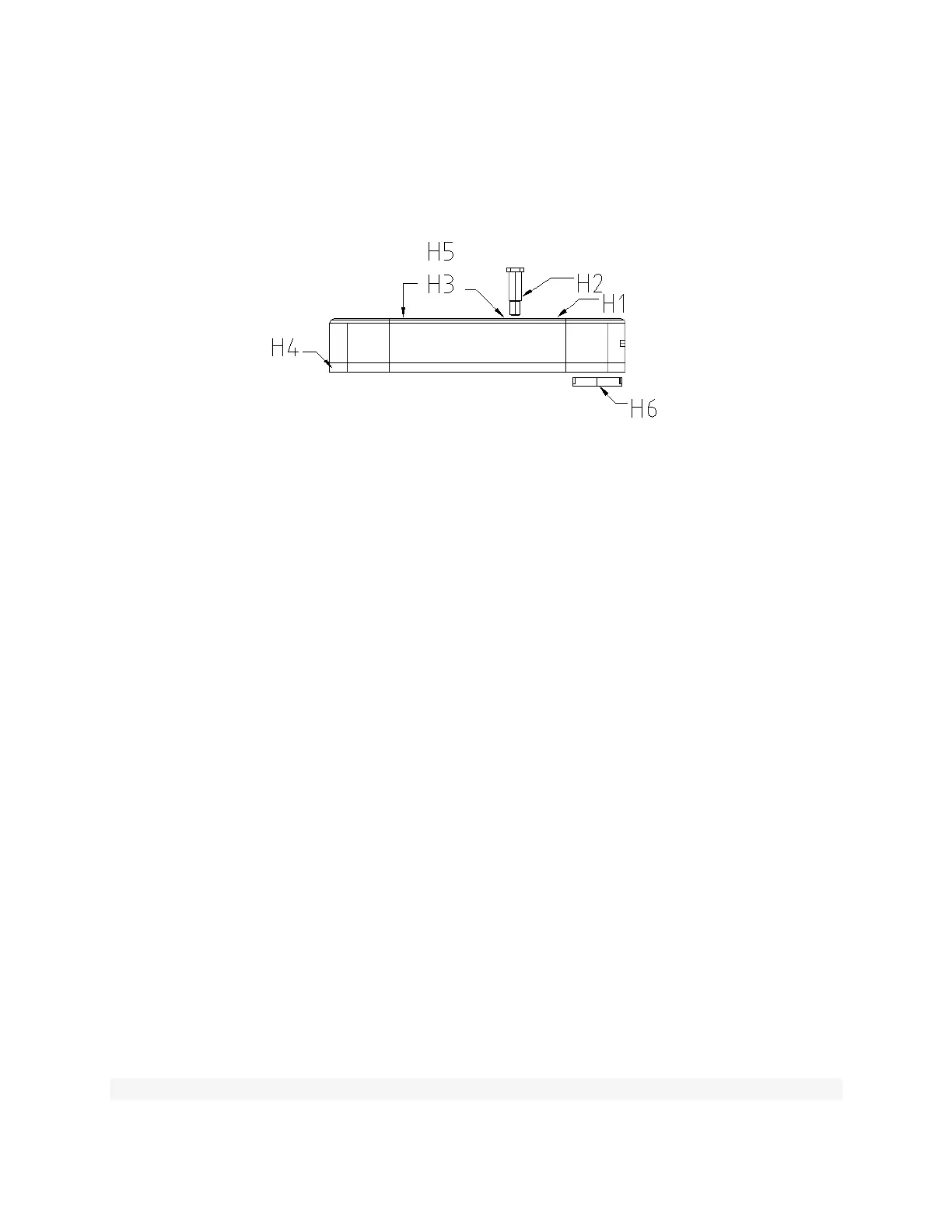

DP-AS-7 DECK PLATE
H1 Base Plate (CH101-146-7) (1)
H2 Counter Weight (US132-146) (1)
H3 Belt Tension Bolt (US-150) (1)
H4 Hex Cap Screw (HW-HCS) (2)
H5 Dust Skirt Attached (US115-146B) (1)
H6 Lock Washer (HW-LW) (2)
H7 Spindle Housing Nut (US102-146) (4)
BT700 SANDER
Nuisance Tag (US-143) (1)
American Flag (LABL-FLAG) (1)
Rivets (HW-RVT) (10)
Orange Bag Safety (US148) (1)
Belt Cover (CH02-146-7) (1 set 2 pc)
Motor Clamps Cap Screws (HW-CS1/4) (6)
Flat Washer (Hw-FW/16) (6)
Lock Nut-Motor (HW-CLN) (1)
Cord Restraint (US134-146) (1)
Flat Washer (HW-FW3/8) (4)
spring (HW-SP3/4) (2)
ACCESSORY ITEMS BT700
Dust Skirt (US115-146) (1)
Backer Pads (BP6) (4)
Manual (US-M) (1)
50’ Yellow Cord (PC-146-FLP-7) (1)
US-VBAS14 Vacuum Bag Assembly (1) Black w/yellow print
